24-pin to 16-pin adaptor cable for Fujitsu motherboard

16-pin Fujitsu Adaptor

0 reviews Write a review
Brand:Vanda Trading
Product Code: 16-pin Fujitsu Adapter
Product available in stock : 25

  • £21.50

  • 2 or more £20.00
rightbanner
2 year warranty
on all new Power Supply Units
  • Free UK shipping:
    On ALL products
  • Fast shipping:
    Usually within 1 day
  • Worldwide shipping:
    Order from anywhere
  • 24/7 support:
    Contact us by E-mail
  • 100% satisfaction:
    30-day return policy
  • 2-year warranty:
    On ALL PSUs
16-Pin Fujitsu Adaptor Cable 24-Pin to 16-Pin

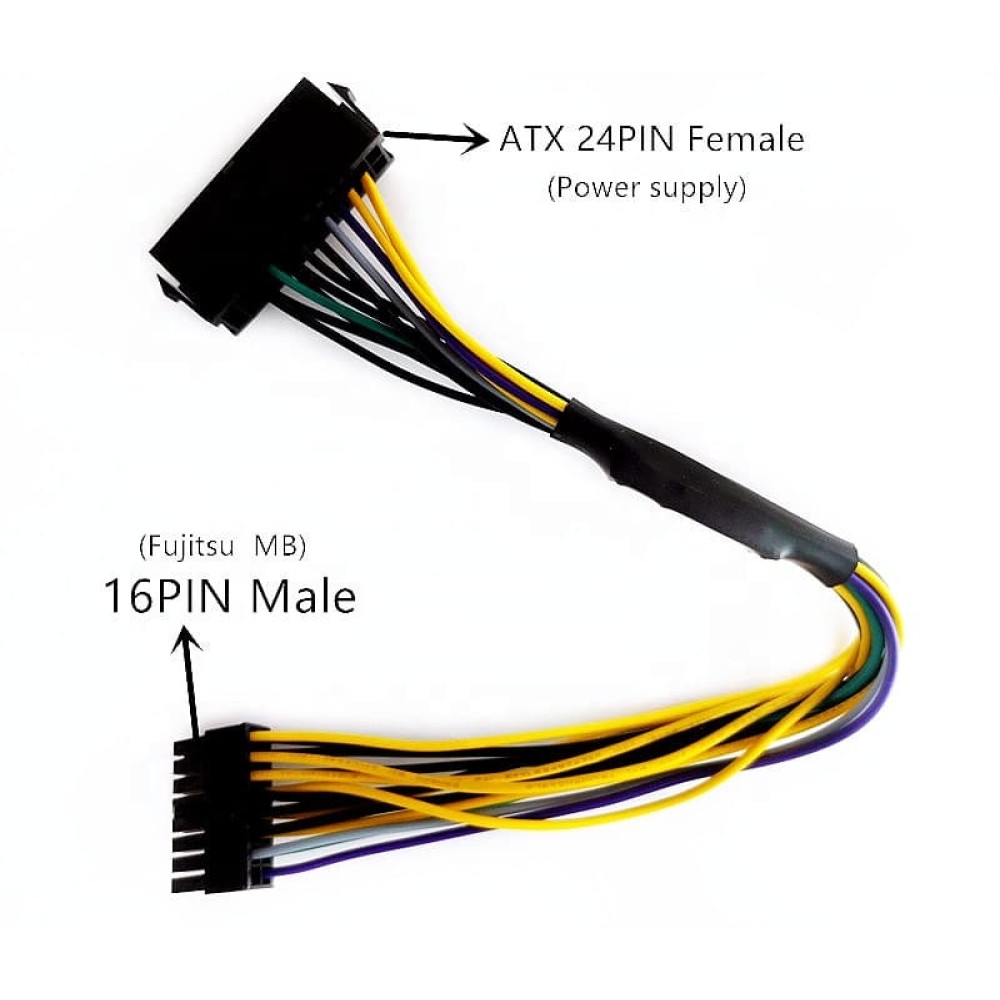

This adaptor cable connects any standard ATX PSU with a 24-pin connector to Fujitsu motherboards that require the proprietary 16-pin connector.

Compatible Systems
Fujitsu Esprimo Desktops
Fujitsu Celsius Workstations
Fujitsu Primergy Servers
D3xxx Series Motherboards
Any Standard 24-Pin ATX PSU
Desktop & Workstation Replacements
Key Features
24-Pin to 16-Pin Adaptor24-pin connector on the PSU side, proprietary 16-pin on the motherboard side

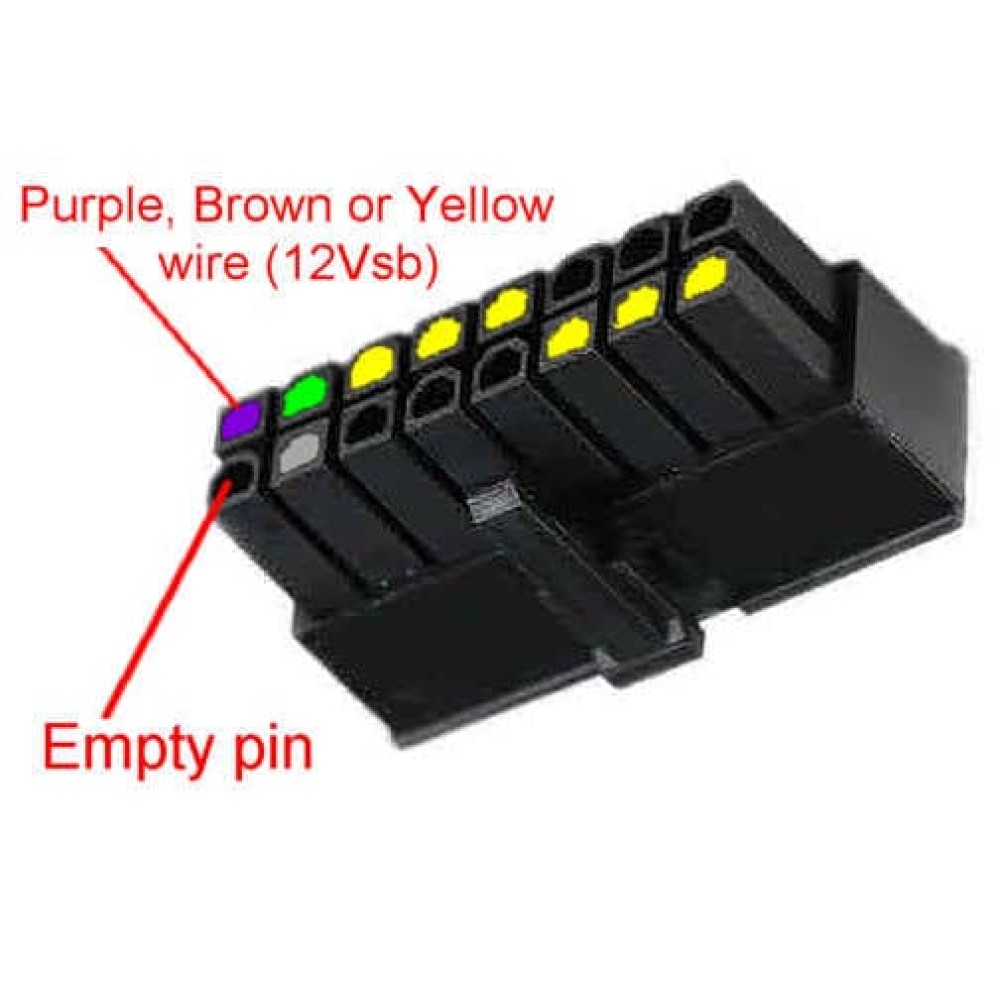

Special +11VsB WireIncludes the extra 11-volt standby wire Fujitsu boards require
Supports up to 1000W PSUsRated for high-wattage power supplies
34cm LengthDirect plug-in fit, no soldering or modification required
UL1007 18AWG WireQuality-rated cable construction
LightweightJust 65g, minimal cable bulk inside your case
About the small white 8-pin connector: the original Fujitsu PSU may come with a small flat white 8-pin connector with 3 wires. This connector is for the fan only and is not required when using this adaptor with a standard replacement PSU.
Not sure if this is the right adaptor? Use the Compatibility List tab to search for your model, or contact us with your old PSU model number and a photo — we're happy to help find the right match.
Technical Specifications

Full specifications for this product, verified against manufacturer data.

Specification
Material UL1007, 18AWG.
Product size & weight 34cm long / 65gr.
Connectors
Other Connectors 24-pin connector (PSU side), 16-pin connector (motherboard side).
More Info
Package size & weight 25x20x2cm / 100gr.
Product Condition Brand new.
Return Return within 30 days if unwanted.
Made in China.
Shipped from United Kingdom.
Remarks With special +11VsB (11-volt standby) wire, Support 1000W PSUs. The original Fujitsu PSU may come with a small flat white 8pin connector with 3wires. This connector is for the fan and is not required with other PSUs.
Need help confirming this is the right product for your system? Contact us with your existing part number or a photo and we will advise.
16-Pin Fujitsu Adaptor Compatibility List

Browse compatible motherboards, computers, and original PSU part numbers. Use the search box to find your model instantly.

Compatible Motherboards 34
  • S26361-D3222-A101
  • 10601751624
  • 10601755755
  • D3041-A11 GS 3
  • D3061-A13 GS 1
  • D3062-A13
  • D3120-A10 GS 1
  • D3161-A12 GS 1
  • D3162-A12 GS 2
  • D3171-A11 GS 1
  • D3220-A12 GS 2
  • D3221-A12 GS 2
  • D3221-A12-GS2
  • D3222-A12 GS 2
  • D3227-A12 GS 2
  • D3230-A11 GS 1
  • D3348-A13
  • D3373
  • D3400-A11 GS 4
  • D3417-A21 GS2
  • D3417-A21 GS4
  • D3502A
  • D756 E90+
  • D956 E85 D3402-A11
  • E920 D3222-A12
  • P556 E85+ D3400-A11 GS 3
  • P956 D3402-A11
  • S26361-D3183-A14
  • S26361-D3221-A12
  • S26361-D3222-A12-2
  • S26361-D3222-E101
  • S26361-D3222-E12
  • S26361-D3222-L101
  • S26361-D3222-L12
And more...
No matching motherboards found.
Compatible Computers 20
  • Fujitsu P720
  • Fujitsu Celsius W420 Workstation
  • Fujitsu Celsius W510 Workstation
  • Fujitsu Celsius W520 Workstation
  • Fujitsu Celsius W530 Workstation
  • Fujitsu Celsius W550N Workstation
  • Fujitsu Esprimo E720
  • Fujitsu Esprimo E920 (with D3222)
  • Fujitsu Esprimo P420
  • Fujitsu Esprimo P510
  • Fujitsu Esprimo P520 (with D3220)
  • Fujitsu Esprimo P521 (with D3222)
  • Fujitsu Esprimo P556
  • Fujitsu Esprimo P558
  • Fujitsu Esprimo P757
  • Fujitsu Esprimo P920 (with D3222)
  • Fujitsu Esprimo P956
  • Fujitsu Esprimo P957
  • Fujitsu Primergy TX100-S3
  • Fujitsu Primergy TX1320-M3
And more...
No matching computers found.
Original PSUs With This Connector 7
  • DPS-250AB-62AA
  • DPS-250AB-62A
  • DPS-250AB-82A
  • DPS-300AB-56A
  • S26113-E511-V50-01
  • S26113-E563-V50-01
  • S26113-E566-V50-01
And more...
No matching PSUs found.
Can't find your model? This list covers the most common compatible units but is not exhaustive. Contact us with your motherboard or PSU model number and a photo and we will confirm compatibility for you.
