| Brand: | FSP |
| Product Code: | Dell AC305E-SO Replacement PSU |
High-quality branded 300-watt Power Supply Unit (PSU)
suitable for the Dell computers in our compatibility list.
This PSU is not the original Dell PSU. It is a reliable
replacement PSU.
Some PSU such as N230P-00 come with a rectangular 6pin (5 wires) connector. It can be ignored but you may need to order our additional SATA or Molex adaptors if required.
Some PSU do not come with the -12V blue wire in
the main connector. Our PSU comes with it. This blue wire can be ignored if
your PC does not require it.
Press "CTRL + F" to find your PSU or PC in the lists below or contact us with your query or product picture.
| This PSU replaces the following PSUs: | This PSU is compatible with the following computers: |
AC305AM-00 AC305E-S0 Dell 02CM18 H2309P-00 H305P-02 H305P-03 L230N-00 L305E-01 L305P-03 MC633 N230N-00 N230P-00 N8372 NC905 NPS-230DB A P8407 PC357 R8042
And more… | 0D326T D326T OptiPlex 360 OptiPlex 760 OptiPlex 760 OptiPlex 780 OptiPlex 780 MT OptiPlex 960 MT P192M Dimension 3100 Dimension E310 Dimension 5150 Optiplex 210L Optiplex GX520 Optiplex 210L Optiplex 320 Optiplex 330
Optiplex GX520
And more…. |
| Specification | |
| Model Number | ATX-300PNF replacement PSU for AC305E-SO |
| AC Input | 230Volt. Only suitable in 230V countries. Check your requirements. |
| Power Output | 300 Watt |
| PSU type | PS2 PSU. |
| Form Factor | ATX |
| Material | Metal Casing |
| Colour | Grey |

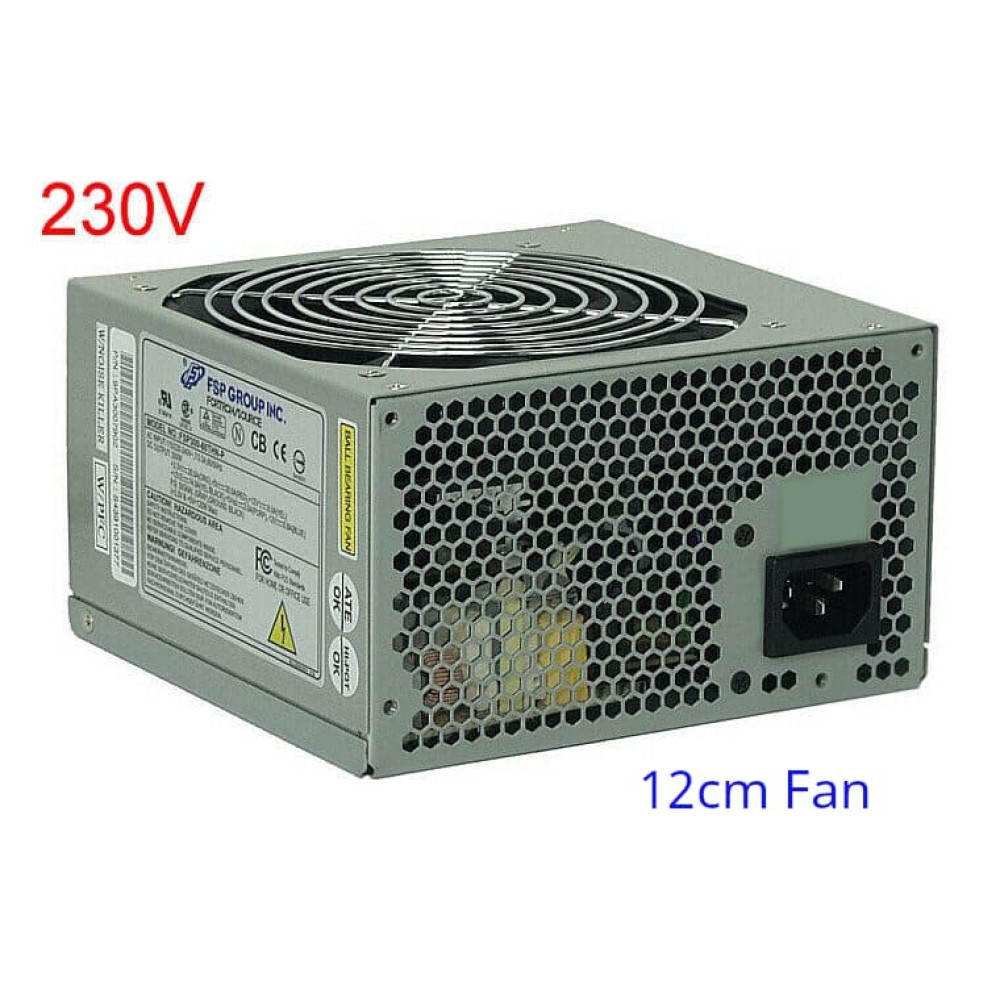

| Ventilation | 1x 12cm fan. The original PSU comes with a 9cm fan. Our PSU comes with a more efficient and quieter 12cm fan. |
| Safety Standards | Global approved: RU, CSA, TUV, N, CB, CE, Gost-R |

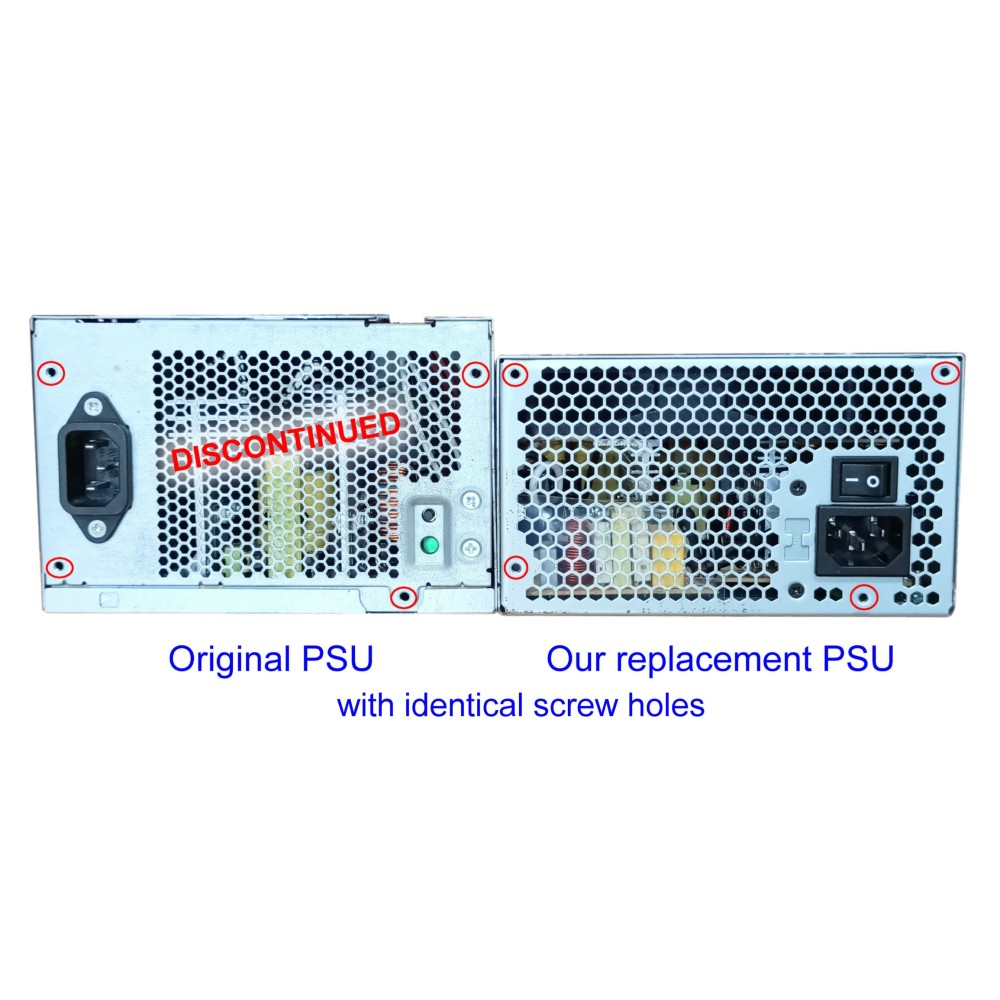

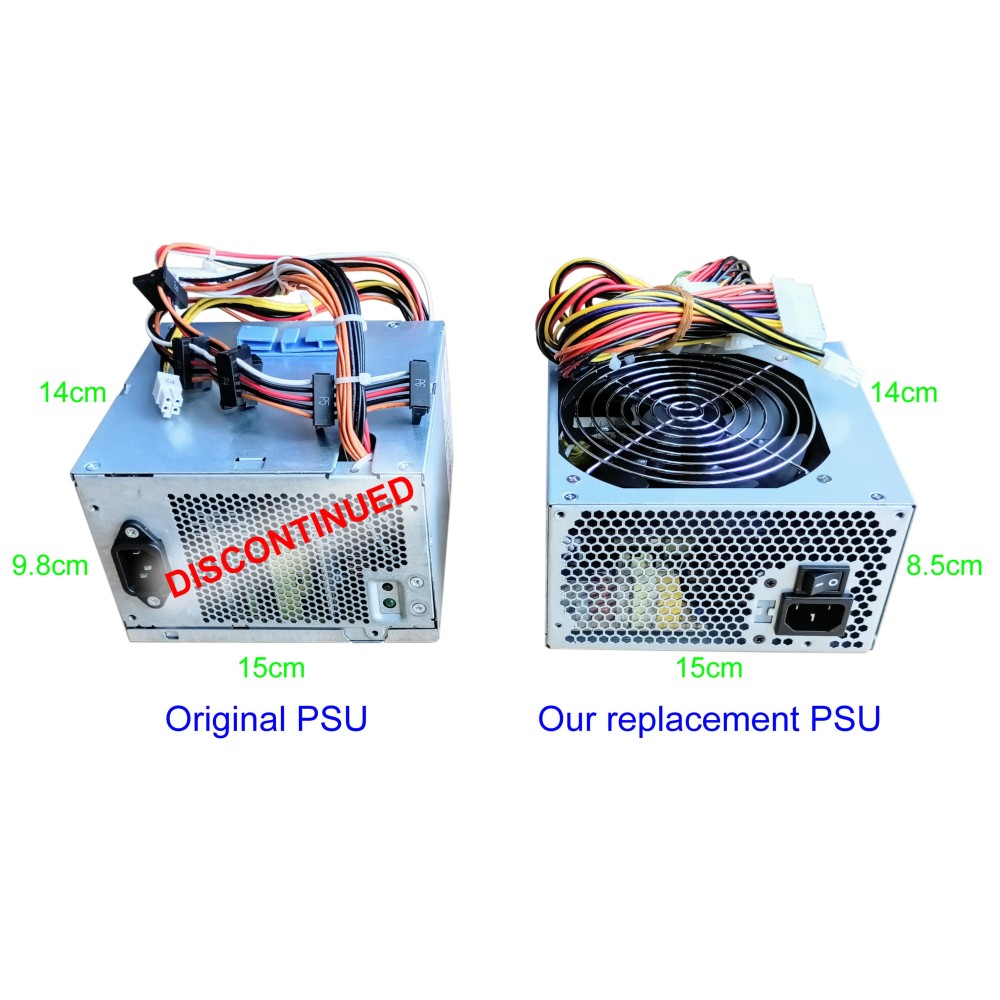

| Product size & weight | 8.5 x 14 x 15 cm / 3.35 x 5.51 x 5.9 inch / 1.8kg. The original PSU measures 9.8 x 14 x 15 cm but the screw fittings are the same. |
| Connectors | |
| 20/24-pin ATX | 1x 24pin connector |
| Molex | 4x Molex connectors. Order additional SATA or Molex connectors if required. |
| SATA | 1x SATA connectors. Order additional SATA or Molex connectors if required. |
| Floppy (Berg) | 1x Floppy Drive Berg connector. |
| 4-pin CPU | 1x 12V 4pin P4 connector. |
| DC Output | |
| +12V1 | 16A |
| +12V2 | 16A |
| +5V | 20A |
| +3.3V | 20A |
| +5Vsb | 2.5A |
| -12V | 0.8A. The original does not include this -12V blue wire. It can be ignored. |
| -5V | N/A |
| More Info | |
| Package size & weight | 25 x 20 x 10 cm / 9.8 x 7.8 c 3.9 inch / 2kg |
| Product Condition | Brand new |
| Warranty | 1 year standard warranty + 1 year FREE extended warranty = 2 year warranty. |
| Return | Return accepted within 30 days if unwanted. |
| Made in | China |
| Shipped from | United Kingdom |
| Remarks | Our PSU is NOT an original DELL PSU. It is a branded, suitable replacement PSU. Contact us with your old PSU model number and picture if you require assistance in finding a suitable replacement. It is advisable to test your old PSU before purchasing a new one (see last picture). Please order additional Molex or SATA connectors to match your requirements. Some PSU such as N230P-00 come with a rectangular 6pin (5 wires) connector. It can be ignored but you may need to order our additional SATA or Molex adaptors if required. |
