| Brand: | FSP |
| Product Code: | Proliant MicroServer 1U PSU |
High-quality branded 270 watt Power Supply Unit (PSU) suitable for HP Proliant MircoServers N36L, N40L, N54L, G7, G8 and more...
Replaces PSU DPS-150TB and more.
Press "CTRL + F" to find your PSU or PC in the lists below or contact us with your query or product picture.
This PSU replaces the following PSUs: 620827-001 630295-001 708245-425 714768-101 714770-101 724496-001 724497-001 DPS-150AB-5A DPS-150TB DPS-150TBA DPS-200PB-189A And more... | This PSU is compatible with the following computers: HP ProLiant Microserver N36L HP ProLiant Microserver N40L HP ProLiant Microserver N54L HP ProLiant Microserver G7 HP Proliant MicroServer G8 And more... |
| Specification | |
| Model Number | FSP270-60LE |
| AC Input | Full range 110 - 230Volt. Suitable worldwide without modification or manual setting. |
| Power Output | 270 Watt |
| PSU type | 1U Flex PSU. |
| Form Factor | Micro ATX |
| Material | Metal Casing |
| Colour | Grey |
| Ventilation | 1x 40mm fan at rear (near cable exit). Some similar PSUs come with the fan at the front (near the power socket). The airflow in both types of PSUs is exactly the same: the hot air from the PC and the PSU is expelled efficiently via the vent holes. |
| Safety Standards | Global approved: RU, CSA, TUV, N, CE, BSMI, CCC, FCC |
| Efficiency Level | 80 Plus Bronze |

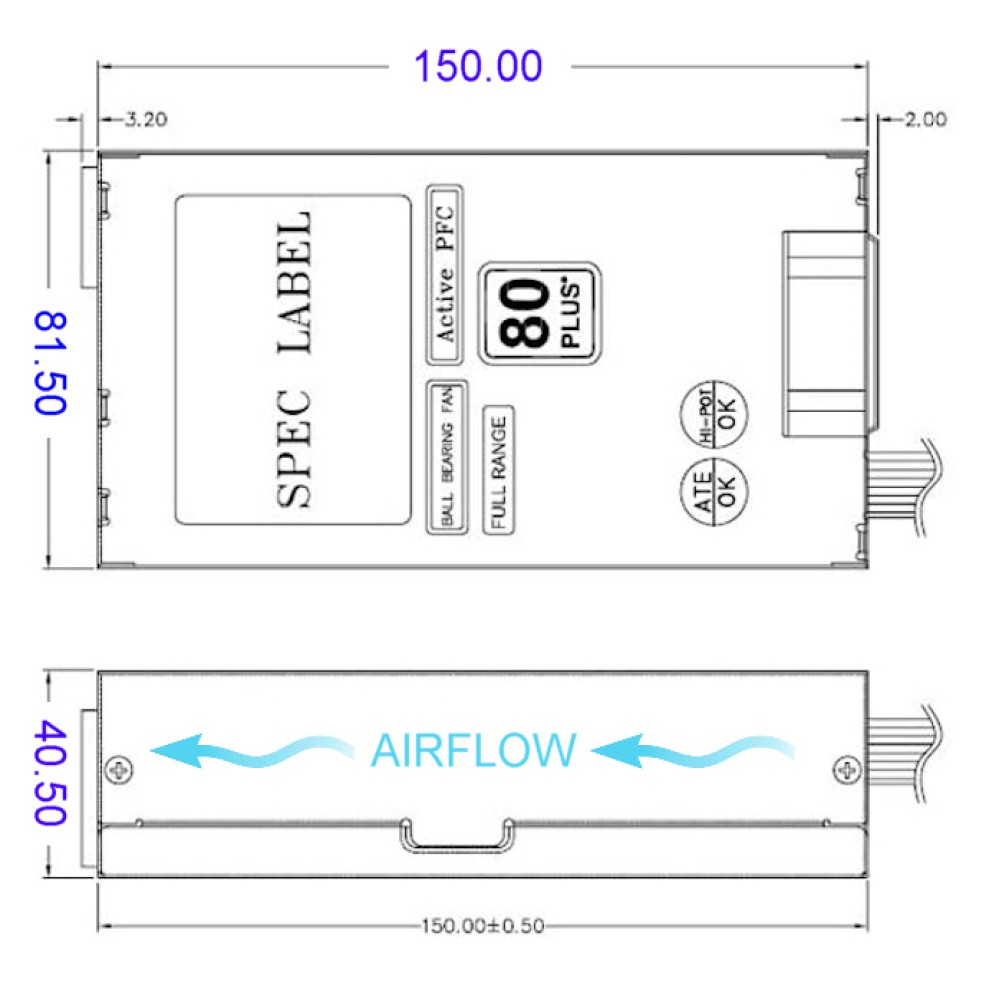

| Product size & weight | 4 x 8 x 15 cm / 1.57 x 3.15 x 5.9 inch / 0.8kg |
| Other | With Active PFC and Ball bearing cooling fan. |
| Connectors | |
| 20/24-pin ATX | 1x (20+4) pin connector suitable for Motherboards with 20 or 24 pin socket. (41cm long). |
| Molex | 5x Molex connectors. (39cm long). |
| Floppy (Berg) | 1x Floppy Drive Berg connector. (67cm long). |
| 8-pin (4+4) CPU | 1x (4+4) pin 12V connector suitable for boards with 4pin or 8pin CPU socket. (46cm long). |
| 6 pin PCI-E | 1x 6 pin PCI-E connector. (43cm long). |
| 8-pin (6+2) PCI-E | Connector NOT included. Order an optional 8 pin (6+2) pin connector if required. |
| DC Output | |
| +12V1 | 16A |
| +12V2 | 10A |
| +5V | 18A |
| +3.3V | 16A |
| +5Vsb | 2.5A |
| -12V | 0.8A |
| More Info | |
| Package size & weight | 30 x 20 x 10 cm / 11.8 x 7.8 c 3.9 inch / 1kg |
| Product Condition | Brand new |
| Warranty | 1 year standard warranty + 1 year FREE extended warranty = 2 year warranty. |
| Return | Return accepted within 30 days if unwanted. |
| Made in | China |
| Shipped from | United Kingdom |

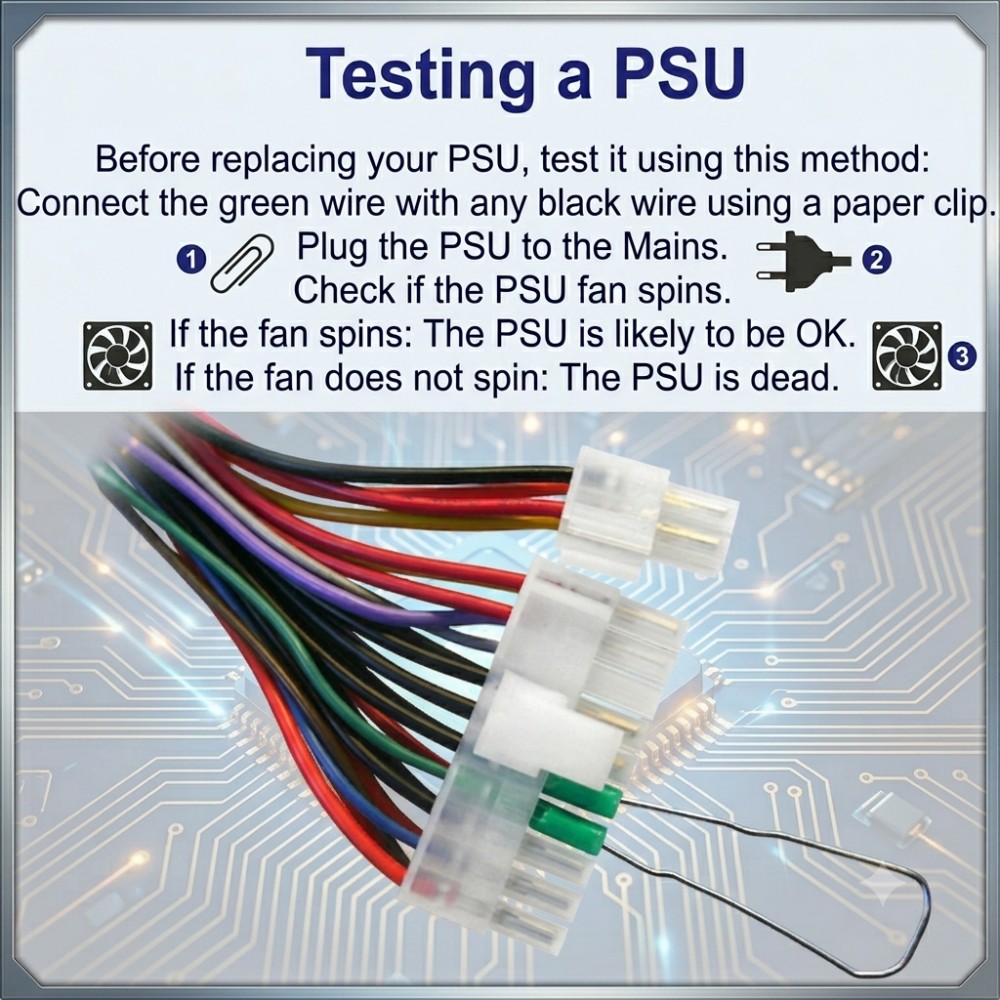

| Remarks | Contact us with your old PSU model number and picture if you require assistance in finding a suitable replacement. It is advisable to test your old PSU before purchasing a new one (see last picture). |
