| Brand: | FSP |
| Product Code: | FSP270-60LE |

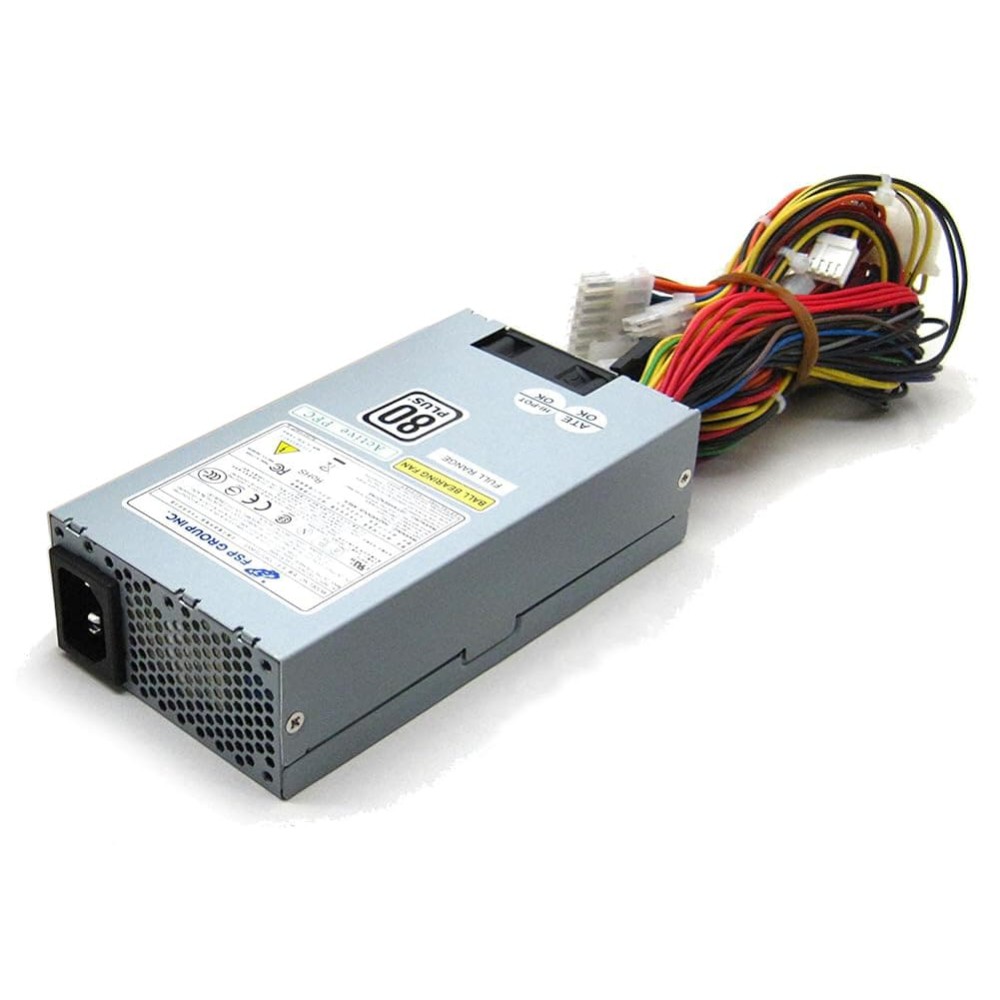

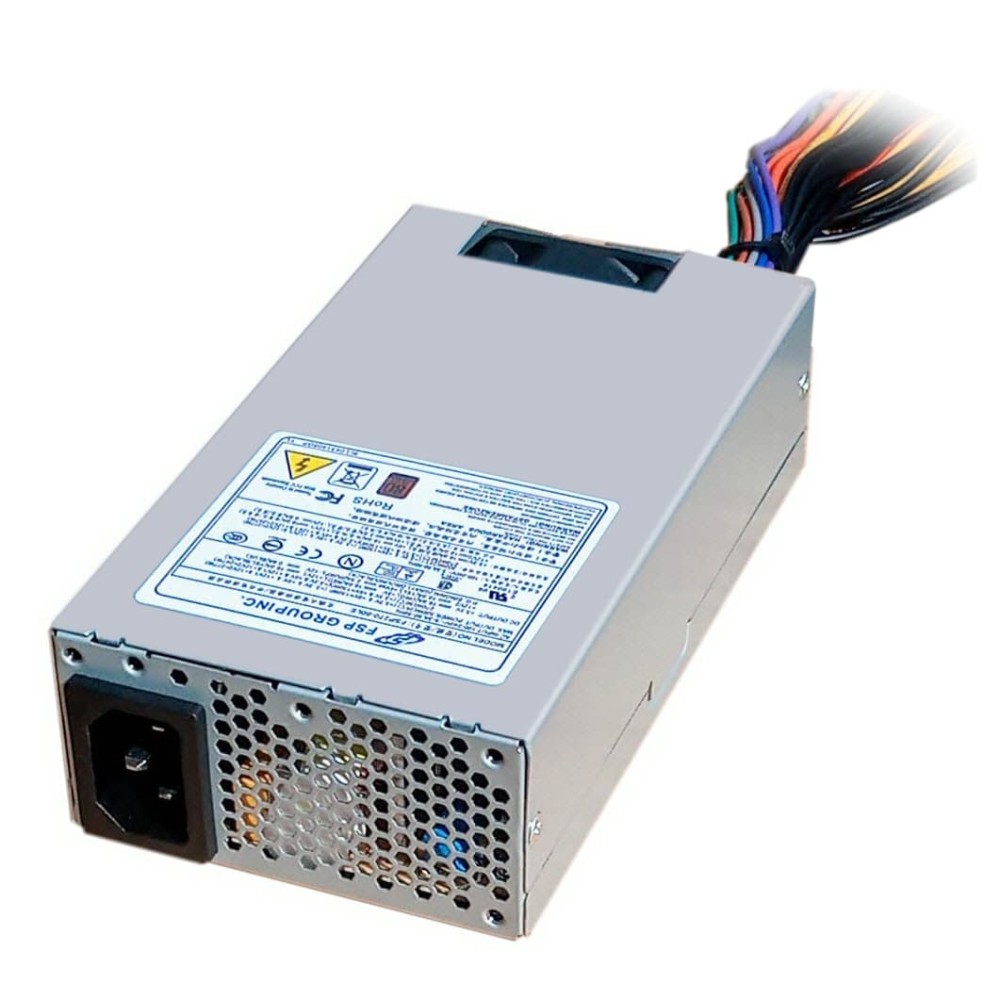

High-quality branded 270W flex PSU by FSP — engineered for small form-factor systems, rackmounts, and embedded computing. Full-range 110–230V input, no voltage switch required.
Browse the PSU models this unit replaces, and the computers it is compatible with. Use the search box to find your model instantly.
| Specification | |
| Model Number | FSP270-60LE |
| AC Input | Full range 110 - 230Volt. Suitable worldwide without modification or manual setting. |
| Power Output | 270 Watt |
| PSU type | 1U Flex PSU suitable for a variety of small systems, epos, servers etc... |
| Form Factor | Micro ATX |
| Material | Metal Casing |
| Colour | Grey |

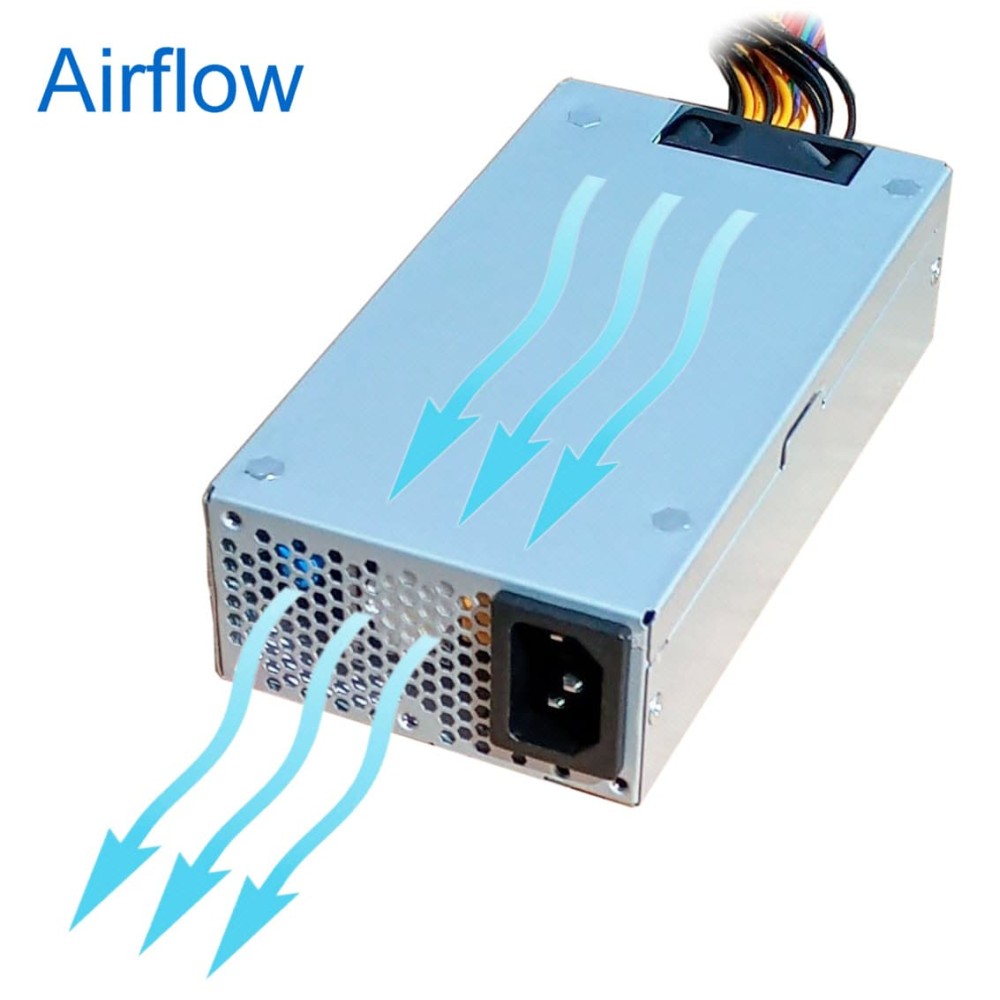

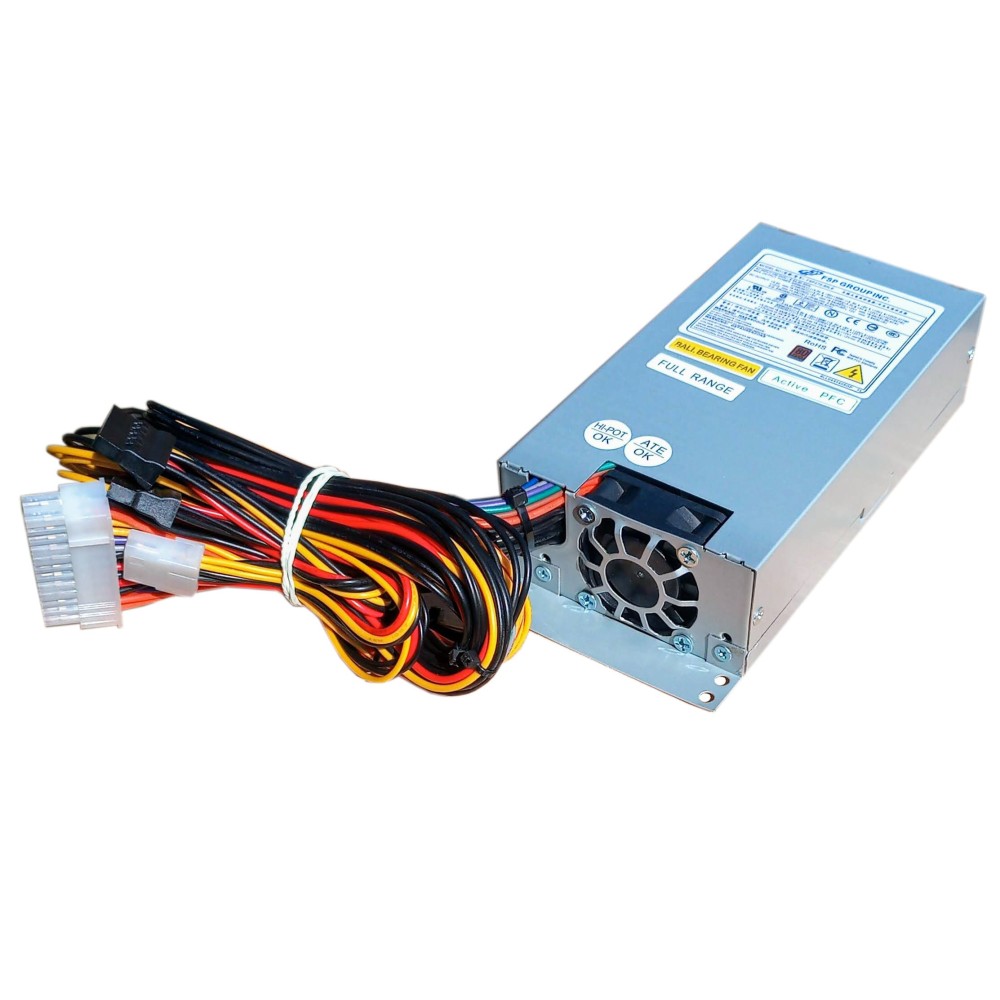

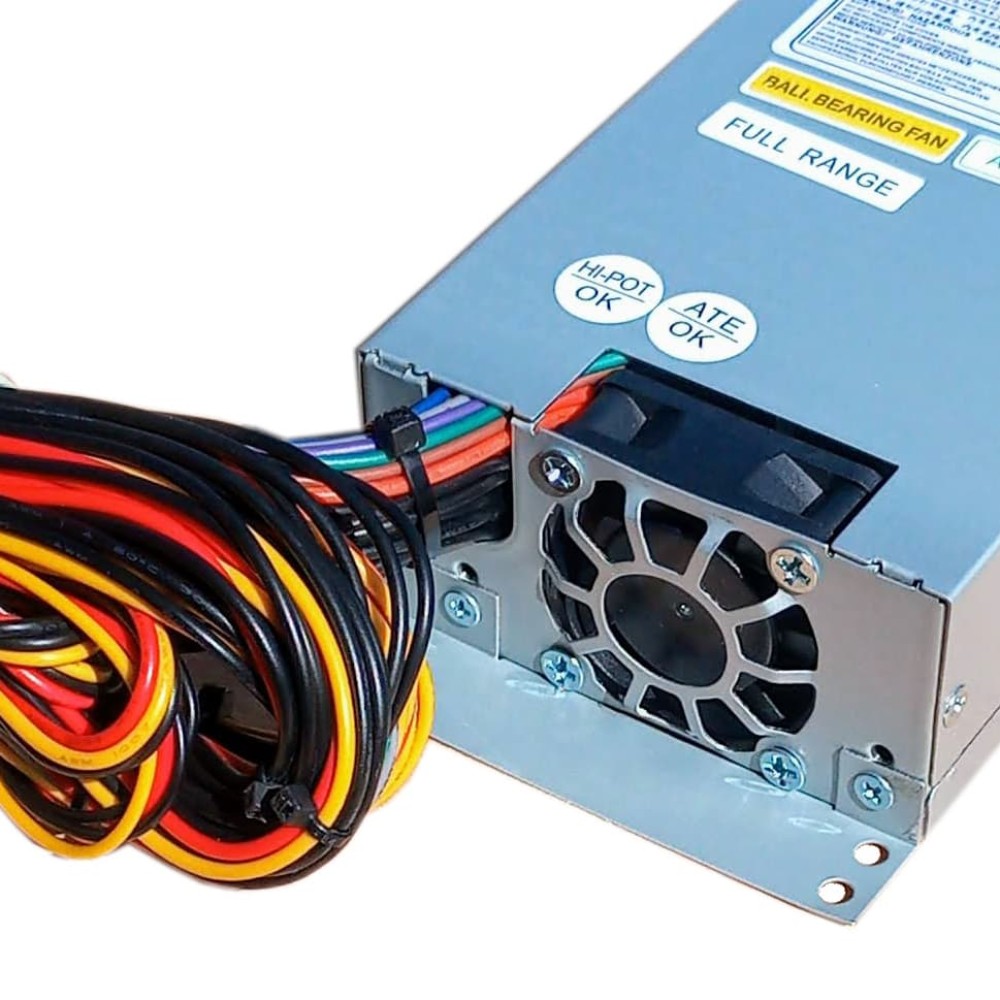

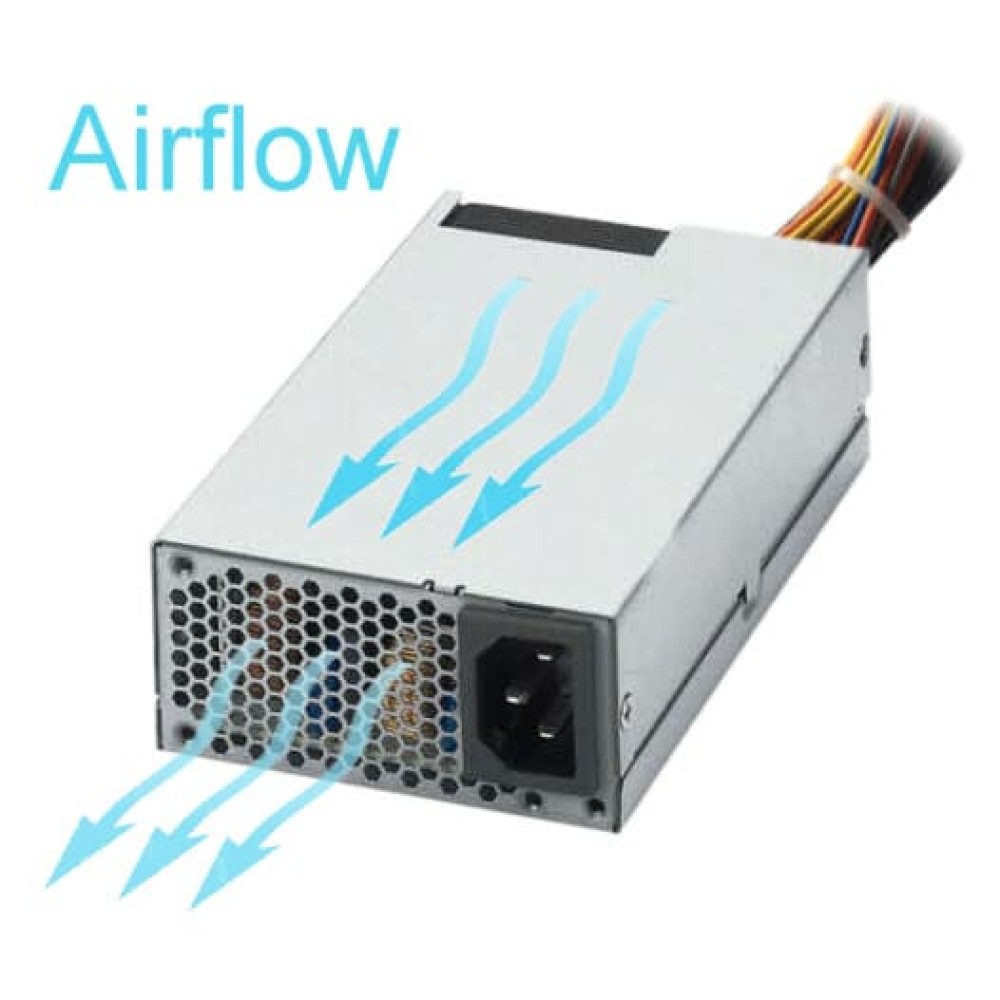

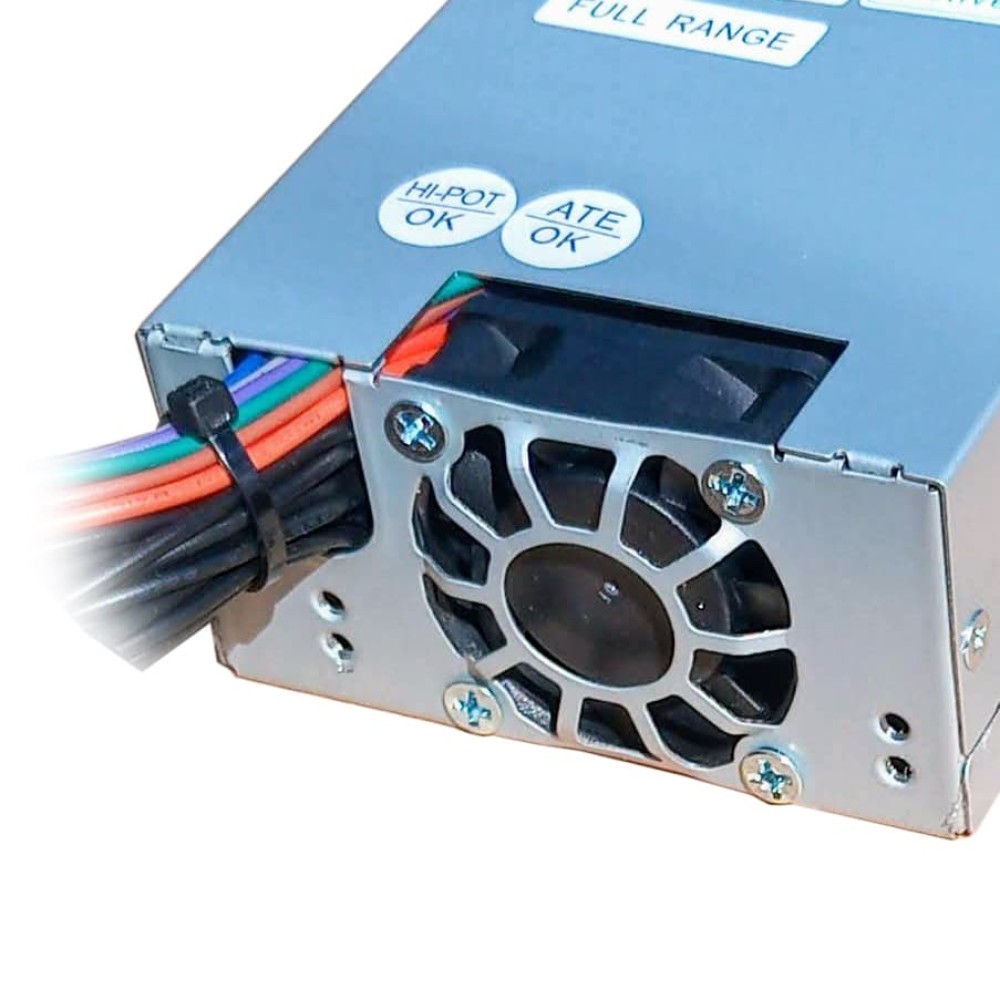

| Ventilation | 1x 40mm fan at rear (near cable exit). Some similar PSUs come with the fan at the front (near the power socket). The airflow in both types of PSUs is exactly the same: the hot air from the PC and the PSU is expelled efficiently via the vent holes. |

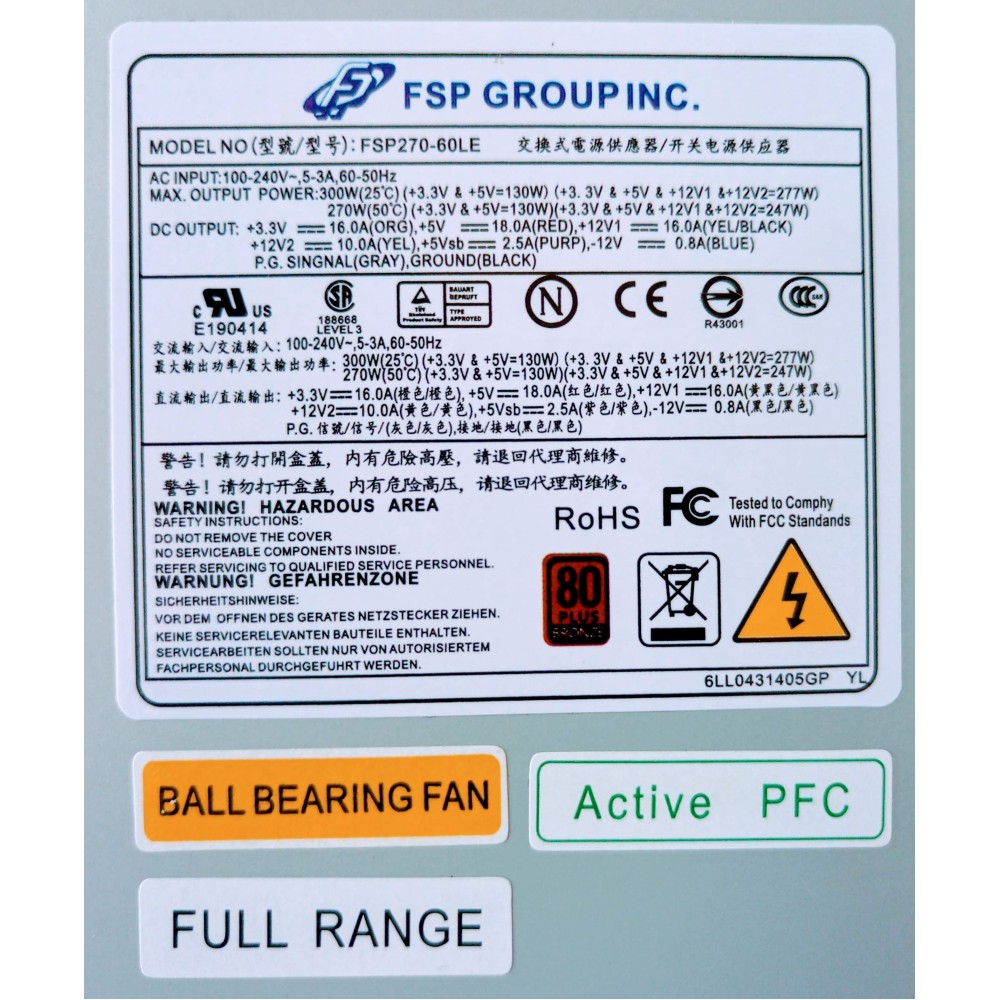

| Safety Standards | Global approved: RU, CSA, TUV, N, CE, BSMI, CCC, FCC |
| Efficiency Level | 80 Plus Bronze |

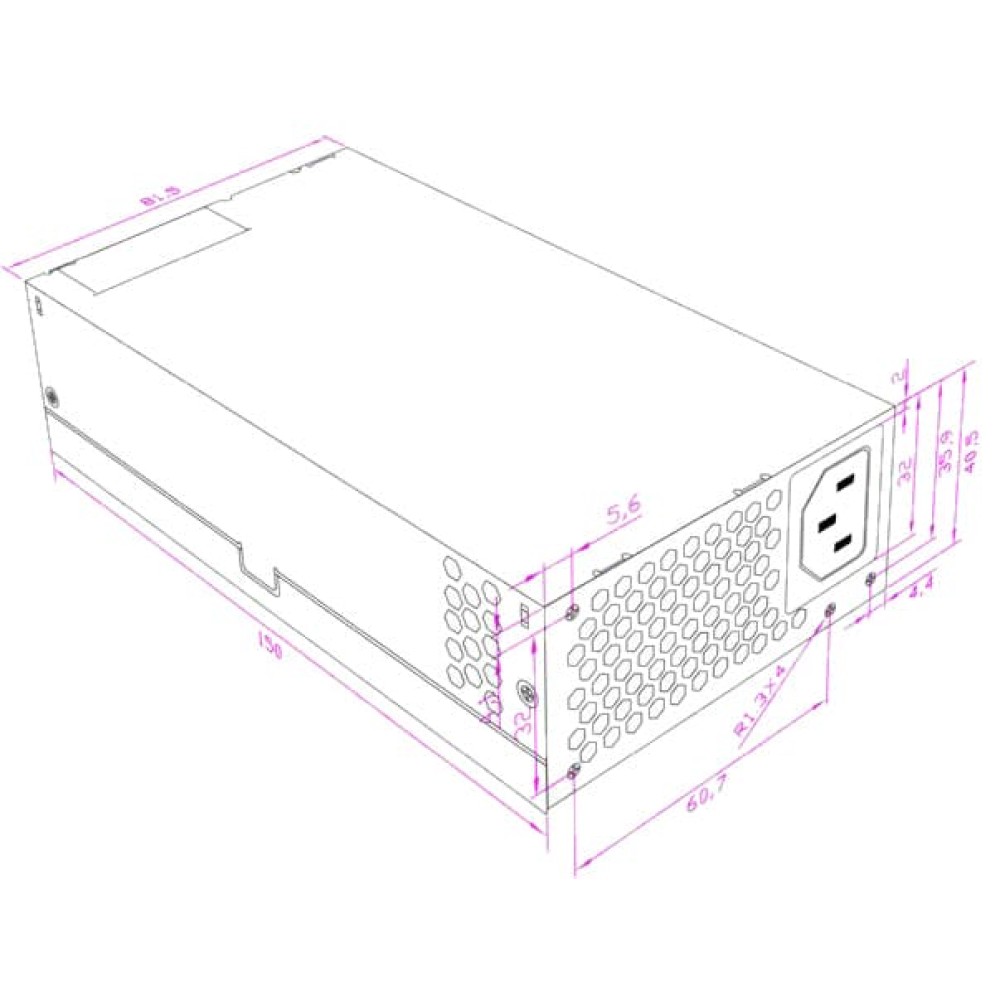

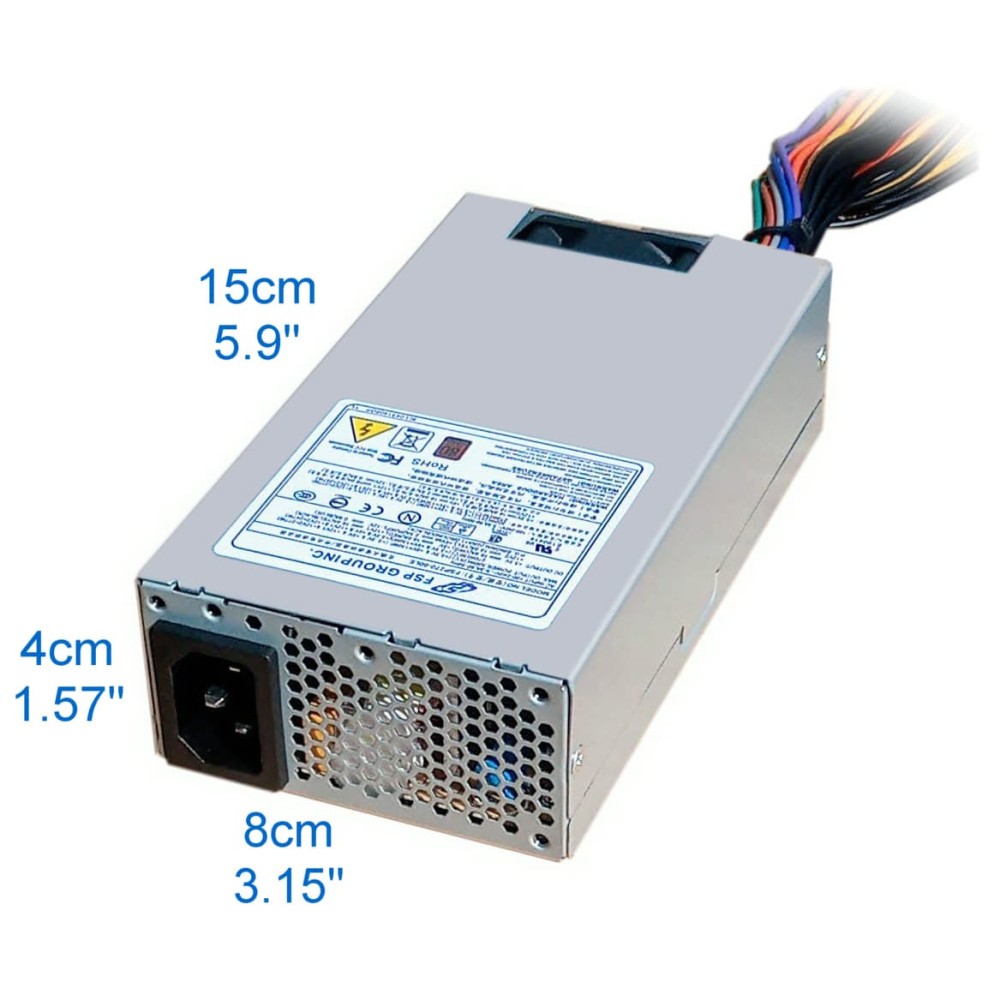

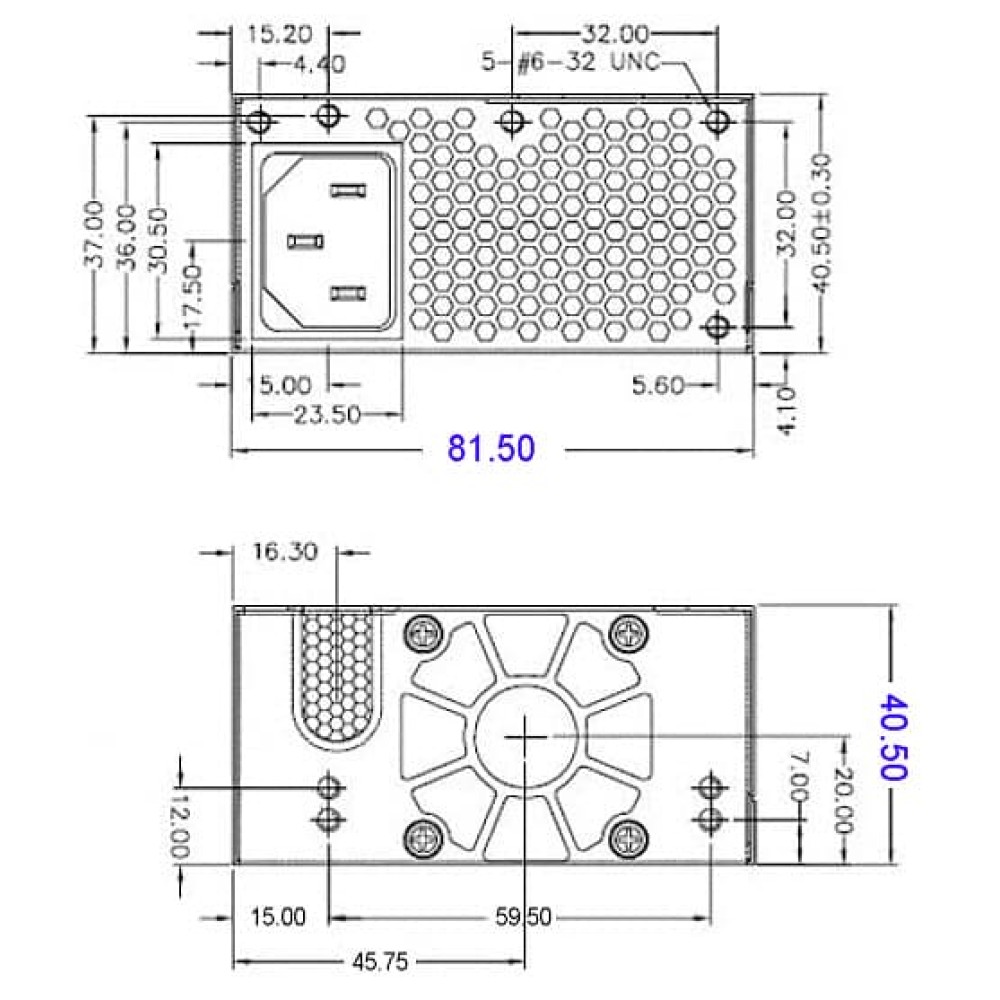

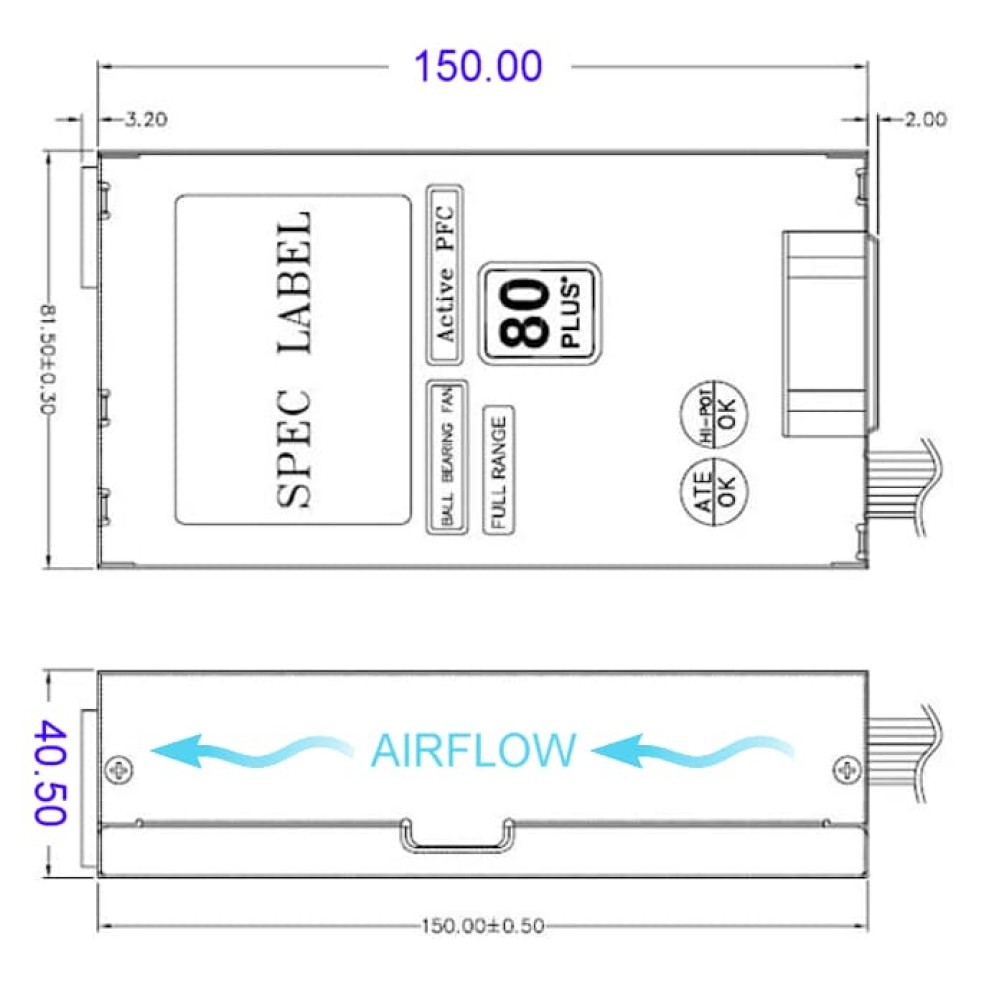

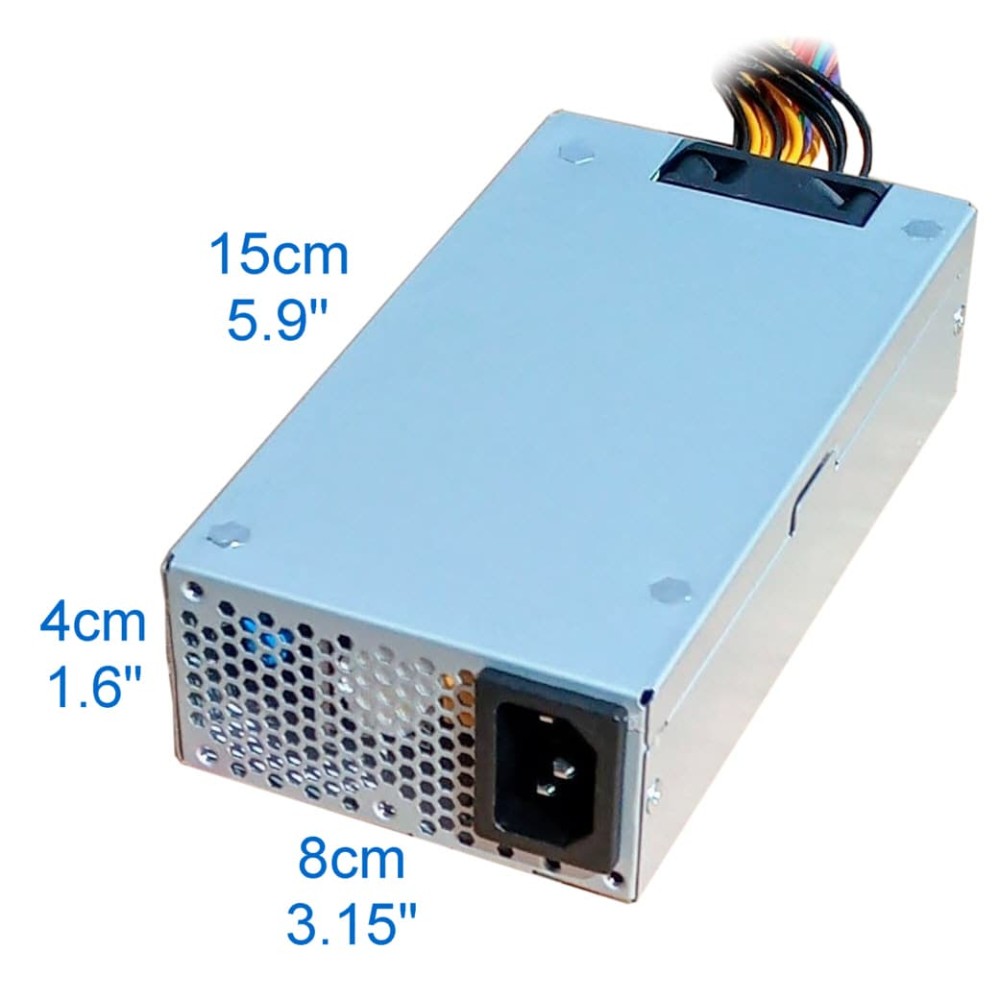

| Product size & weight | 4 x 8 x 15 cm / 1.57 x 3.15 x 5.9 inch / 0.8Kg |
| Other | With Active PFC and Ball bearing cooling fan. |

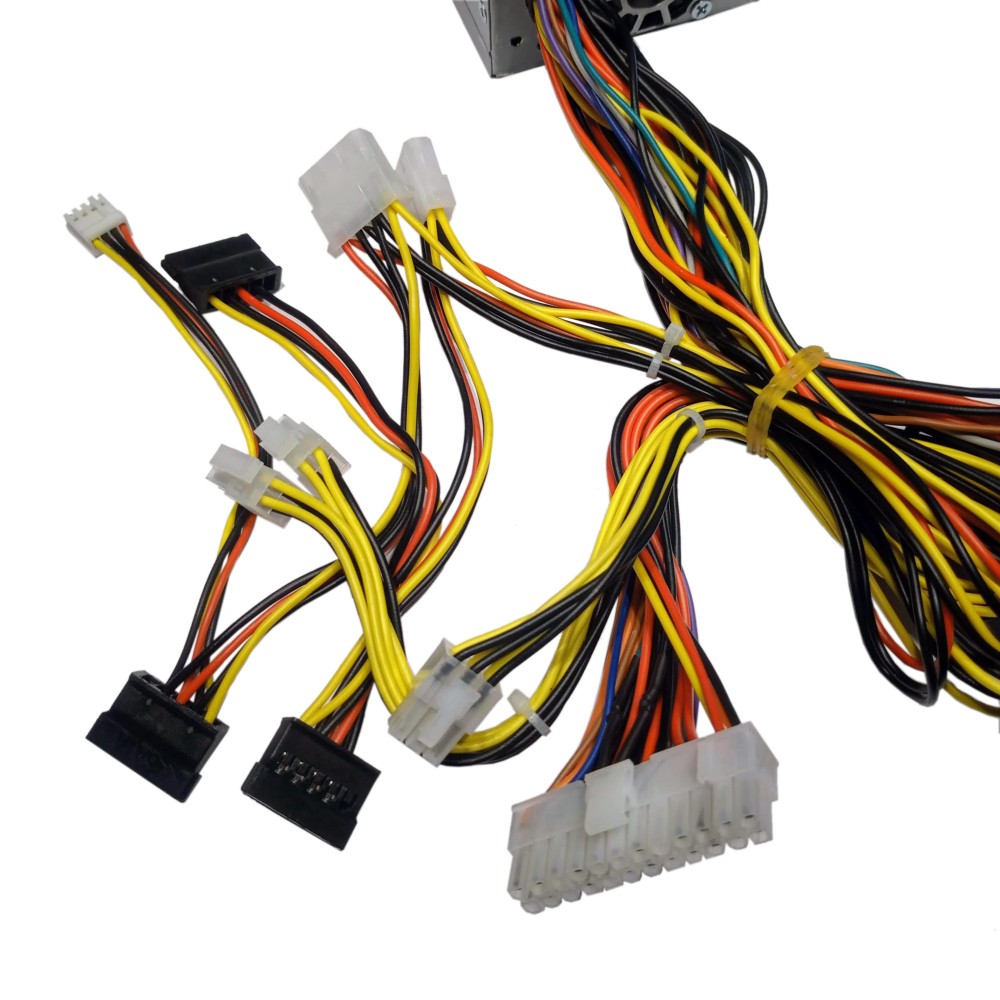

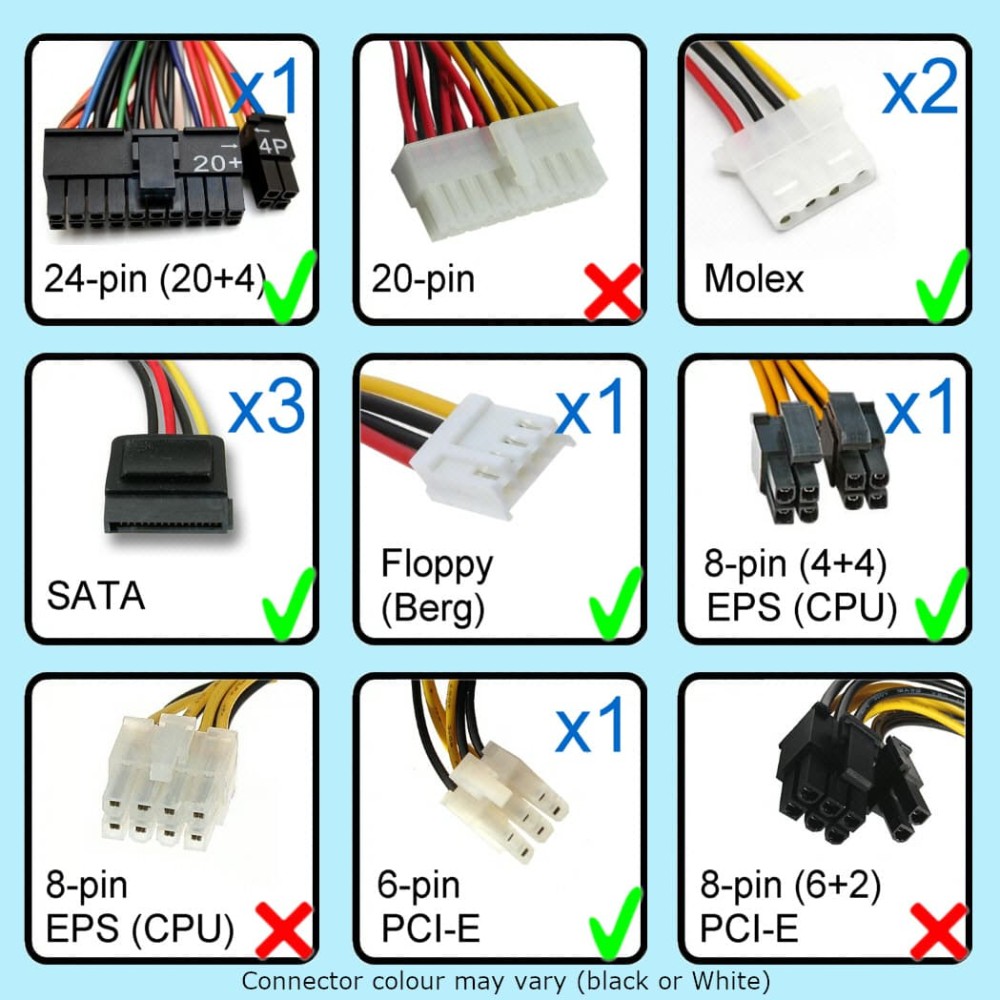

| Connectors | |

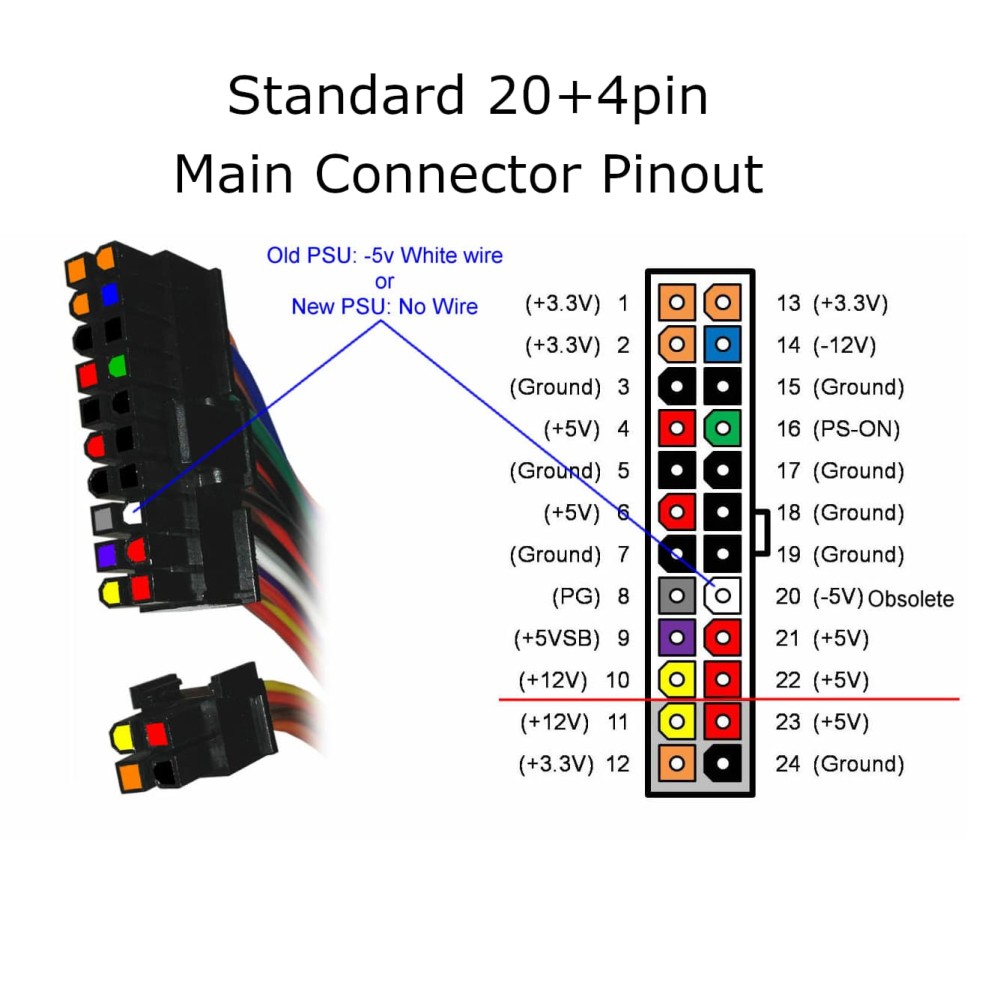

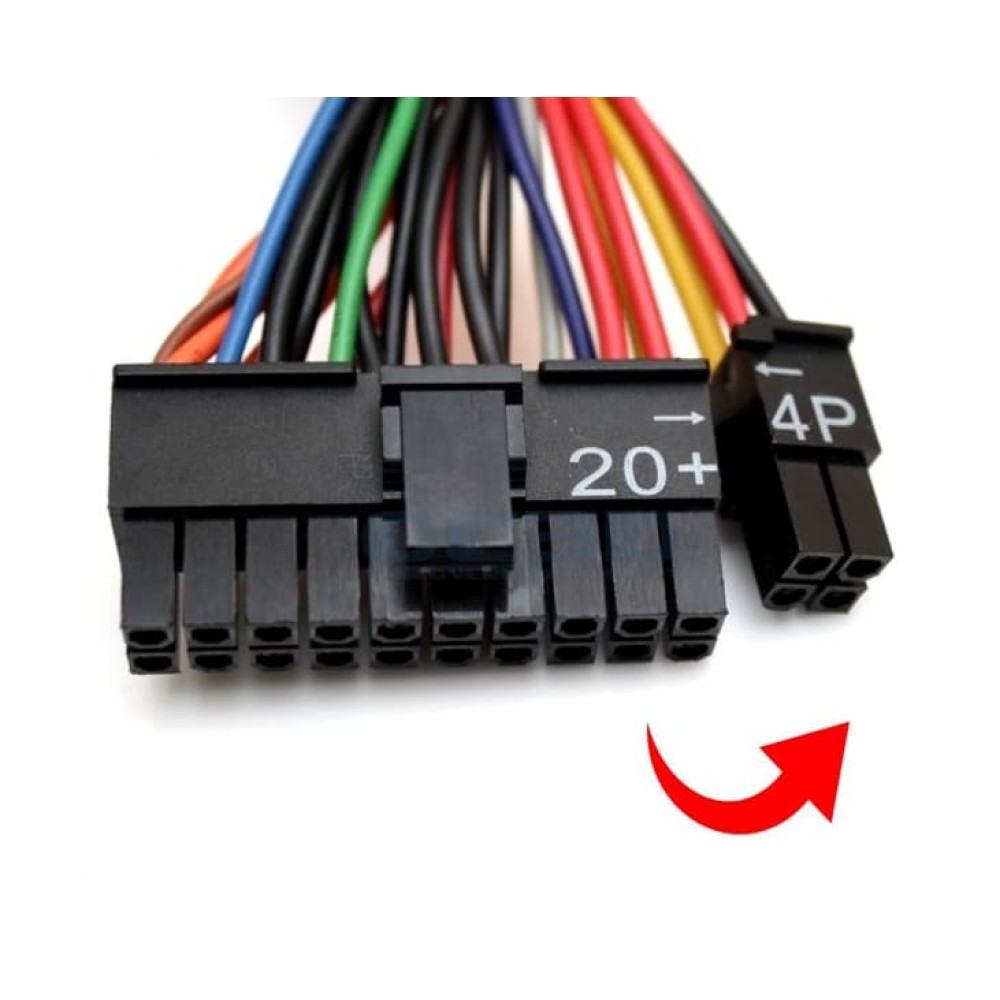

| 20/24-pin ATX | 1x (20+4) pin connector suitable for Motherboards with 20 or 24 pin socket. (41cm long). |
| Molex | 2x Molex connectors. (39cm long). |
| SATA | 3x SATA |
| Floppy (Berg) | 1x Floppy Drive Berg connector. (67cm long). |
| 8-pin (4+4) CPU | 1x (4+4) pin 12V connector suitable for boards with 4pin or 8pin CPU socket. (46cm long). |
| 6 pin PCI-E | 1x 6 pin PCI-E connector. (43cm long). |
| 8-pin (6+2) PCI-E | Connector NOT included. Order an optional 8 pin (6+2) pin connector if required. |
| DC Output | |
| +12V1 | 16A |
| +12V2 | 10A |
| +5V | 18A |
| +3.3V | 16A |
| +5Vsb | 2.5A |
| -12V | 0.8A |
| More Info | |
| Package size & weight | 30 x 20 x 10 cm / 11.8 x 7.8 c 3.9 inch / 1kg |
| Product Condition | Brand new |
| Warranty | 1 year standard warranty + 1 year FREE extended warranty = 2 year warranty. |
| Return | Return accepted within 30 days if unwanted. |
| Made in | China |
| Shipped from | United Kingdom |
| Remarks | Contact us with your old PSU model number and picture if you require assistance in finding a suitable replacement. It is advisable to test your old PSU before purchasing a new one (see last picture). |
