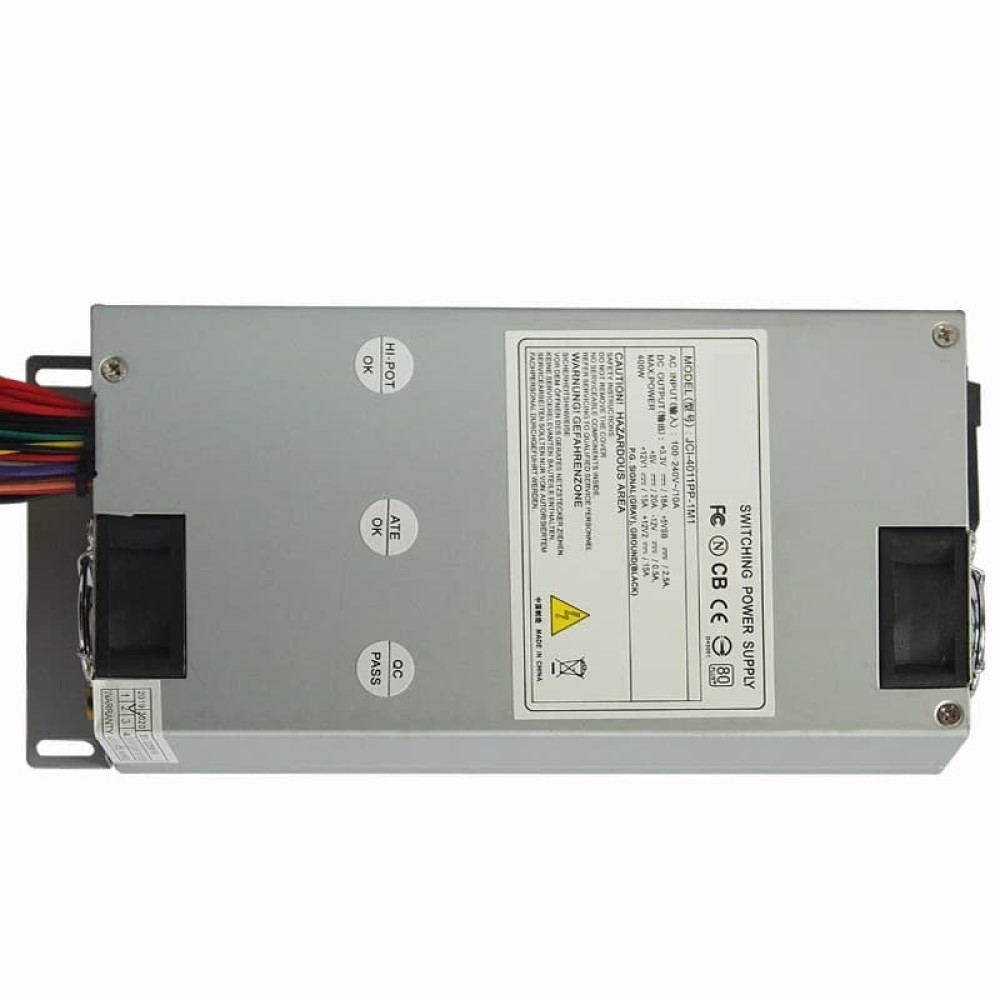

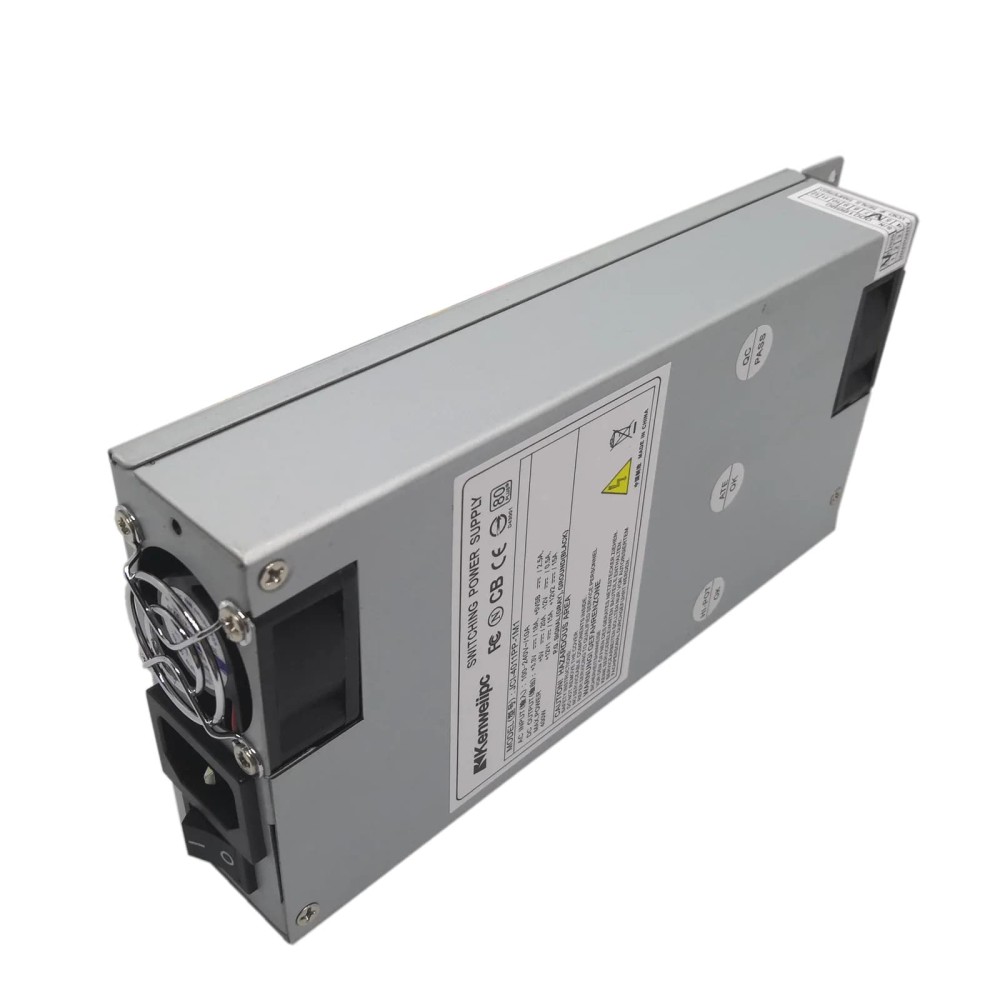

JCI-4011PP-1M1 400W 1U Power Supply Unit

High-output 400W industrial-grade 1U PSU — engineered for demanding systems including servers, CCTV/NVR, EPOS, and rackmount applications. Full-range 110–230V input, no voltage switch required.

Compatible Systems
Small ITX Computers
1U 19" Rackmounts
Industrial PCs
Servers
EPOS Systems
NAS Devices
CCTV & NVR
Key Features
400W Output PowerHigh-output for industrial & 1U builds
Universal Input110–230V, works worldwide
Industrial GradeBuilt for continuous operation
Metal CasingDurable grey steel enclosure
Dual 40mm FansFront & rear cooling for reliability
9x Molex ConnectorsGenerous cabling for drive-heavy builds
Important Note

Note that this item is shipped from the Far East. Please allow extra delivery time as it can take 1 to 3 weeks to arrive.

Not sure if this is the right PSU? Contact us with your old PSU model number and a photo — we're happy to help find the right match.

JCI-4011PP-1M1 Compatibility Guide

This PSU does not have a fixed compatibility list — instead it is a universal replacement for any standard 100mm wide 1U flex PSU up to 400W. Read below to find out if it fits your system.

Universal 1U Flex PSU Replacement

The JCI-4011PP-1M1 is an industry-standard 1U flex form factor PSU. In theory it can replace any other 1U flex PSU that meets all three of the following criteria:

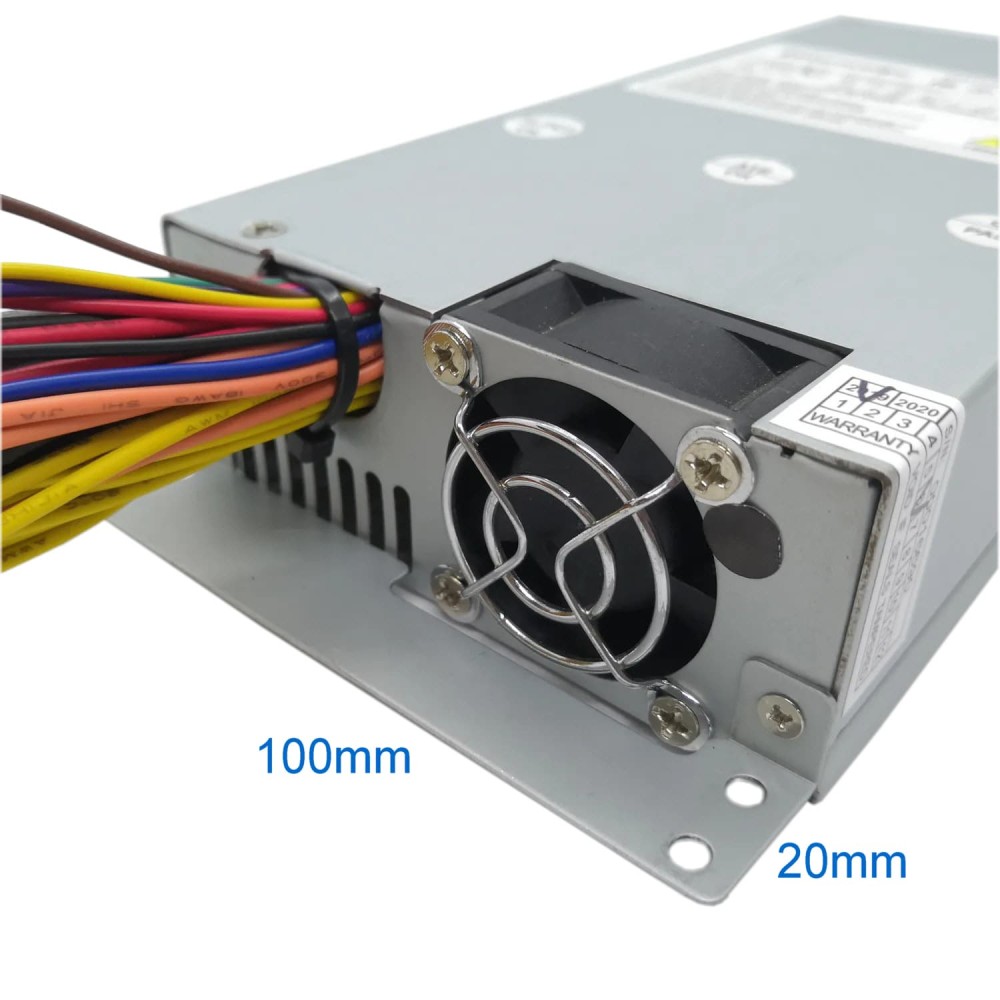

100mm wide body
20-pin or 24-pin ATX motherboard
Up to 400W output
  • The physical dimensions must match your chassis — measure your existing PSU before ordering
  • Your system's total power draw must not exceed 400W
  • The PSU includes a 20+4 pin ATX connector — compatible with both 20-pin and 24-pin motherboards, making it suitable for a wide range of systems old and new
  • The 110–230V universal input means it works worldwide — no voltage switch needed
  • The 9x Molex connectors make it suitable for drive-heavy builds such as NAS, CCTV, and NVR systems
Not sure if this fits your system? The safest check is to measure the width of your existing PSU and confirm it uses a standard 24-pin ATX connector. If in doubt, contact us with your current PSU model number and a photo — we'll confirm compatibility for you.
Important — Delivery Time

This item is shipped from the Far East. Please allow extra delivery time as it can take 1 to 3 weeks to arrive.

Specification
Model Number JCI-4011PP-1M1
AC Input Full range 110 - 230Volt. Suitable worldwide without modification or manual setting.
Power Output 400 Watt
PSU type 1U PSU suitable for a variety of industrial systems.
Form Factor ATX
Material Metal Casing
Colour Grey
Ventilation 2x 40mm fan at rear and front.
Safety Standards FCC, N, CB, BSMI

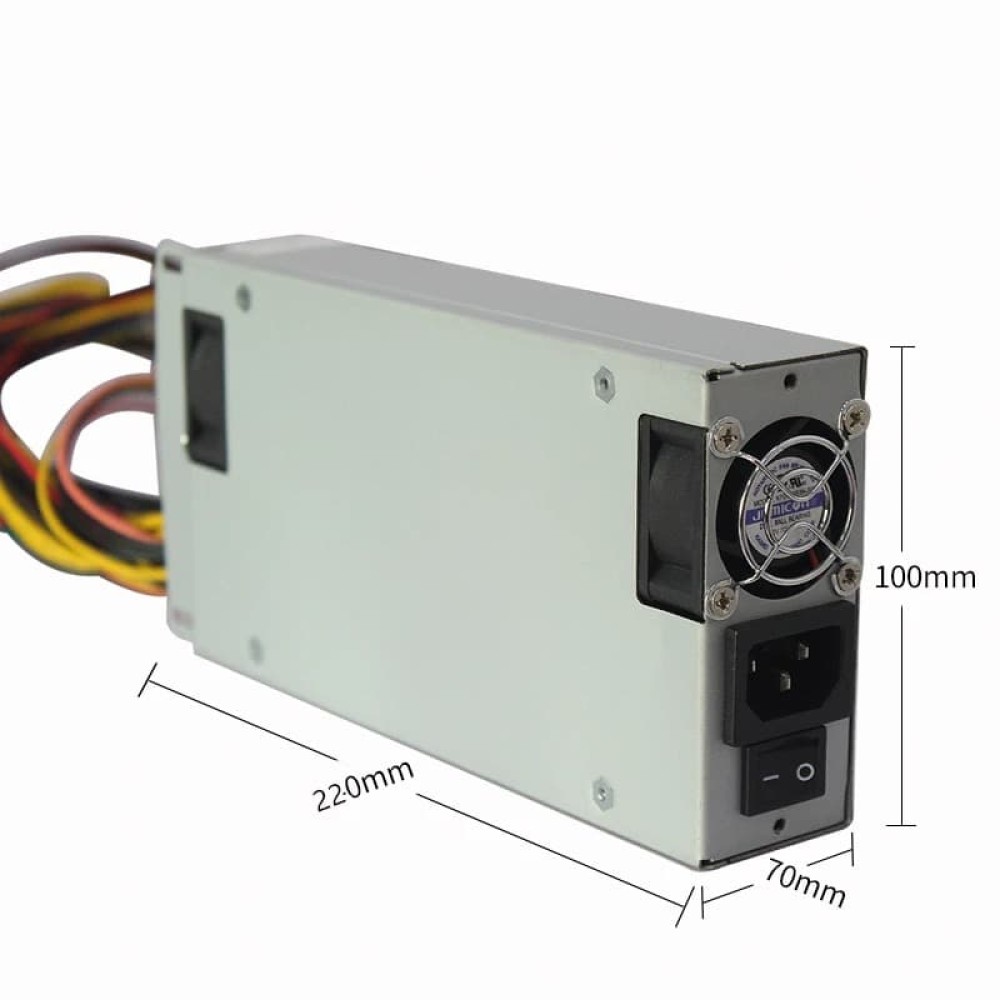

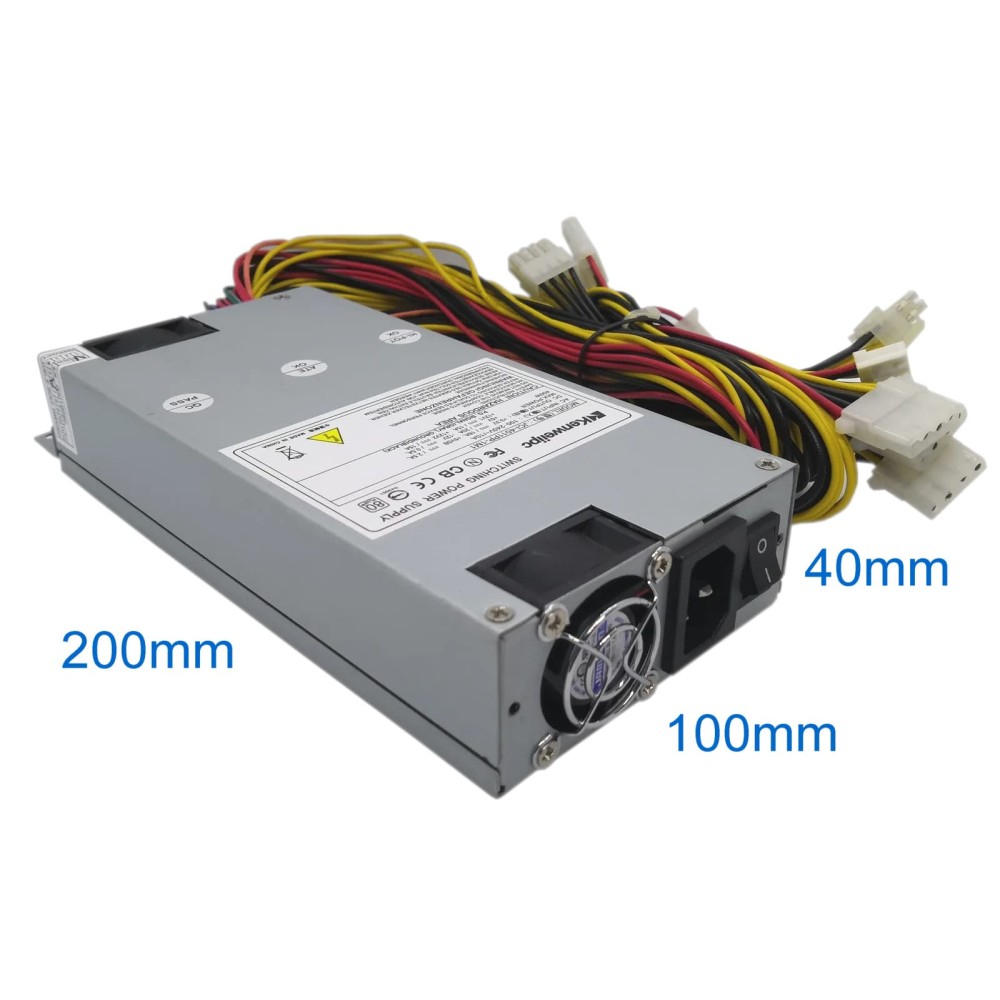

Product size & weight 4 x 10 x 20cm / 1.57 x 3.9 x 7.9 inch / 1.5Kg

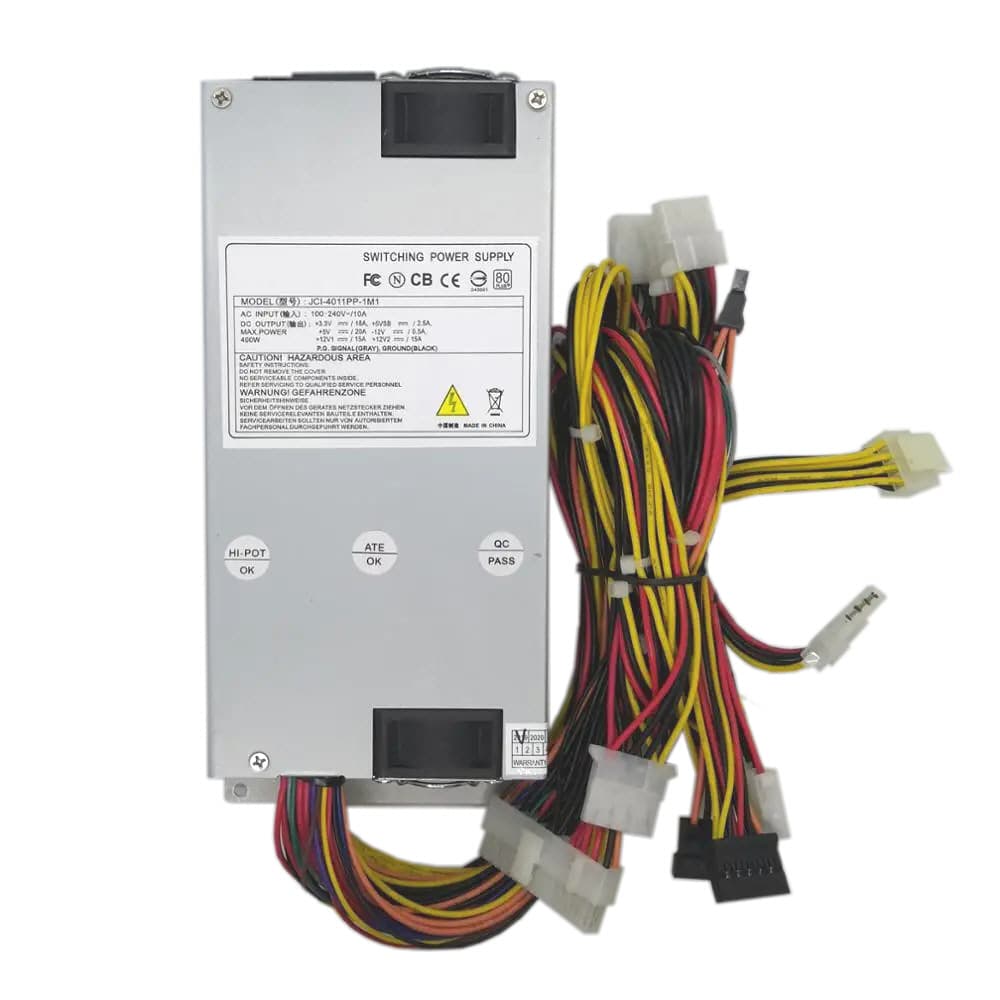

Connectors
20/24-pin ATX 1x (20+4) pin connector suitable for Motherboards with 20 or 24 pin socket.
Molex 9x Molex
SATA 3x SATA
Floppy (Berg) 1x Floppy Drive Berg connector
8-pin (4+4) CPU 1x 8pin and 1x (4+4) pin 12V connector suitable for boards with 4pin or 8pin CPU socket.

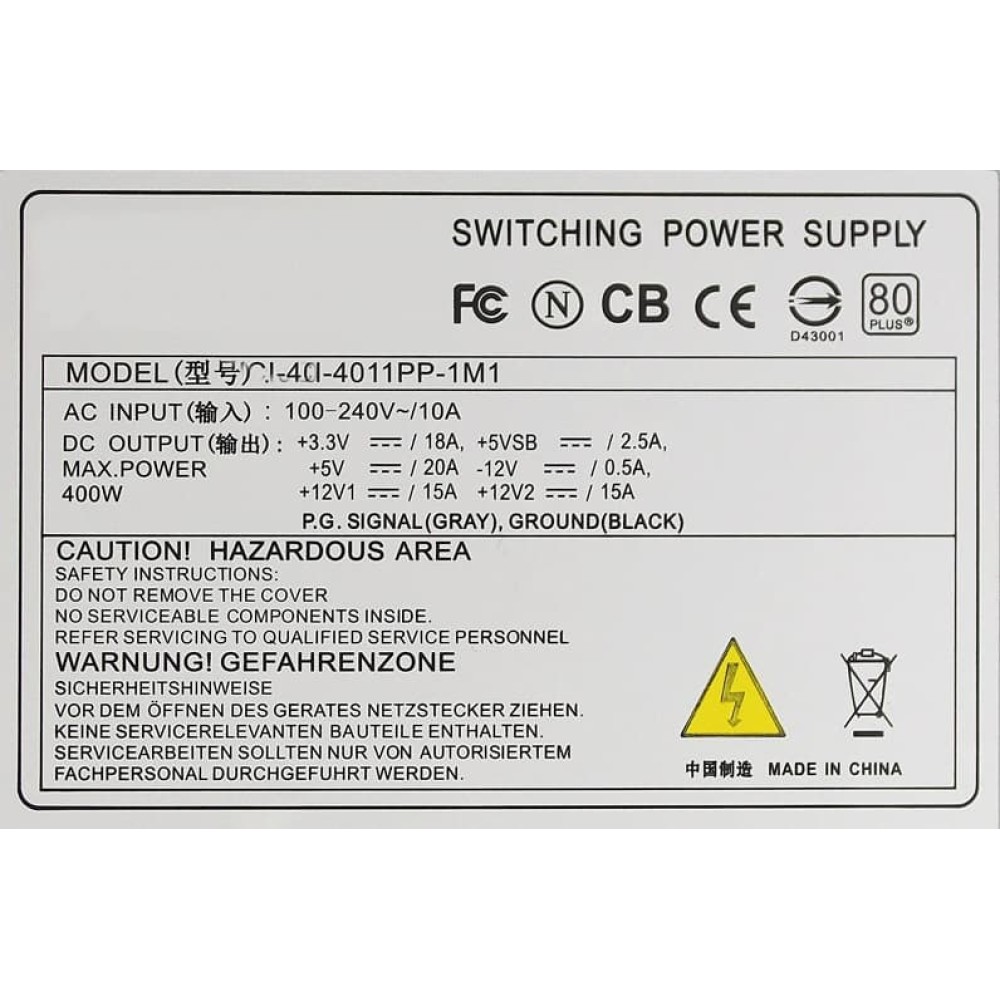

DC Output
+12V1 15A
+12V2 15A
+5V 20A
+3.3V 18A
+5Vsb 2.5A
-12V 0.5A
More Info
Package size & weight 30 x 20 x 10 cm / 11.8 x 7.8 c 3.9 inch / 2kg
Product Condition Brand new
Warranty 1 year standard warranty + 1 year FREE extended warranty = 2 year warranty.
Return Return accepted within 30 days if unwanted.
Made in China
Shipped from China
Remarks If you need assistance finding a suitable replacement, contact us with your old PSU model number and picture. It is advisable to test your old PSU before purchasing a new one (see last picture). NOTE THAT THIS ITEM IS SHIPPED FROM THE FAR EAST AND MAY TAKE 1 TO 3 WEEKS TO ARRIVE
