| Brand: | FSP |
| Product Code: | Asustor NAS 24-pin PSU AS-150W |
High-quality branded 270W replacement PSU by FSP for Asustor NAS systems requiring a 24-pin connector. Full-range 110–230V input, no voltage switch required.
Full specifications for this product, verified against manufacturer data.
| Model Number | FSP270-60LE |
| AC Input | Full range 110 - 230Volt. Suitable worldwide without modification or manual setting. |
| Power Output | 270 Watt |
| PSU type | 1U Flex PSU suitable for a variety of small systems, epos, servers etc... |
| Form Factor | Micro ATX |
| Material | Metal Casing |
| Colour | Grey |
| Ventilation | 1x 40mm fan at rear (near cable exit). Some similar PSUs come with the fan at the front (near the power socket). The airflow in both types of PSUs is exactly the same: the hot air from the PC and the PSU is expelled efficiently via the vent holes. |
| Safety Standards | Global approved: RU, CSA, TUV, N, CE, BSMI, CCC, FCC |
| Efficiency Level | 80 Plus Bronze |

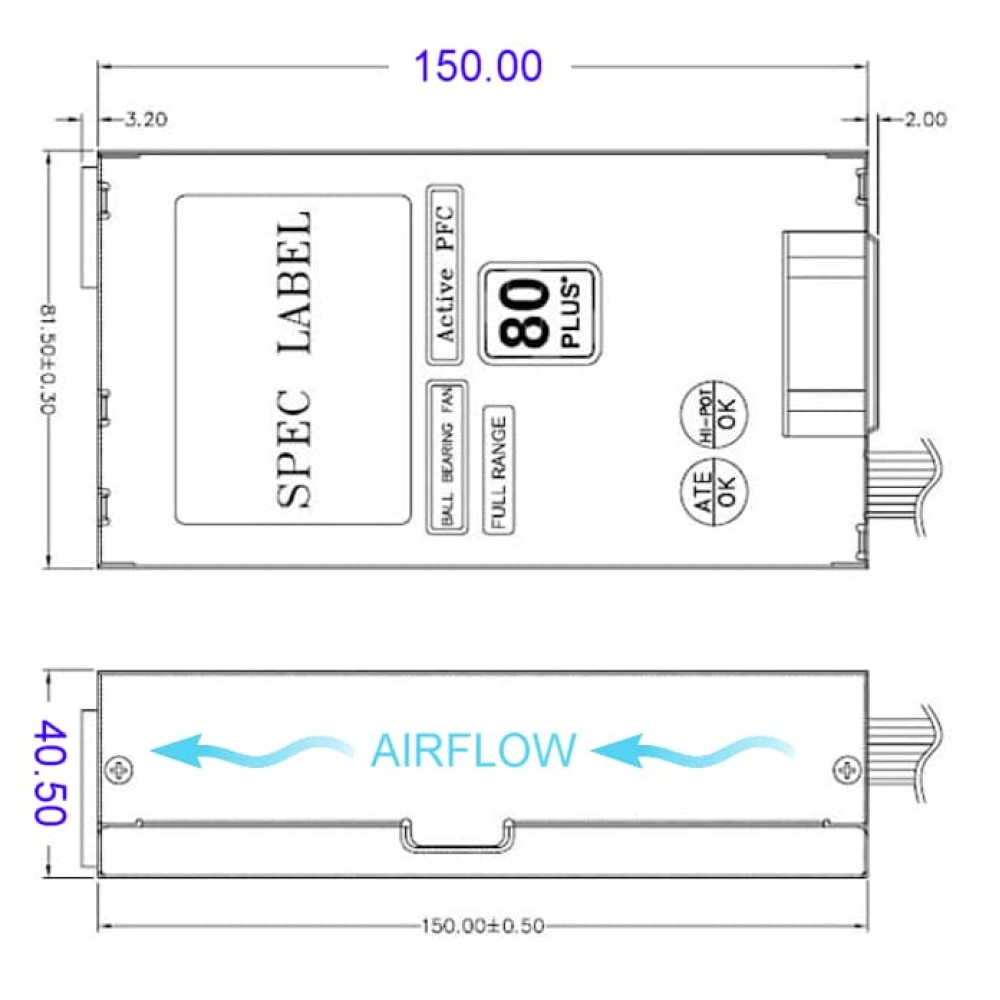

| Product size & weight | 4 x 8 x 15 cm / 1.57 x 3.15 x 5.9 inch / 0.8Kg |
| Other | With Active PFC and Ball bearing cooling fan. |

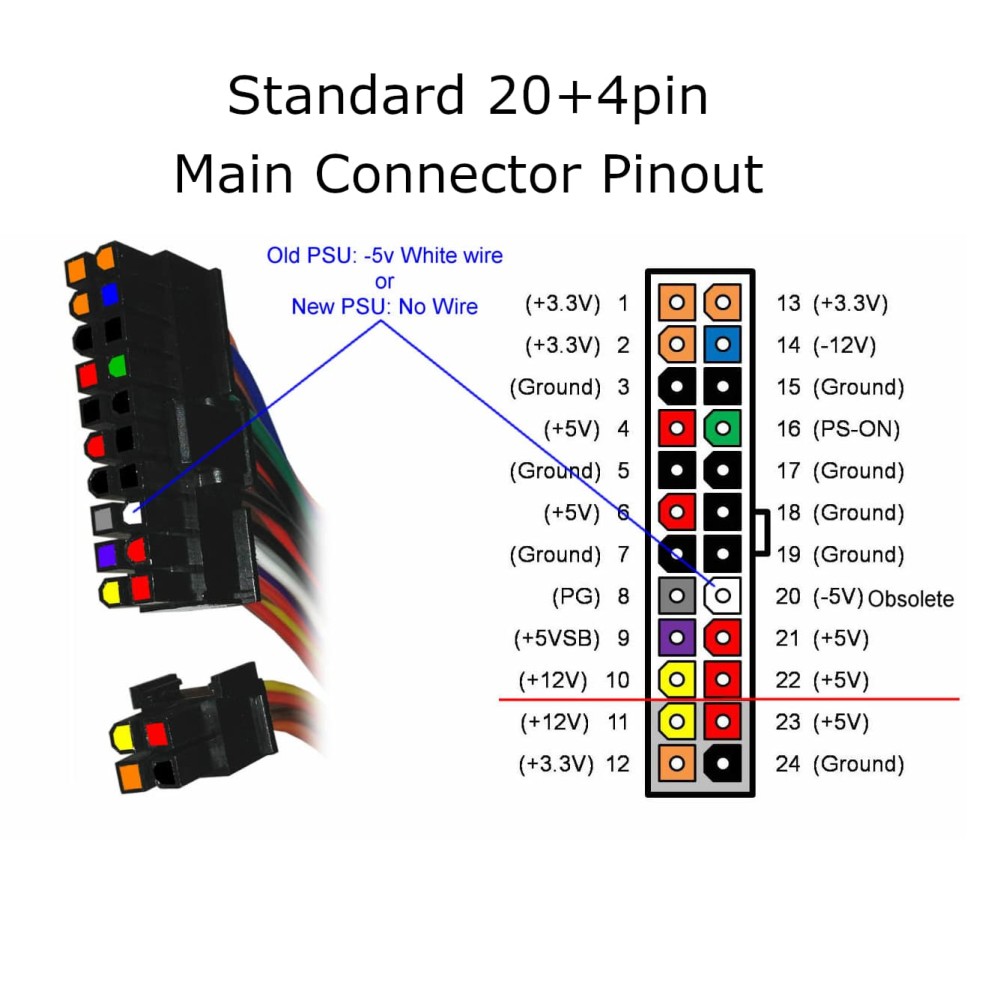

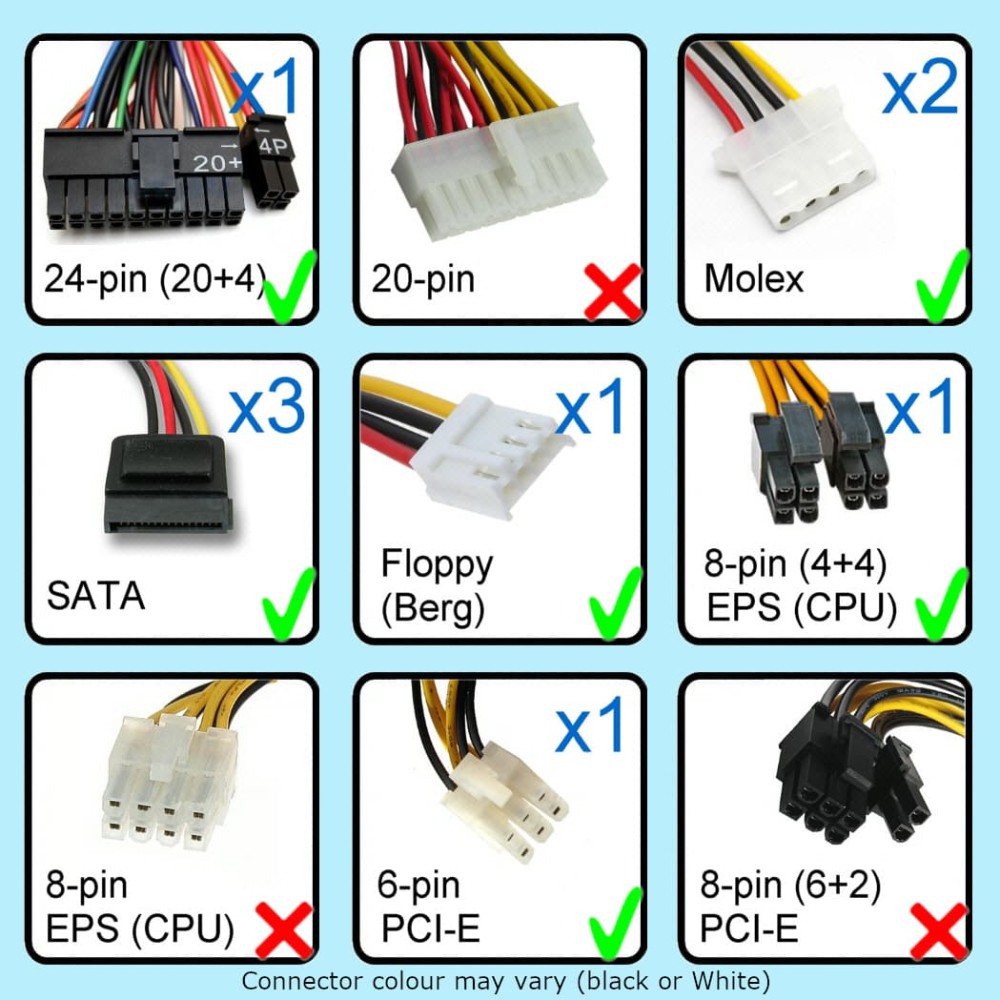

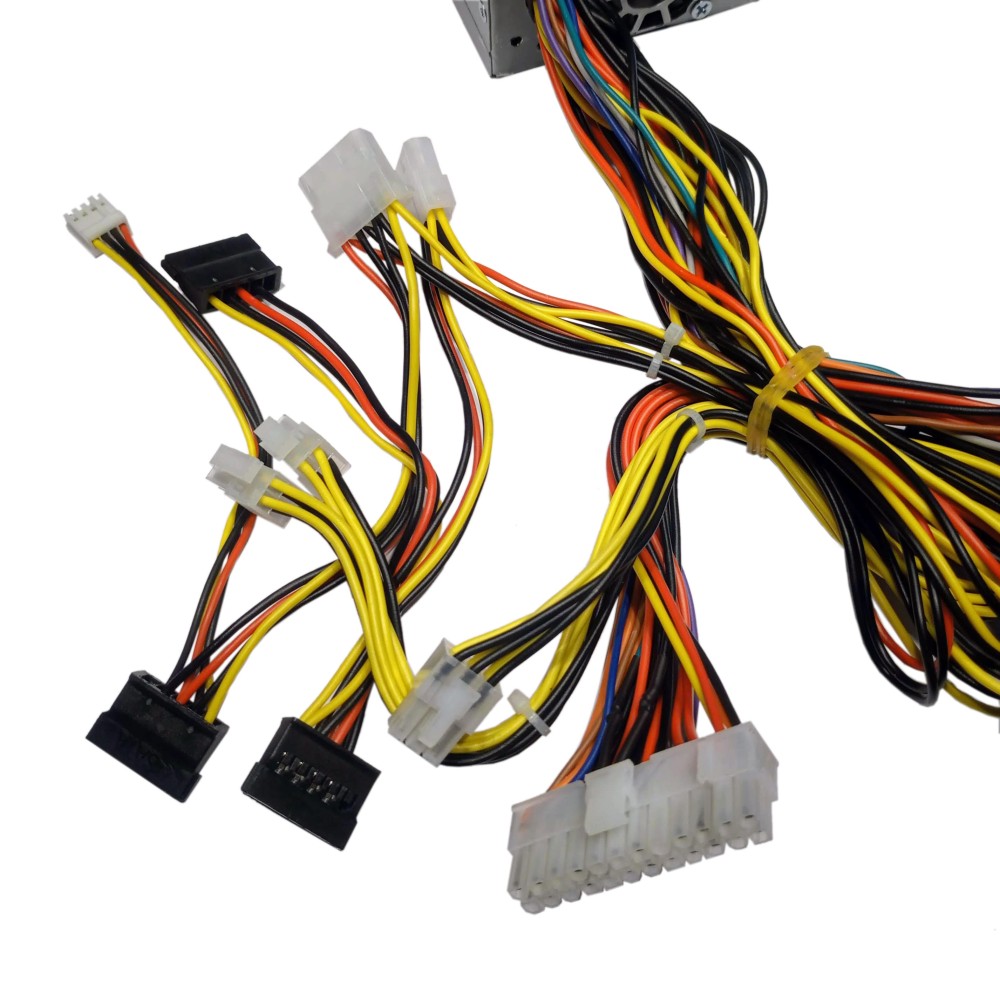

| 20/24-pin ATX | 1x (20+4) pin connector suitable for Motherboards with 20 or 24 pin socket. (41cm long). |
| Molex | 2x Molex connectors. (39cm long). |
| SATA | 3x SATA |
| Floppy (Berg) | 1x Floppy Drive Berg connector. (67cm long). |
| 8-pin (4+4) CPU | 1x (4+4) pin 12V connector suitable for boards with 4pin or 8pin CPU socket. (46cm long). |
| 6 pin PCI-E | 1x 6 pin PCI-E connector. (43cm long). |
| 8-pin (6+2) PCI-E | Connector NOT included. Order an optional 8 pin (6+2) pin connector if required. |
| +12V1 | 16A |
| +12V2 | 10A |
| +5V | 18A |
| +3.3V | 16A |
| +5Vsb | 2.5A |
| -12V | 0.8A |
| Package size & weight | 30 x 20 x 10 cm / 11.8 x 7.8 c 3.9 inch / 1kg |
| Product Condition | Brand new |
| Warranty | 1 year standard warranty + 1 year FREE extended warranty = 2 year warranty. |
| Return | Return accepted within 30 days if unwanted. |
| Made in | China |
| Shipped from | United Kingdom |
| Remarks | Contact us with your old PSU model number and picture if you require assistance in finding a suitable replacement. It is advisable to test your old PSU before purchasing a new one (see last picture). Check your Asustor NAS requirements in terms of connectors. Some systems require an additional 10-pin or 16-pin proprietary connectors. Check our store to find these PSUs. |
Browse the PSU model this unit replaces, and the Asustor NAS models it is compatible with. Use the search box to find your model instantly.
