| Brand: | Vanda Trading |
| Product Code: | Self latching AT PSU switch |

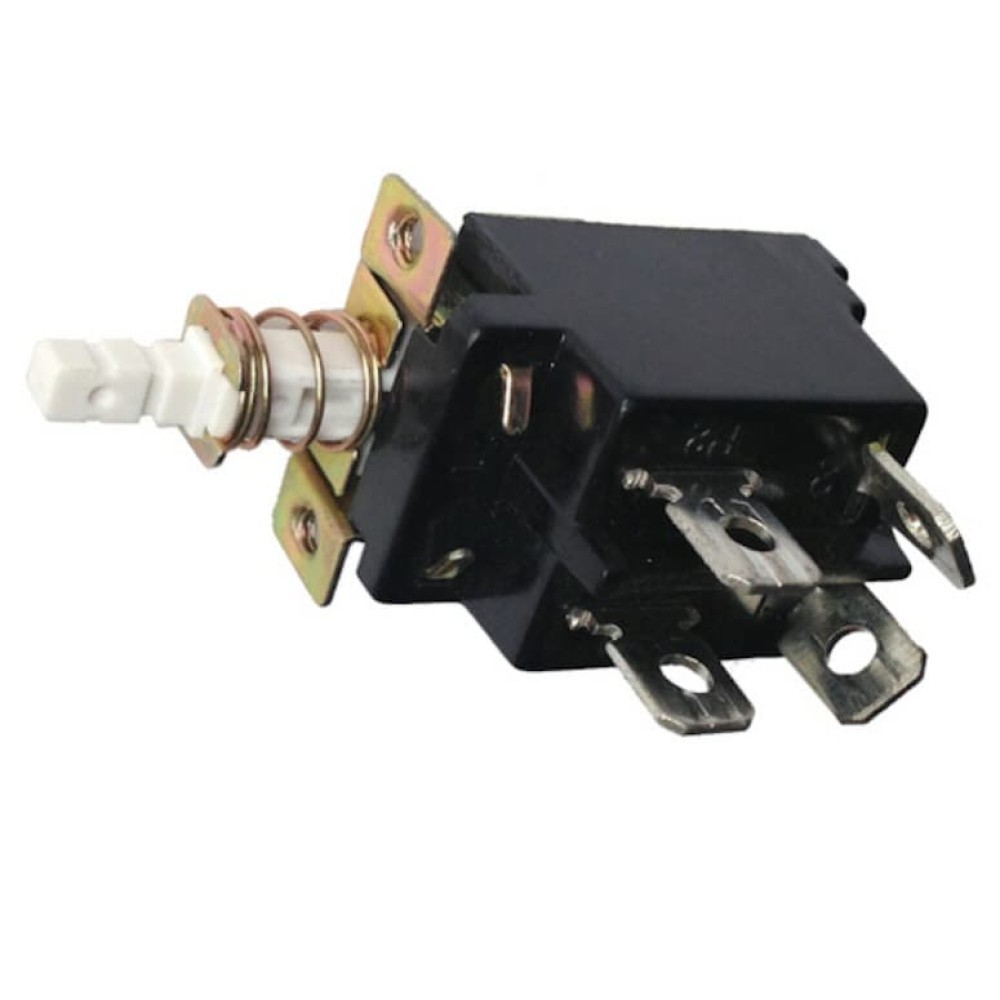

This switch, like a normal light switch, is self-latching, permanent, or maintained. It changes position when pressed and stays in that position
until pressed again.
This is the standard switch for legacy AT (Advanced Technology)
systems, machines and computers. It can also be used for many other

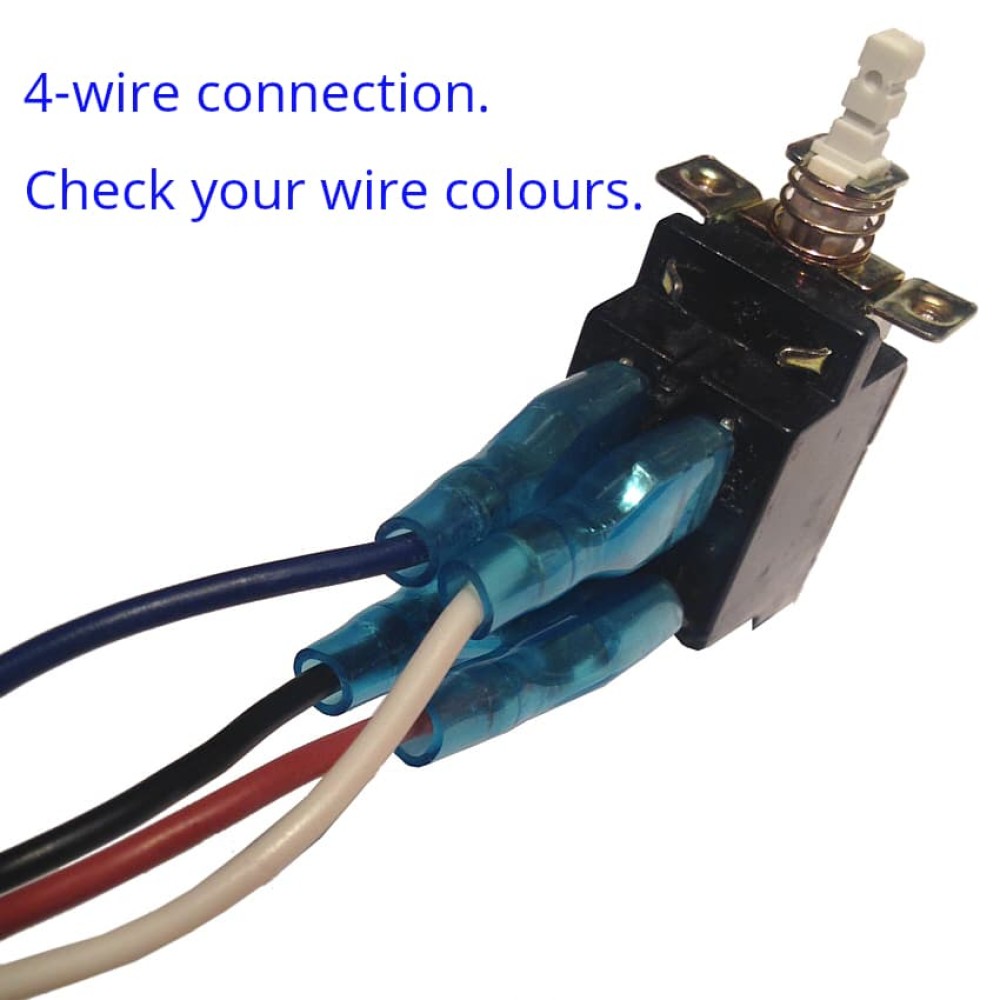

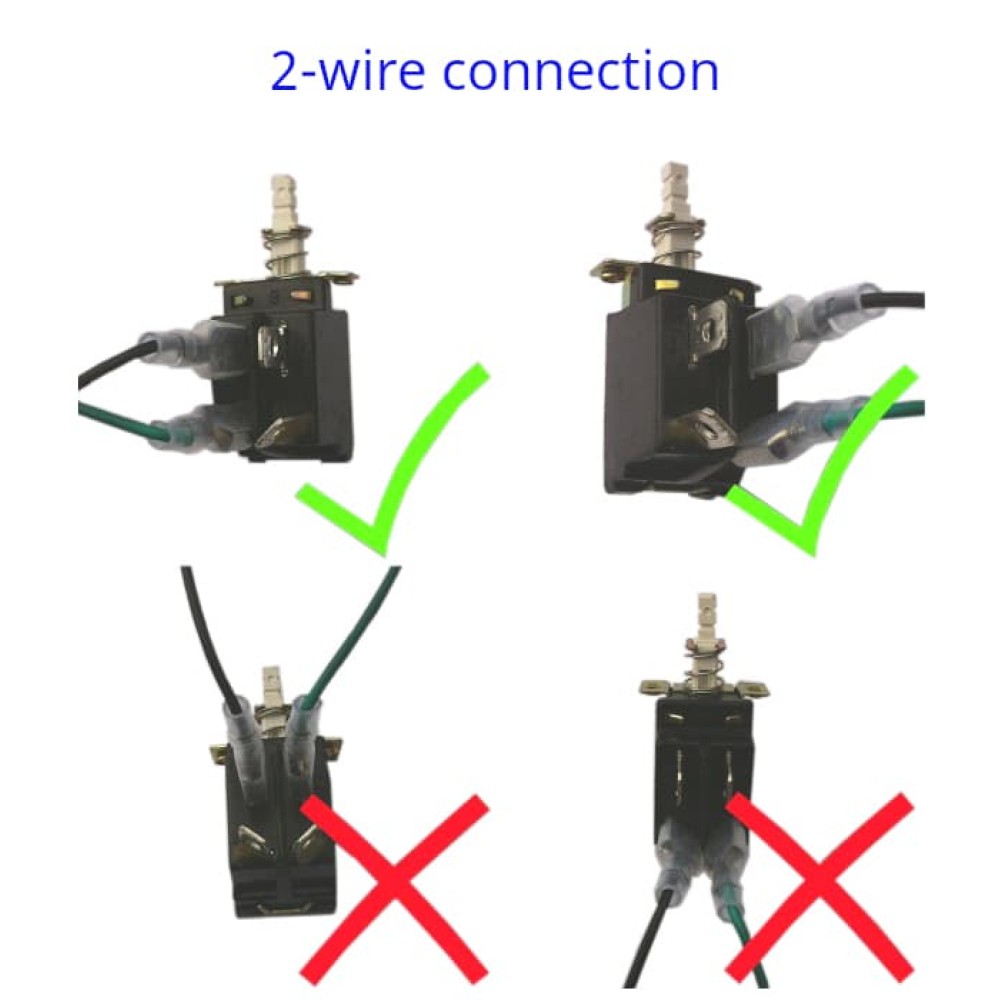

applications, with 4 wires or only 2 wires.

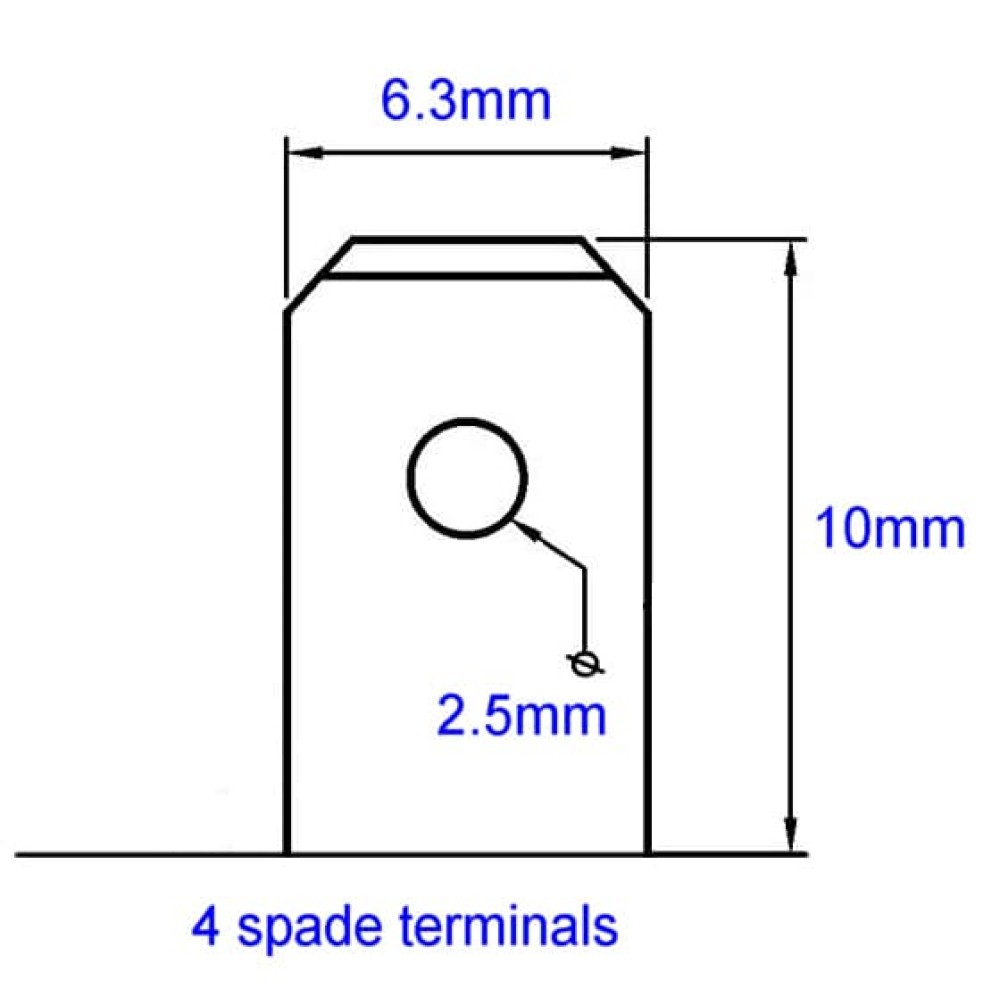

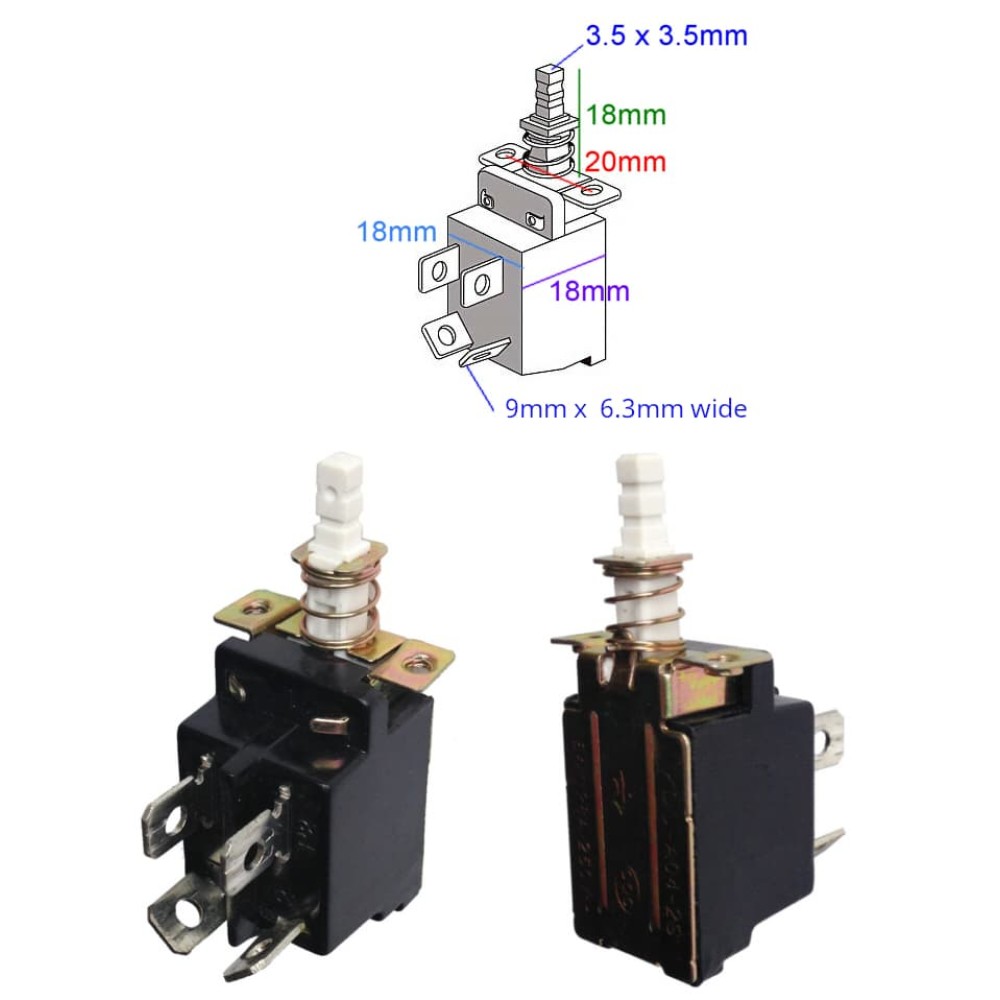

It has 4 spade terminals, which are 6.3mm wide.
Please check your machine connection diagram. A wrong connection
may blow the PSU up.
Condition: new
Requires 2x M3 screws (not supplied).
Full specifications for this product, verified against manufacturer data.
| Product size & weight | 5 x 2.5 x 2.8cm / 16gr. |
| Package size & weight | 25x20x2.5cm / 100gr. |
| Product Condition | Brand new. |
| Return | Return within 30 days if unwanted. |
| Made in | China. |
| Shipped from | United Kingdom. |
| Remarks | This is a self-latching permanent switch used in older AT PCs. NOT a temporary switch used in the newest ATX PCs. |
