5.25-inch to 3.5-inch/2.5-inch bay adaptor HDD/SSD cooler overview

5.25" Bay Adaptor Tray for 3.5" HDD or 2.5" SSD

0 reviews Write a review
Brand:Vanda Trading
Product Code: VT-HDD-Cooler-tray
Product available in stock : 15

  • £12.00

rightbanner
2 year warranty
on all new Power Supply Units
  • Free UK shipping:
    On ALL products
  • Fast shipping:
    Usually within 1 day
  • Worldwide shipping:
    Order from anywhere
  • 24/7 support:
    Contact us by E-mail
  • 100% satisfaction:
    30-day return policy
  • 2-year warranty:
    On ALL PSUs

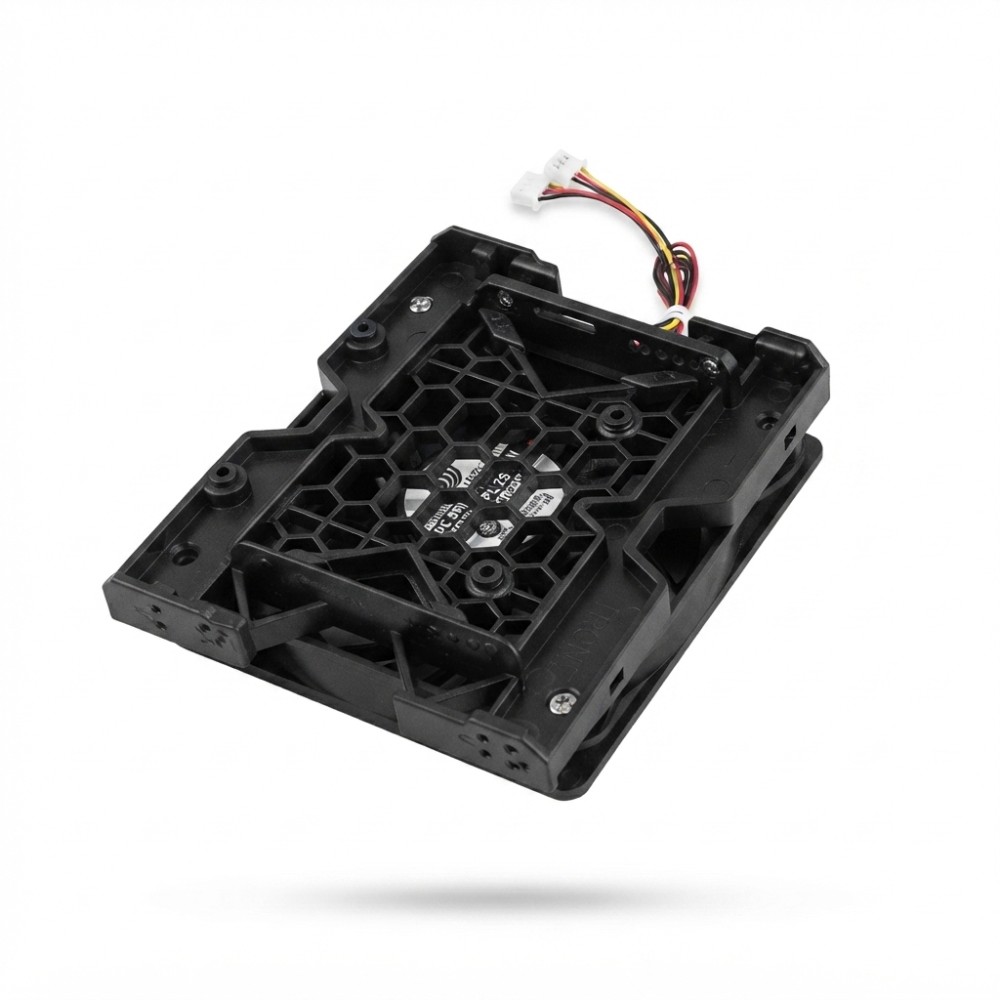

5.25" Bay Adaptor Tray for 3.5" HDD or 2.5" SSD Fan Included

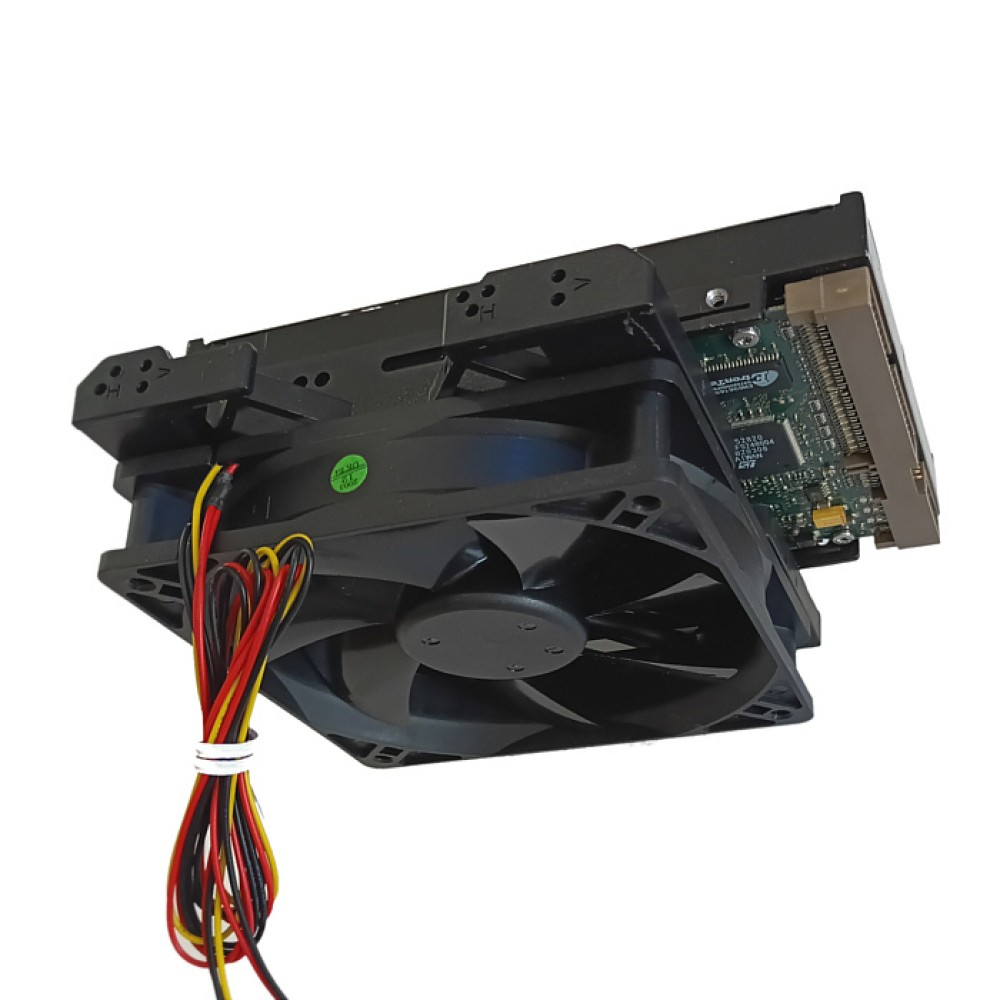

Mount a 3.5-inch hard drive or a 2.5-inch HDD/SSD in a spare 5.25-inch front bay, with an included 12cm cooling fan to keep the drive running cool.

Fits
3.5" HDD
2.5" HDD / SSD
12cm Cooling Fan
Any 5.25" Bay Case
Key Features
Dual Drive CompatibilityHolds one 3.5" HDD or one 2.5" HDD/SSD
12cm Cooling Fan IncludedPre-fitted 12V sleeve-bearing fan, removable
Dual Power Connection3-pin motherboard header or 4-pin Molex

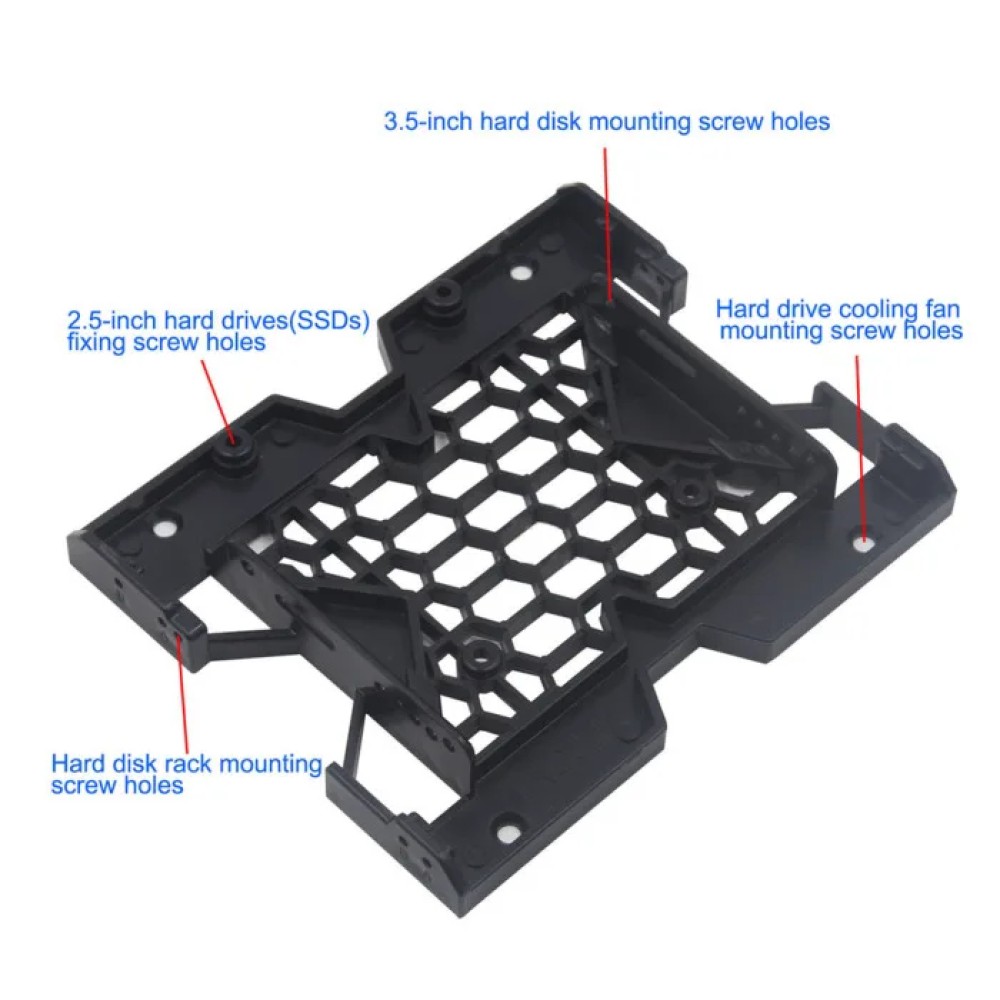

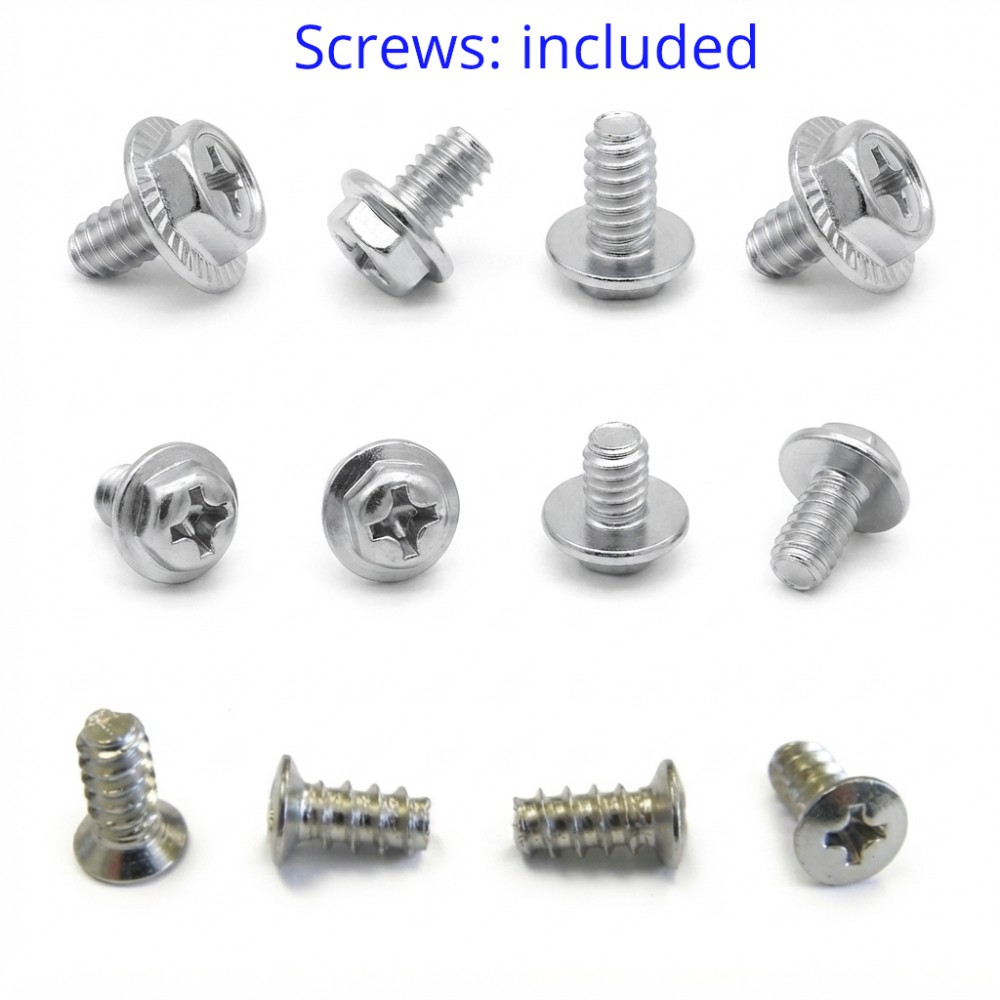

All Fixings Included6-32 UNC and M3 screws, fan screws pre-fitted

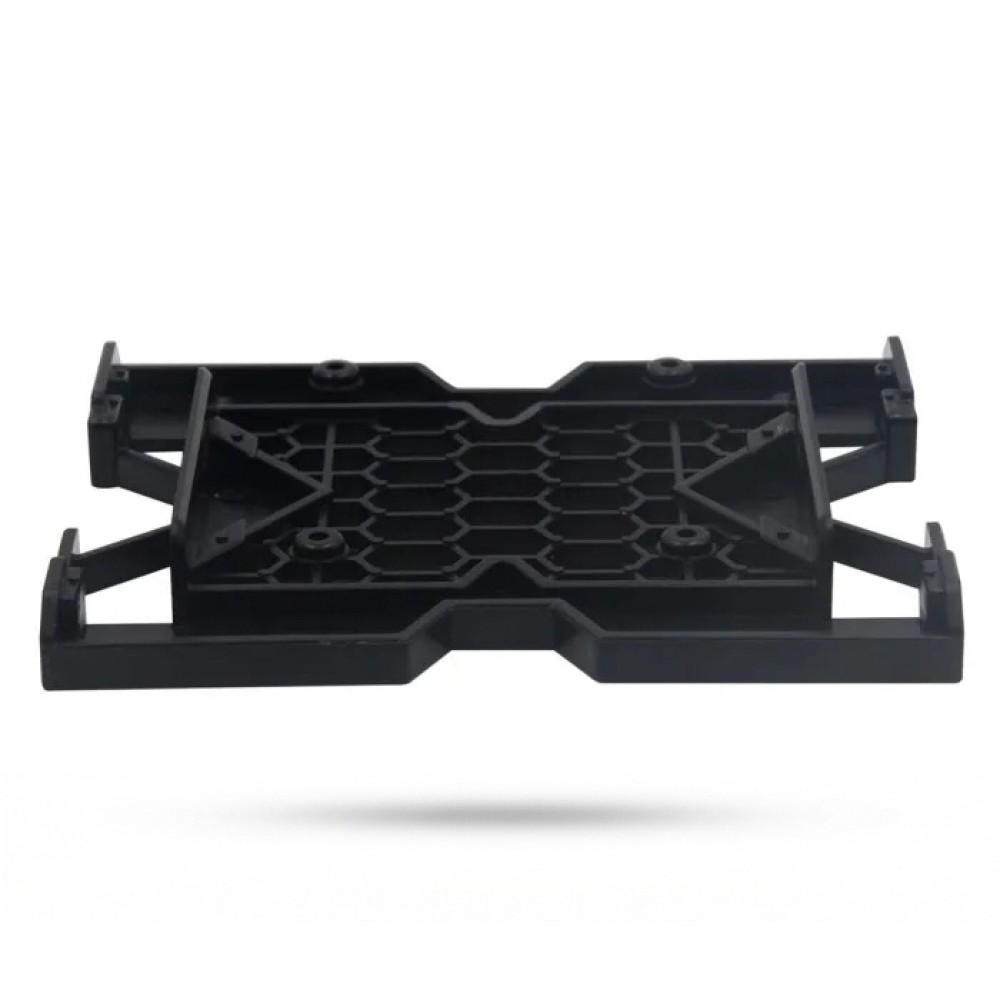

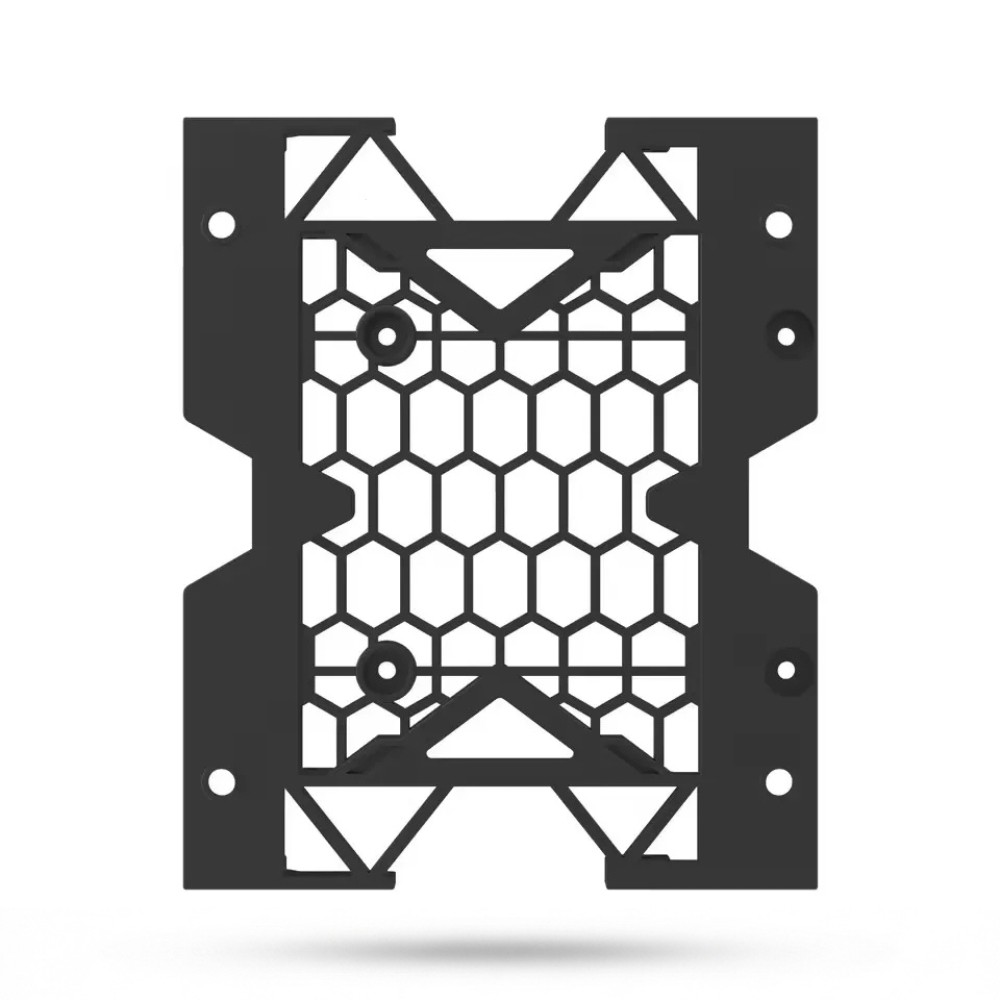

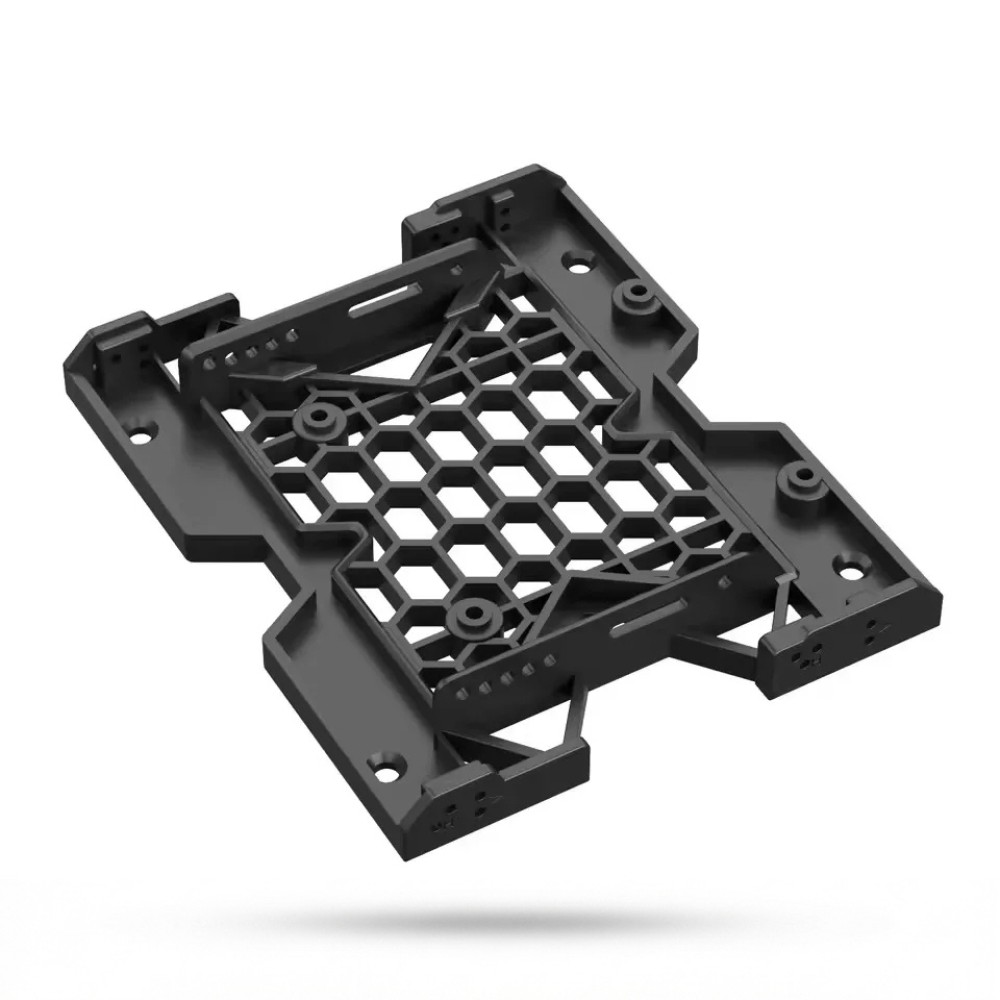

Durable Plastic ConstructionBlack moulded tray, universal fit
Flexible Bay Use2 bays with fan fitted, 1 bay without
At a Glance
Drive supportOne 3.5" HDD, or one 2.5" HDD/SSD
Cooling fan12cm, 12V, sleeve bearing, 3-pin + 4-pin Molex
MaterialBlack plastic
Dimensions145x120x20mm
In the boxTray, 12cm fan (pre-fitted), 4x 6-32 UNC screws, 4x M3 screws

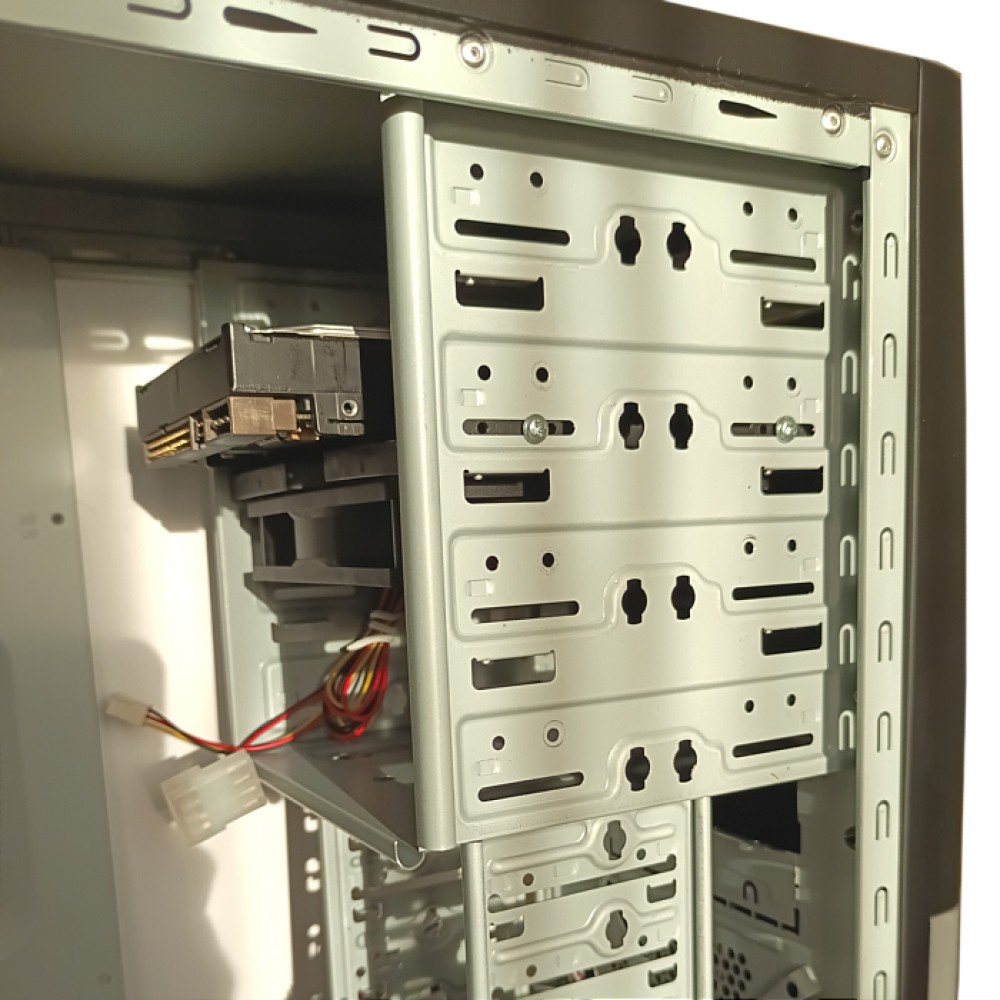

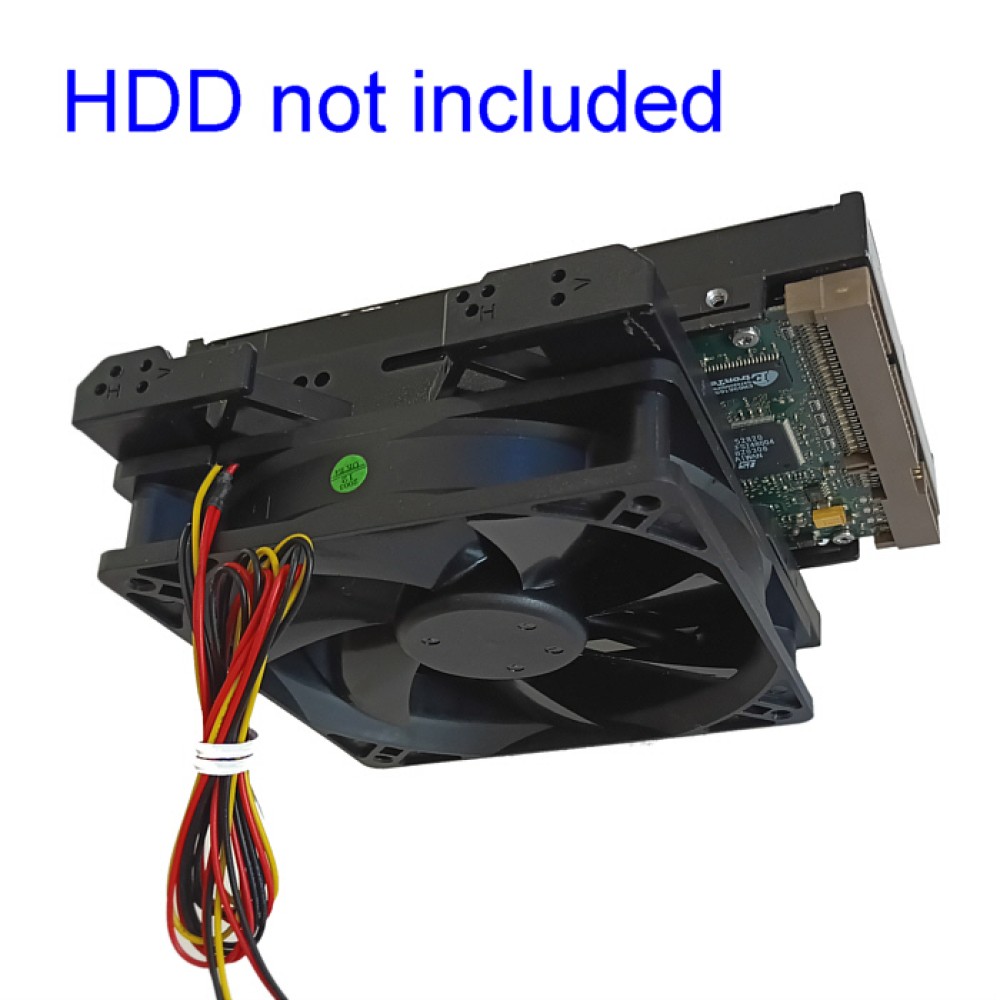

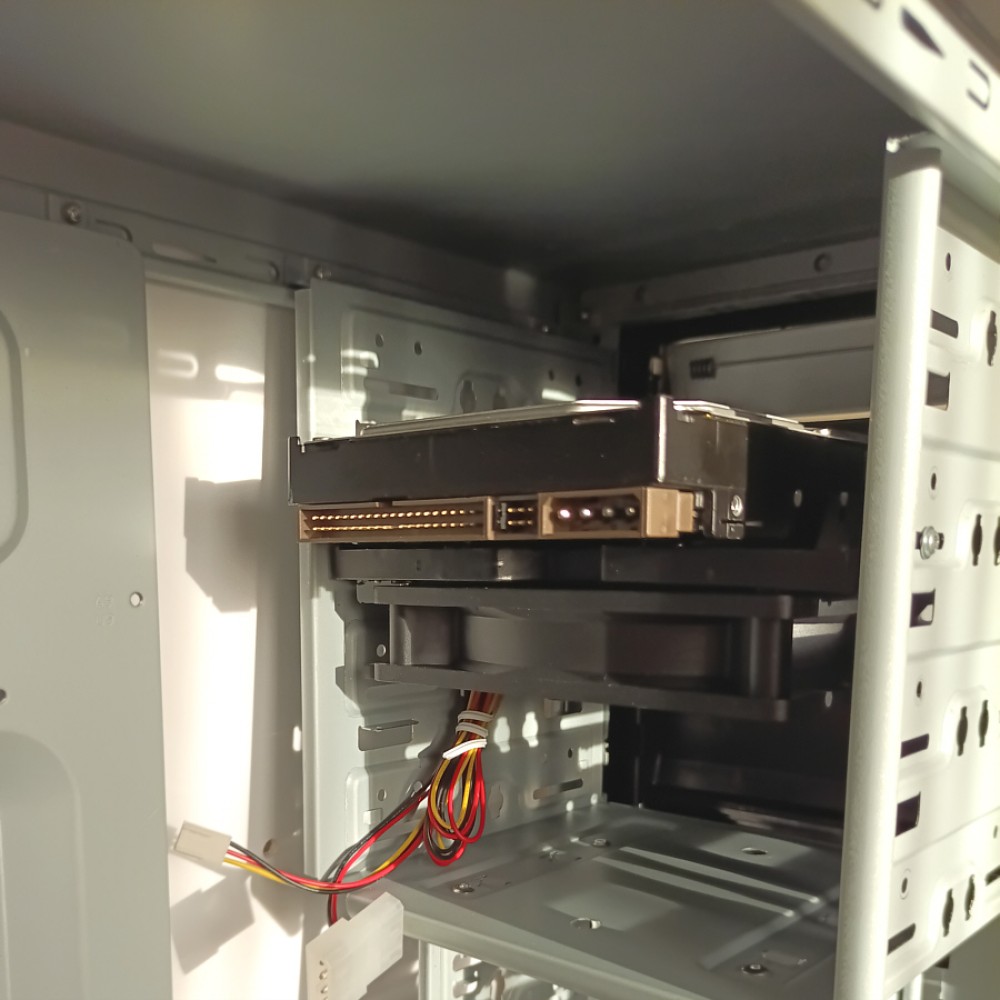

Bay space required: with the cooling fan fitted, the tray occupies two adjacent 5.25-inch bays. Removing the fan lets it fit into a single 5.25-inch bay. See the Compatibility List tab for full details. Hard drive shown in product images is for illustration only and is not included.
Technical Specifications

Full specifications for this product, verified against manufacturer data.

Specification
Model Number VT-HDD-Cooler-tray
Material Plastic
Colour Black
Ventilation 1x 120mm fan supplied. with 3pin motherboard connector and 4pin Molex PSU connector.
Product size & weight 14.5 x 12 x 2 cm / 5.7 x 4.7 x 0.8 inch / 0.2Kg
More Info
Package size & weight 20 x 20 x 10 cm / 7.8 x 7.8 c 3.9 inch / 0.3kg
Product Condition Brand new
Return Return accepted within 30 days if unwanted.
Made in China
Shipped from United Kingdom

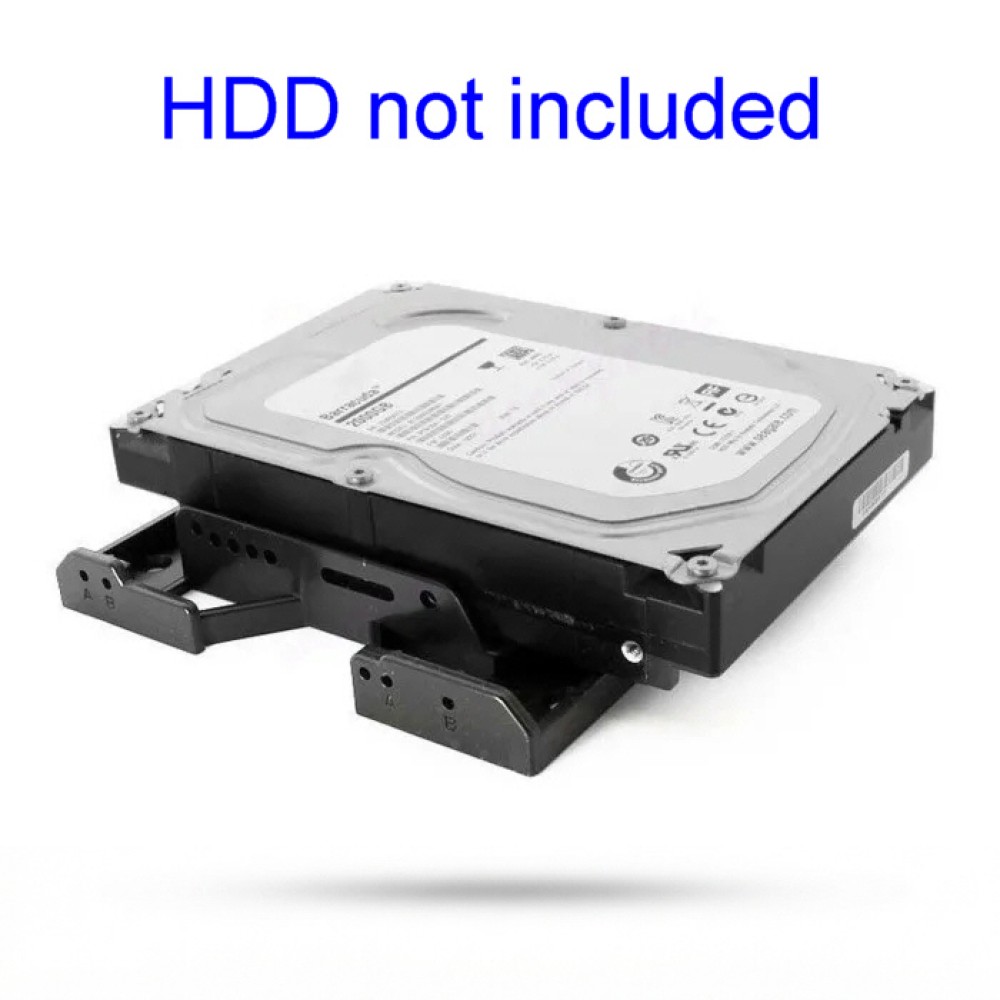

Remarks Requires two free 5.25" bays if the cooling fan is used. Requires only one bay if the fan is removed. The Hard Drive Disk pictured is for illustration only. It is not included in this package.
Need help confirming this is the right product for your system? Contact us with your existing part number or a photo and we will advise.
5.25" Bay Adaptor Tray Compatibility

This tray is universal - it isn't tied to a specific PC brand or model. Compatibility depends only on bay type and drive type.

Case Compatibility
Fits any desktop PC case with a free, unused external 5.25-inch bay (the type originally used for optical/DVD drives) - including full tower, mid tower and most micro-ATX cases with a 5.25-inch opening.
  • 2x adjacent 5.25" bays needed with the cooling fan fitted
  • 1x 5.25" bay needed with the cooling fan removed
Drive Compatibility

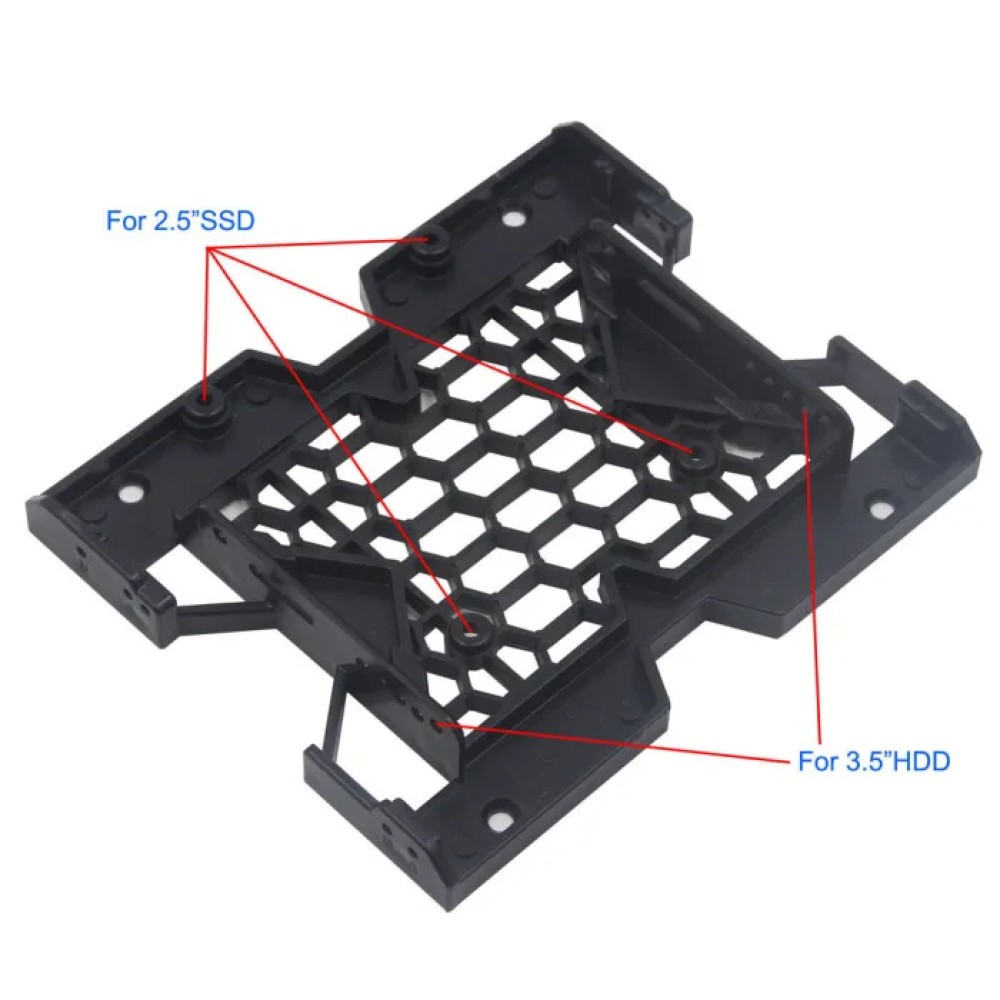

  • 3.5" HDD - secured with the included 6-32 UNC screws

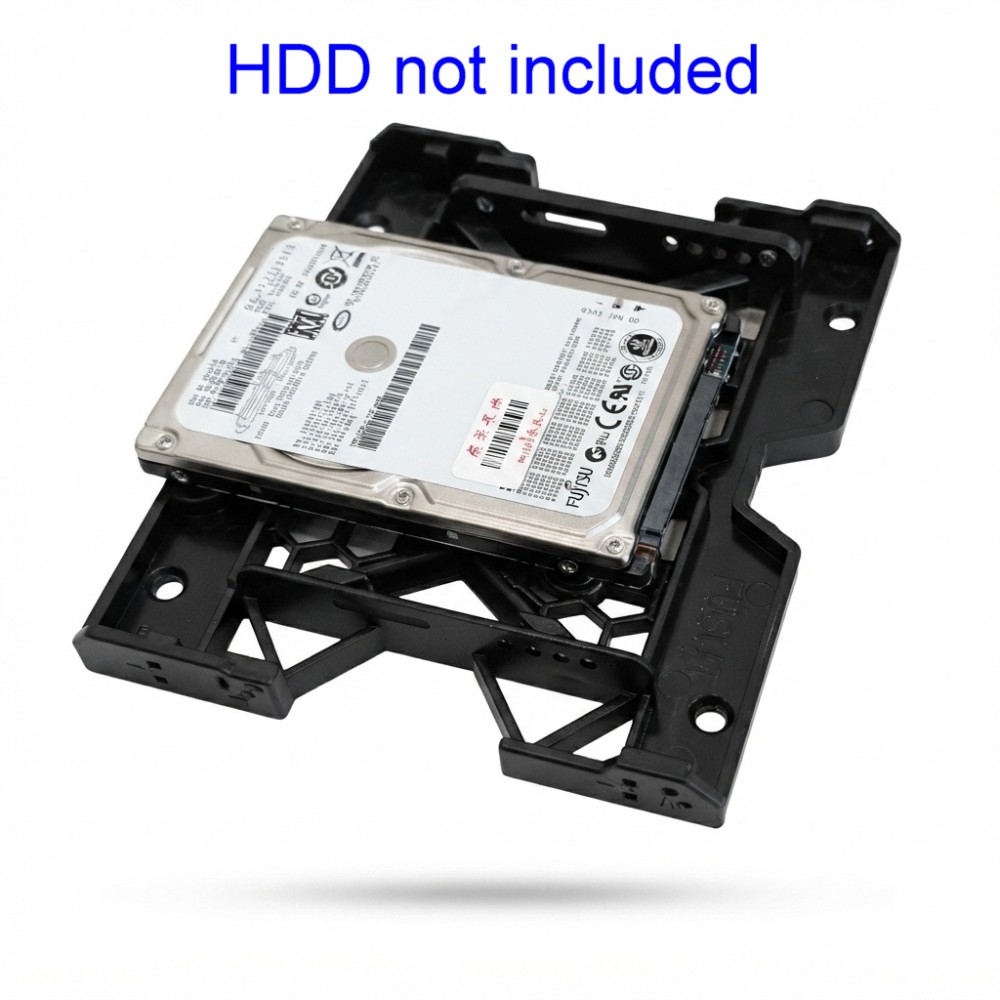

  • 2.5" HDD or SSD - secured with the included M3 screws
One drive per tray - holds either one 3.5" drive or one 2.5" drive, not both at once.
Cooling Fan Power

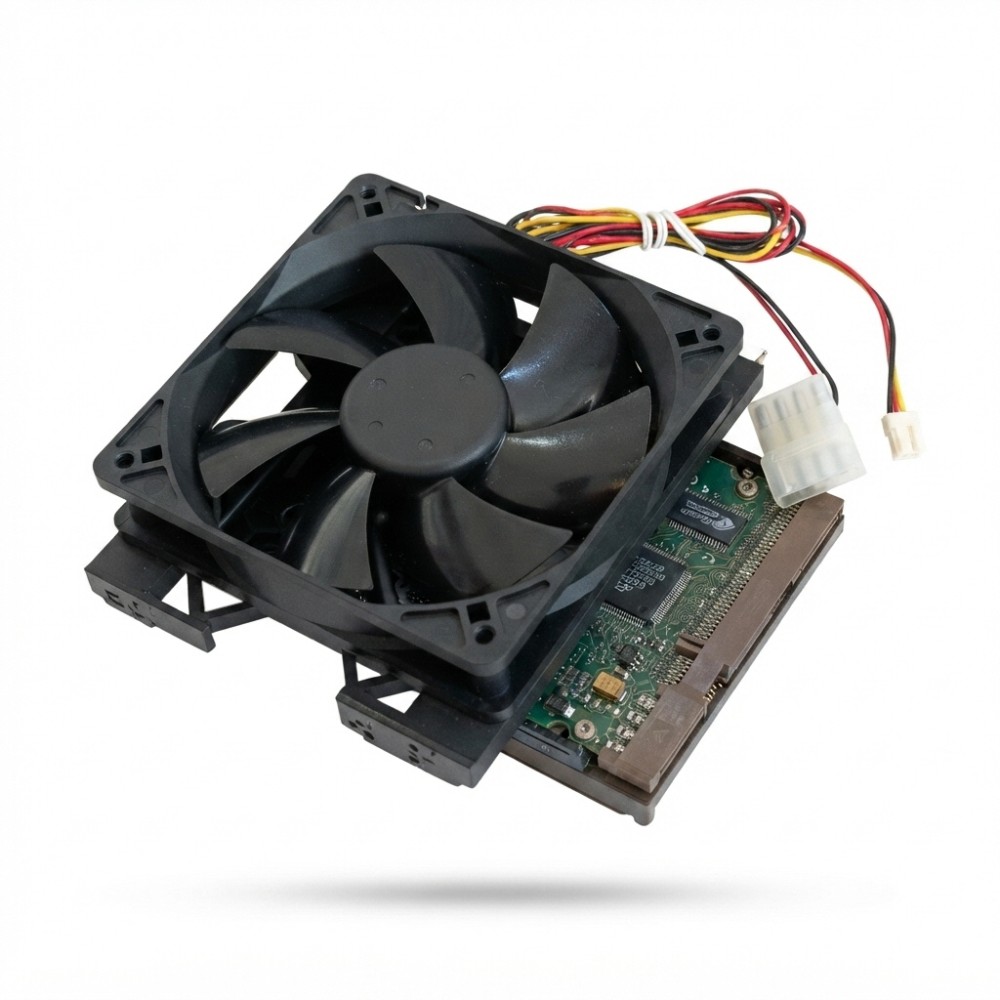

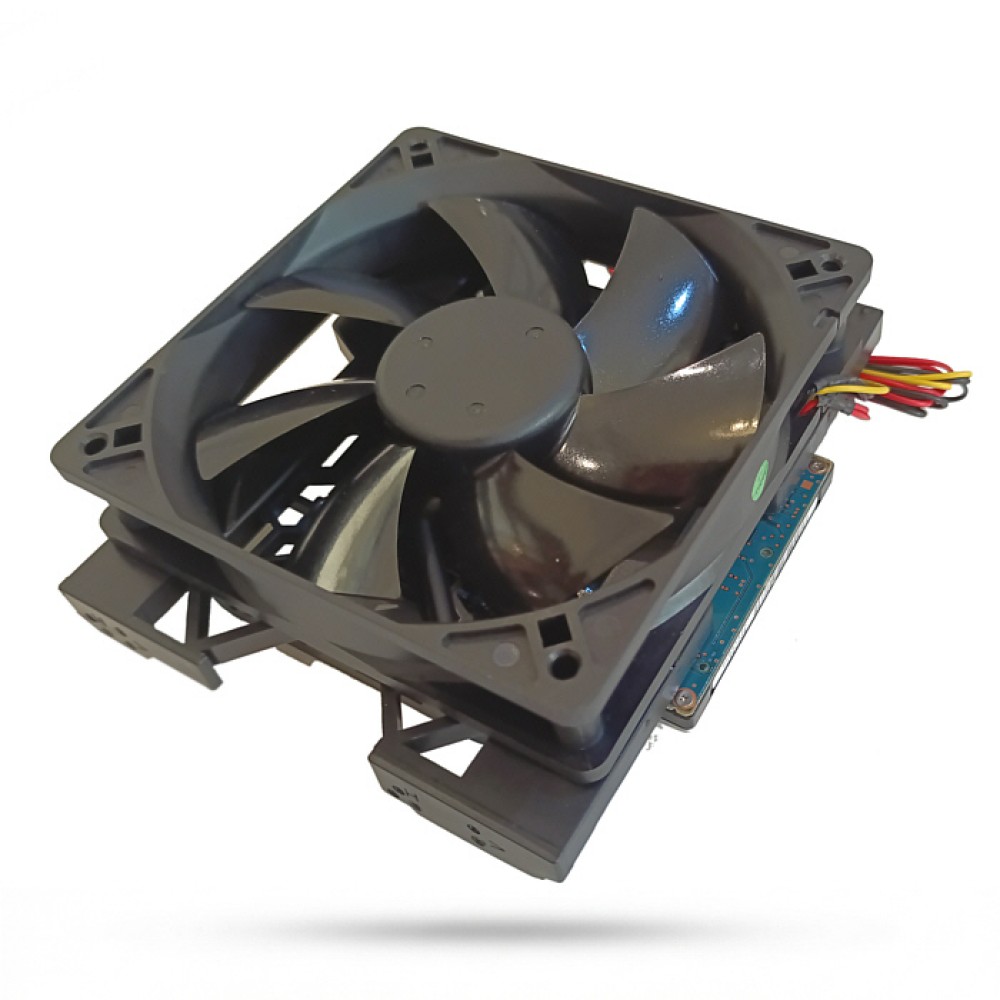

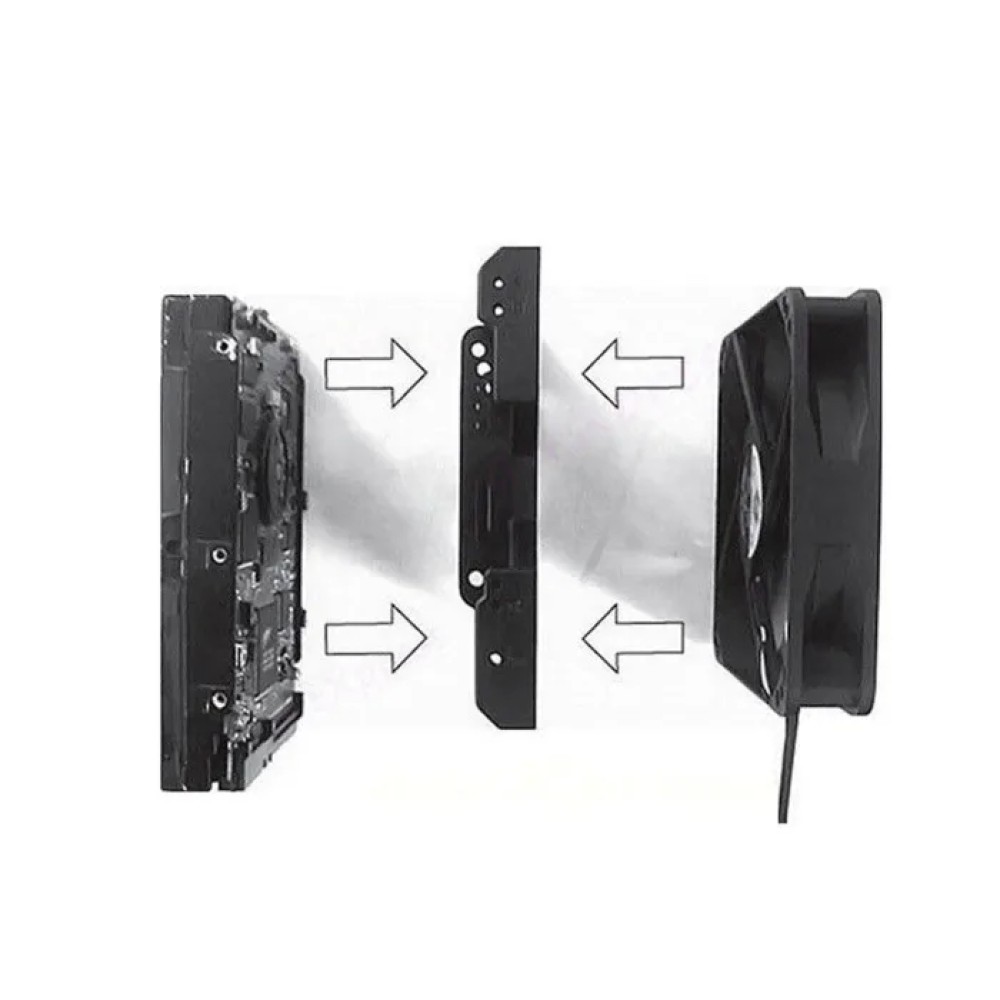

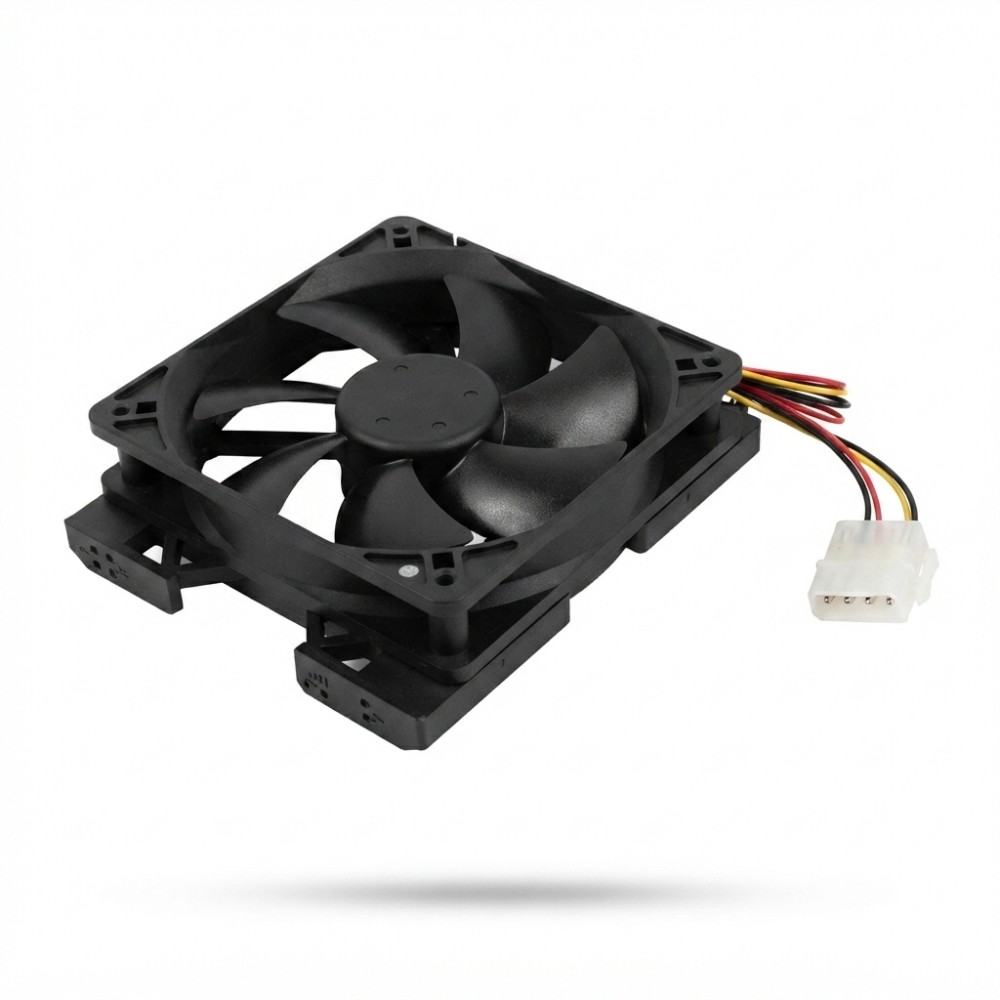

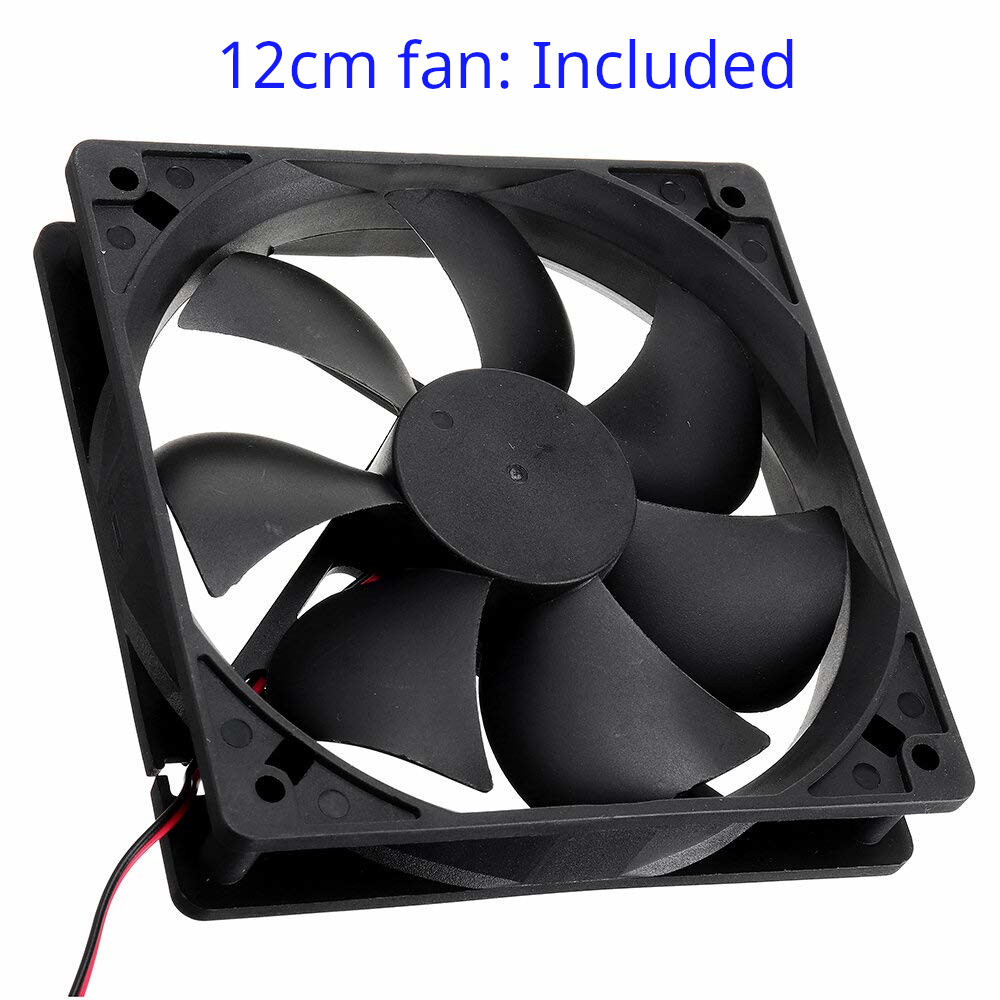

A 12cm (120mm) 12V sleeve-bearing fan is pre-fitted and included. It can be powered from a 3-pin motherboard fan header or a 4-pin Molex connector from the PSU.
Not sure it will fit your case? Contact us with a photo of your case's front bays and we're happy to confirm before you order.
