Technical Specifications
Full specifications for this product, verified against manufacturer data.
| Model Number |
PS-250AB-101-B PS-250AB-101-C Replacement PSU |
| AC Input |
Full range 110 - 230Volt. Suitable worldwide. With manual voltage selector. |
| Power Output |
400 Watt |
| Form Factor |
Micro ATX |
| Material |
Metal Casing |
| Colour |
Black |
| Ventilation |
1x 80mm fan. |
| Product size & weight |
6.3 x 12.5 x 10 cm / 2.5 x 4.9 x 3.9 inch / 0.8Kg |

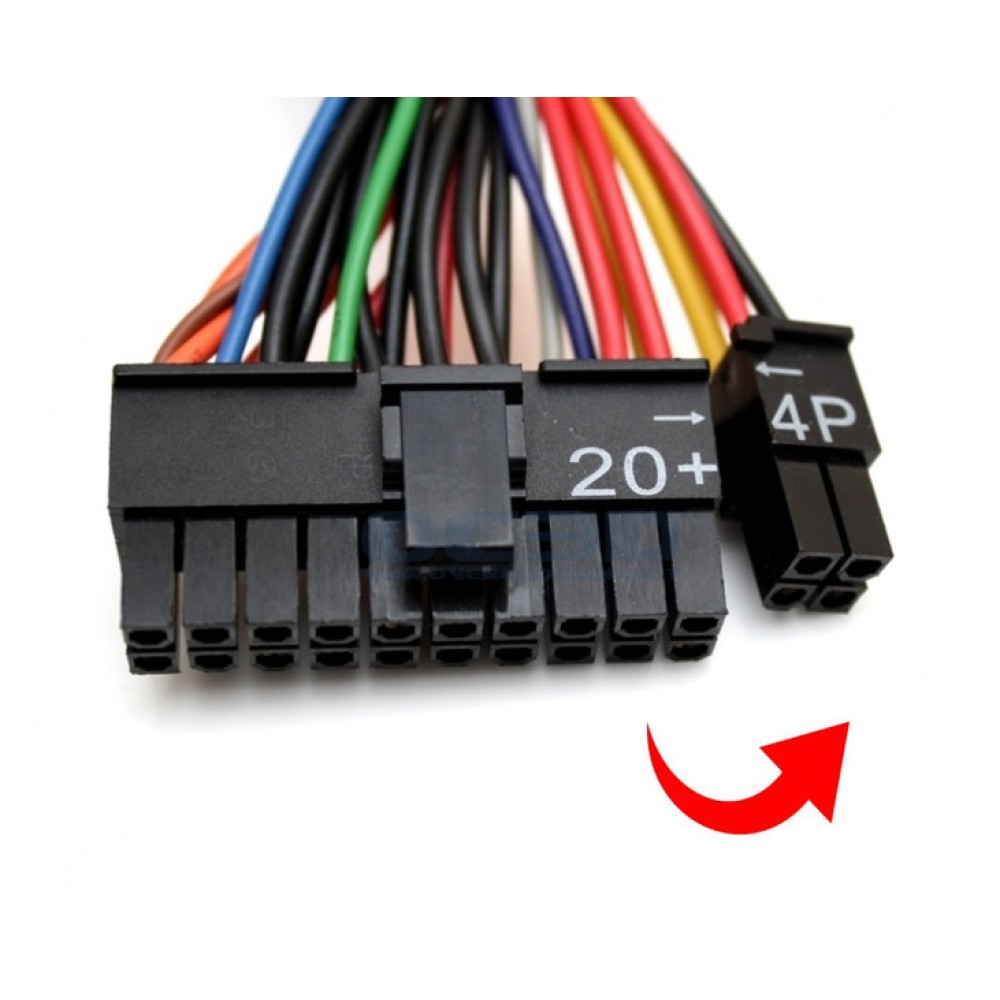

| 20/24-pin ATX |
1x 20+4-pin main connector for the motherboard. |
| SATA |
2x SATA connectors. |
| Floppy (Berg) |
1x Floppy Drive Berg connector. (67cm long). |

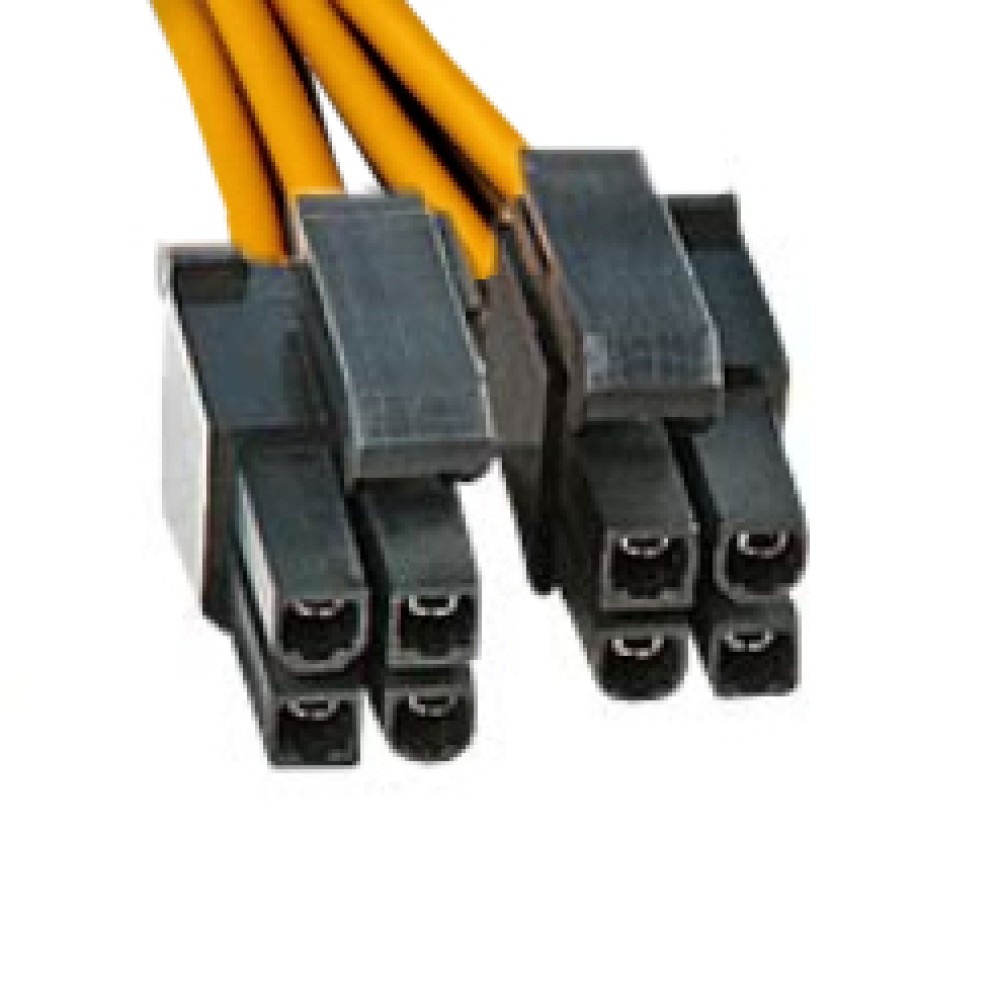

| 8-pin (4+4) CPU |
1x (4+4) pin 12V connector suitable for boards with 4pin or 8pin CPU socket. (46cm long). |
| 8-pin (6+2) PCI-E |
1x 6+2 pin PCI-E connector. (38cm long). |
| +12V1 |
25A |
| +5V |
14A |
| +3.3V |
8A |
| +5Vsb |
2A |
| -12V |
0.3A |
| Package size & weight |
30 x 20 x 10 cm / 11.8 x 7.8 c 3.9 inch / 1Kg |
| Product Condition |
Brand new |
| Warranty |
1 year standard warranty + 1 year FREE extended warranty = 2 year warranty. |
| Return |
Return accepted within 30 days if unwanted. |
| Made in |
China |
| Shipped from |
United Kingdom |
Need help confirming this is the right product for your system?
Contact us with your existing part number or a photo and we will advise.
