| Brand: | FSP |
| Product Code: | FSP300-60PLN -5V |
-High-quality branded 300 watt Power Supply Unit (PSU).
-With -5 volt rail (white wire) especially suitable for older systems and vintage computers with ISA bus.
-Optional 6pin flat Auxiliary ATX connector found on older motherboards.
-This PSU has an 80mm fan, making it ideal for slim chassis such as 2U 19inch industrial rackmounts, where a 120mm fan on top of the PSU would be obstructed by the lid.

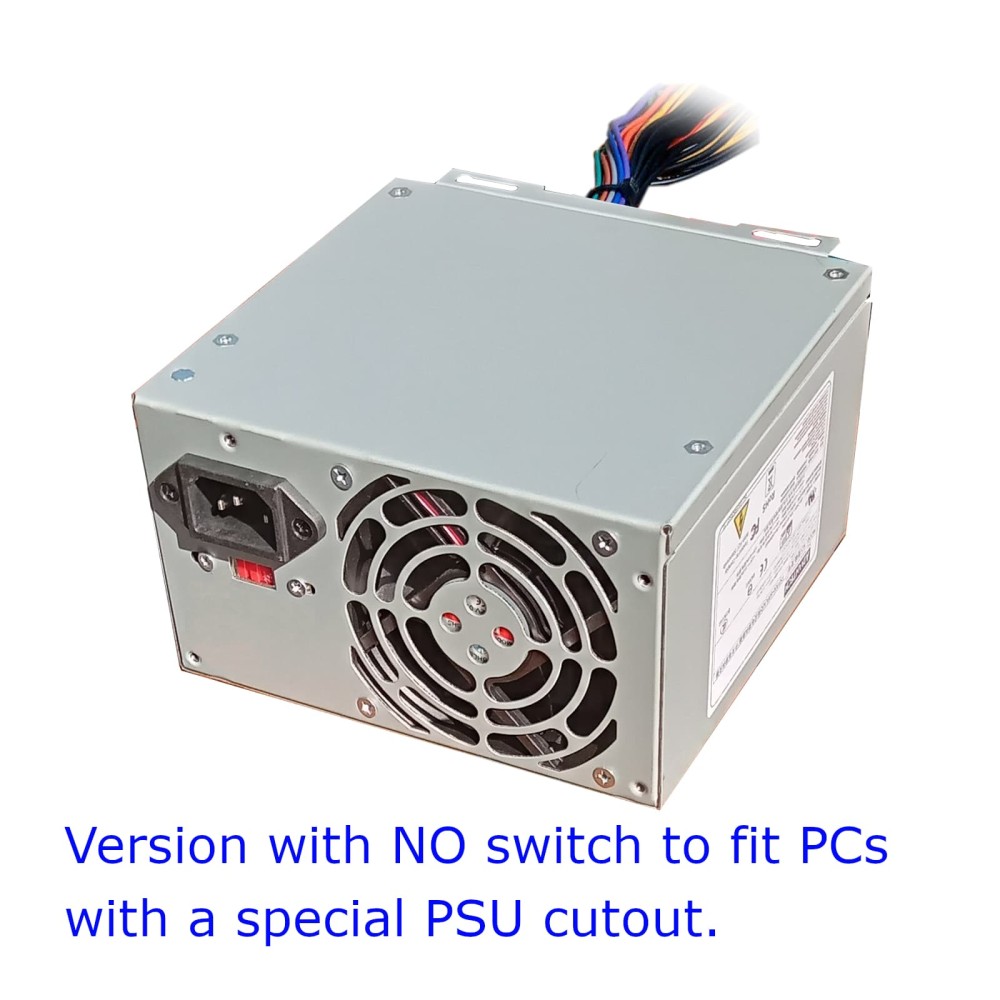

-Optional switch removal. This is ideal for computers where the PSU cutout does not allow the installation of a PSU with an on/off switch.
Full specifications for this product, verified against manufacturer data.

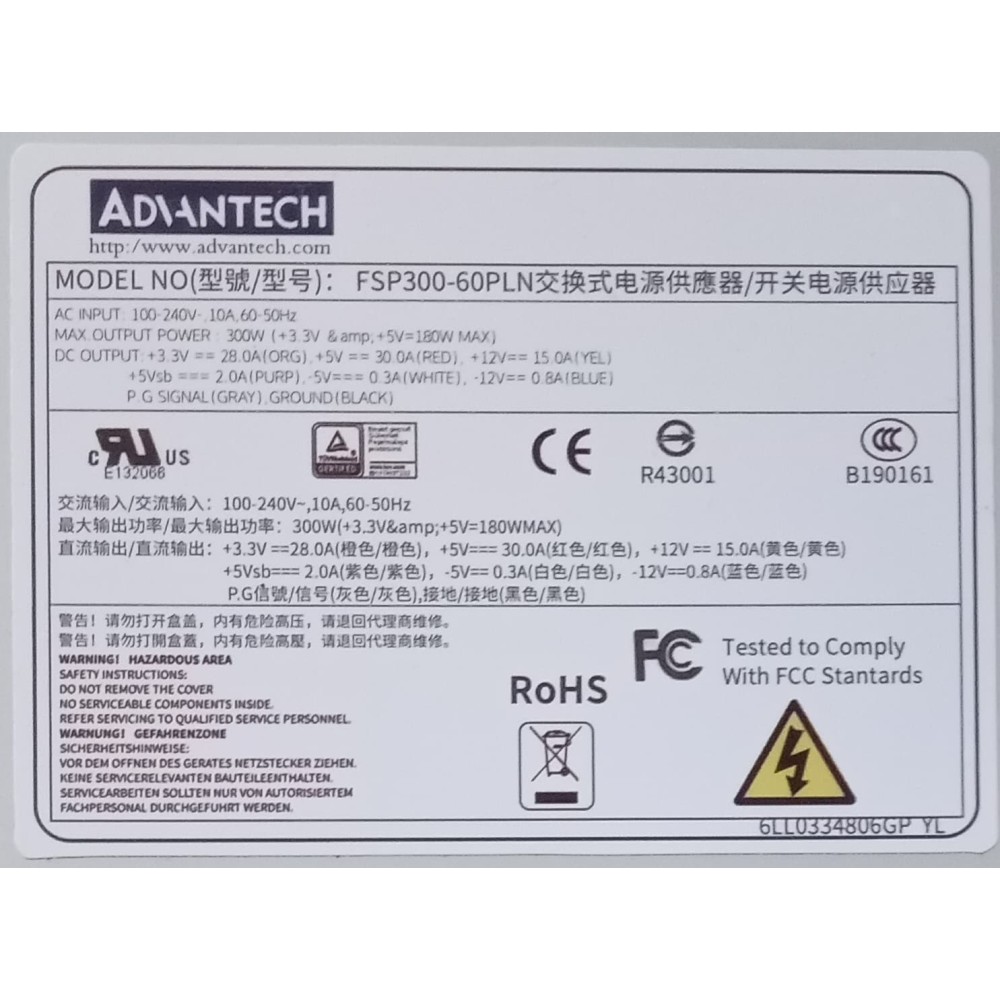

| Model Number | FSP300-60PLN |
| AC Input | Full range 110 - 230Volt. Suitable worldwide. With manual voltage switch. |
| Power Output | 300 Watt |
| PSU type | Standard ATX PS2 PSU. |
| Form Factor | ATX |
| Material | Metal Casing |
| Colour | Grey |
| Ventilation | 1x 80mm fan (near power socket). Ideal for slim chassis such as 2U rackmounts where the limited room under the lid does not allow ventilation with a 120mm fan on top of the PSU. |
| Safety Standards | Global approved: RU, TUV, CE, BSMI, CCC, FCC. |

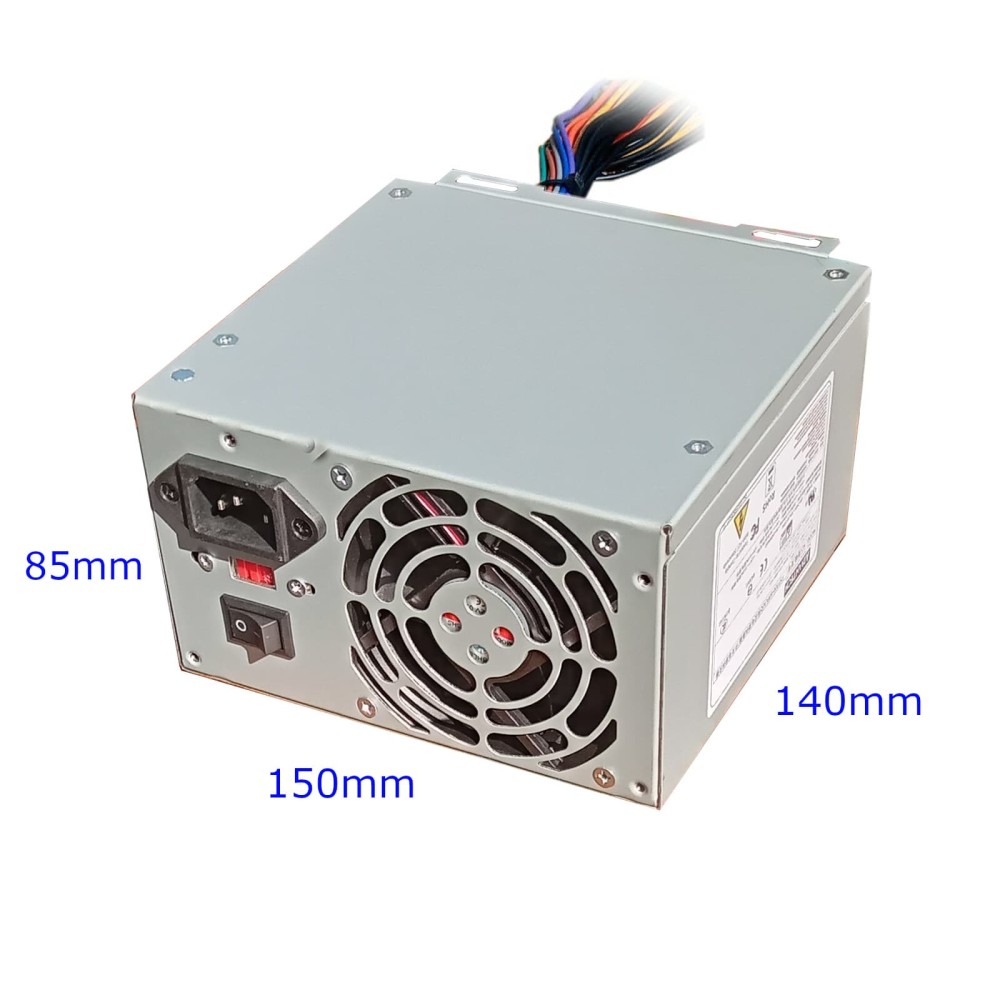

| Product size & weight | 8.5 x 14 x 15 cm / 3.35 x 5.51 x 5.9 inch / 1.4kg |

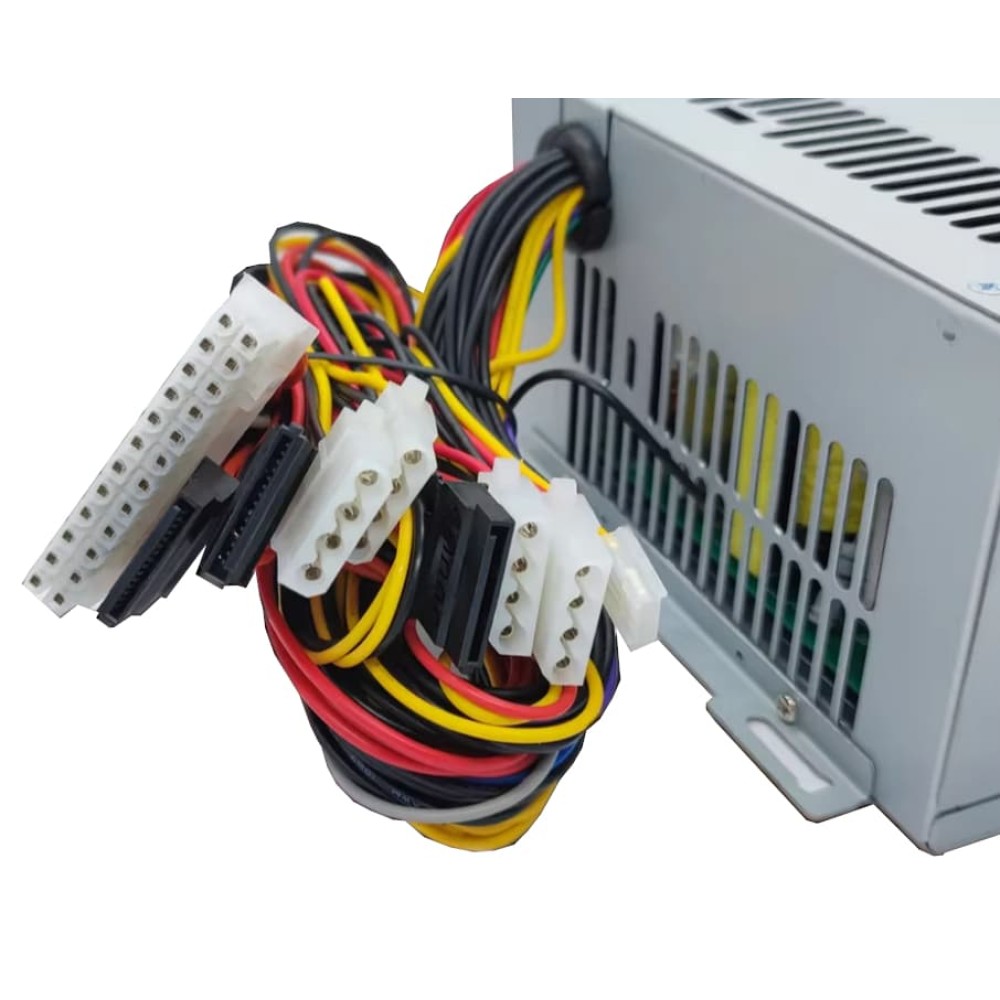

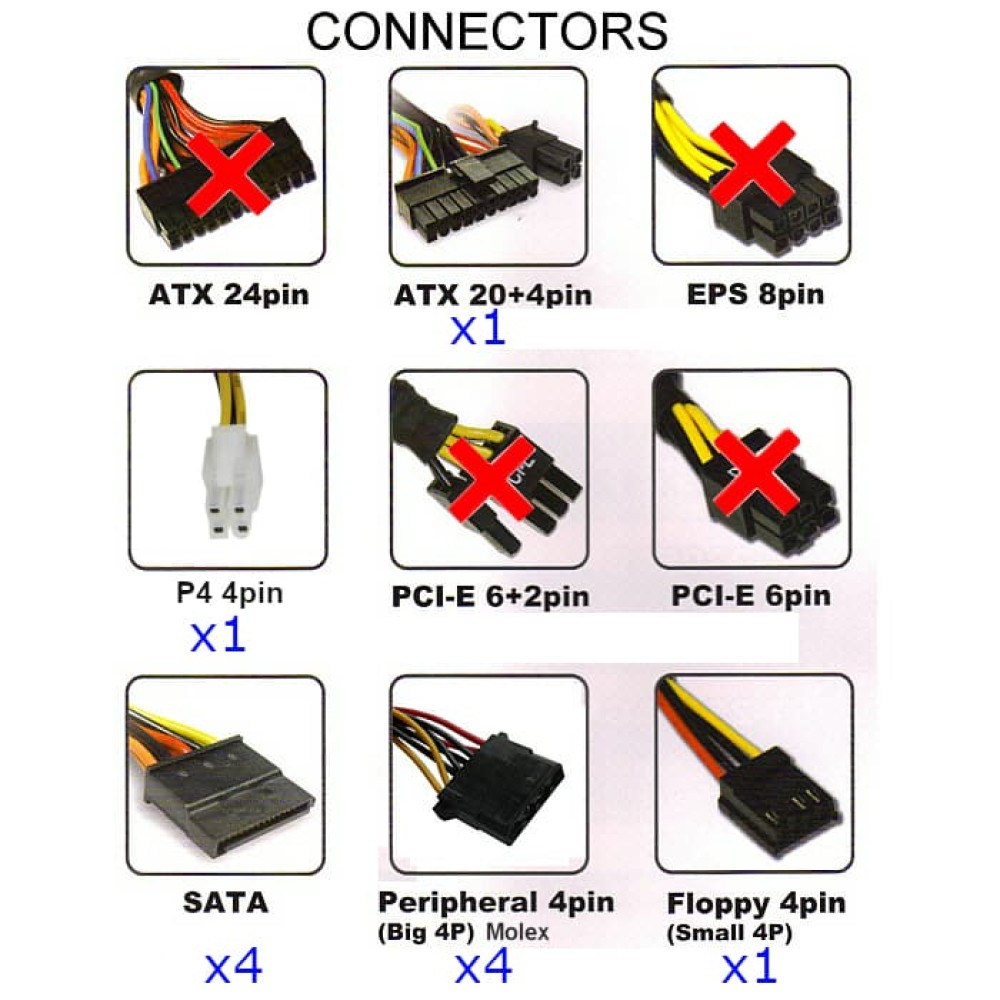

| 20/24-pin ATX | 1x (20+4) pin connector suitable for Motherboards with 20 or 24 pin socket. (41cm long). |
| Molex | 4x Molex connectors. |
| SATA | 4x SATA connectors. |
| Floppy (Berg) | 1x Floppy Drive Berg connector. |
| 4-pin CPU | 1x 12V 4pin P4 connector. |

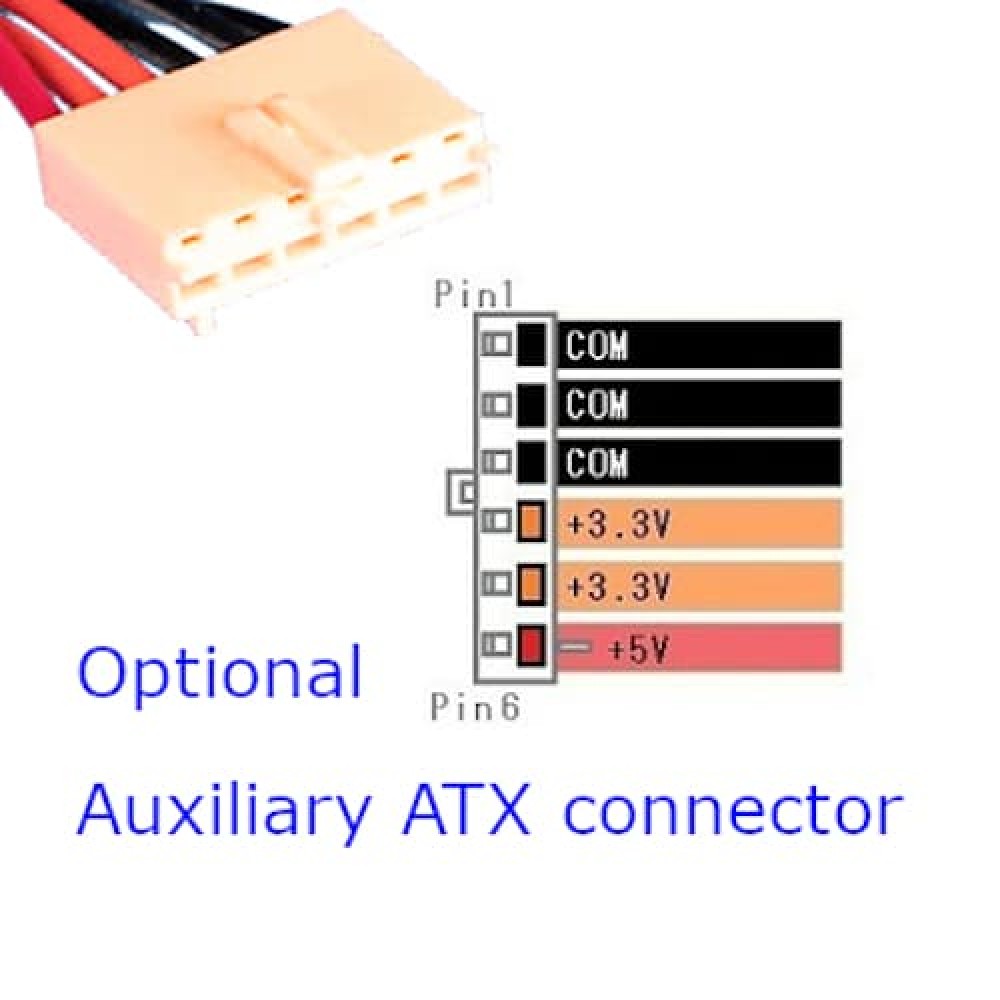

| Auxiliary ATX | Optional Auxiliary ATX 6pin flat connectors required on some older motherboards. |
| +12V1 | 15A |
| +5V | 30A |
| +3.3V | 28A |
| +5Vsb | 2A |
| -12V | 0.8A |
| -5V | 0.3A. This -5 Volt white wire is usually required on older types of motherboards for ISA bus. Now obsolete, This wire is not found on new PSUs. Check your requirements or old PSU. |
| Package size & weight | 30 x 20 x 10 cm / 11.8 x 7.8 c 3.9 inch / 1.8kg |
| Product Condition | Brand new |
| Warranty | 1 year standard warranty + 1 year FREE extended warranty = 2 year warranty. |
| Return | Return accepted within 30 days if unwanted. |
| Made in | China |
| Shipped from | United Kingdom |
| Remarks | Contact us with your old PSU model number and picture if you require assistance in finding a suitable replacement. It is advisable to test your old PSU before purchasing a new one (see last picture). |
