PSU kit for Synology RS2416+, RX1217, DS2411+, DX1211, DS3611XS, DS3612XS

PSU kit for Synology RS2416+, RX1217, DS2411+, DX1211, DS3612XS, DS3611XS

0 reviews Write a review
Brand:Vanda Trading
Product Code: PSU kit for Synology 2U servers
Product available in stock : 30

  • £25.00

  • 2 or more £23.00
rightbanner
2 year warranty
on all new Power Supply Units
  • Free UK shipping:
    On ALL products
  • Fast shipping:
    Usually within 1 day
  • Worldwide shipping:
    Order from anywhere
  • 24/7 support:
    Contact us by E-mail
  • 100% satisfaction:
    30-day return policy
  • 2-year warranty:
    On ALL PSUs
Synology 20-Pin PSU Kit SFX to PS2

Converts any standard SFX PSU into a PS2-format PSU with the special 20-pin connector required by select Synology 2U NAS units — solving the fan-clearance issue that affects the newest PS2 PSUs. PSU not included.

Kit Includes

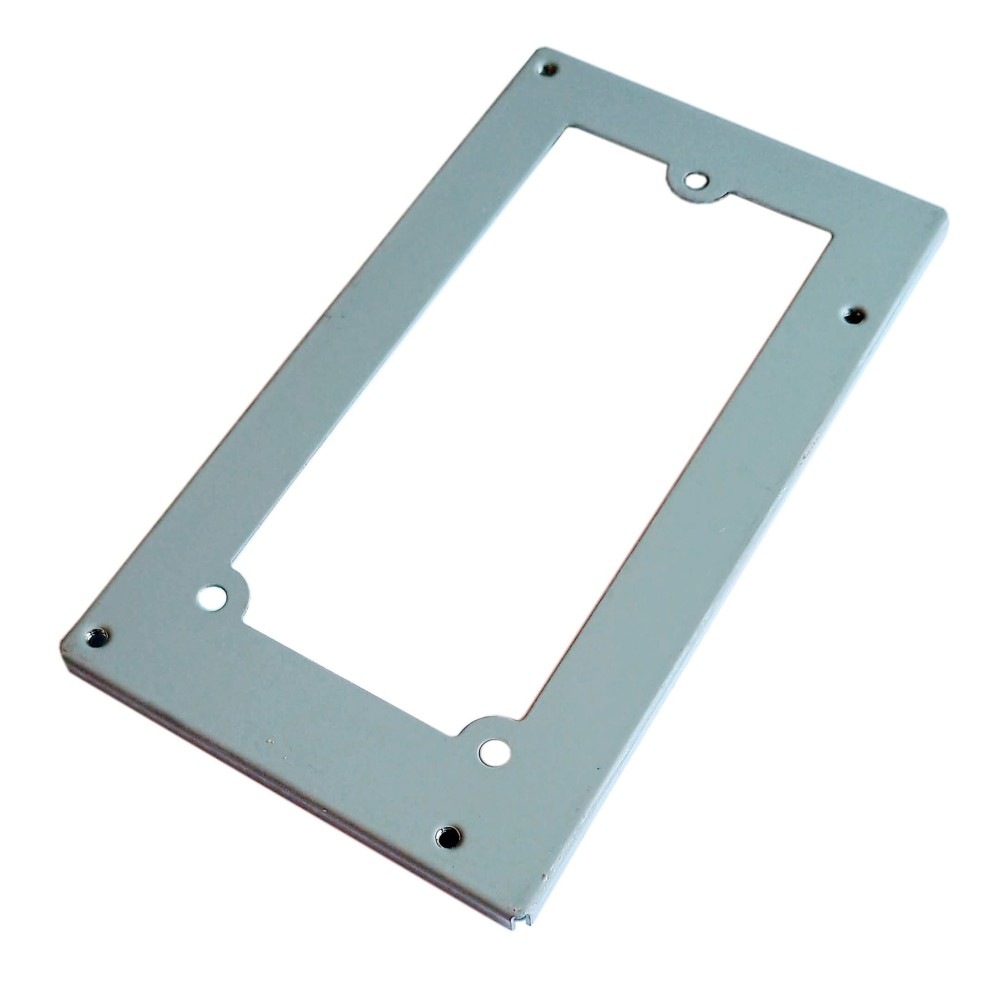

SFX to PS2 Adaptor Bracket1x bracket to mount an SFX PSU in a PS2 bay
20-Pin Synology AdaptorAttaches to 2x Molex and 1x SATA on your SFX PSU
Mounting ScrewsTo attach the adaptor to your SFX PSU
Why Get This Kit?
Original PSU DiscontinuedThe genuine Synology PSU is expensive and no longer made
Solves the Fan Clearance IssueNewest PS2 PSUs use a 12cm fan that's blocked by the case lid — an 8cm SFX fan avoids this
Watch: Compatibility Video
Watch Synology 20-pin PSU kit compatibility video Watch Compatibility Video

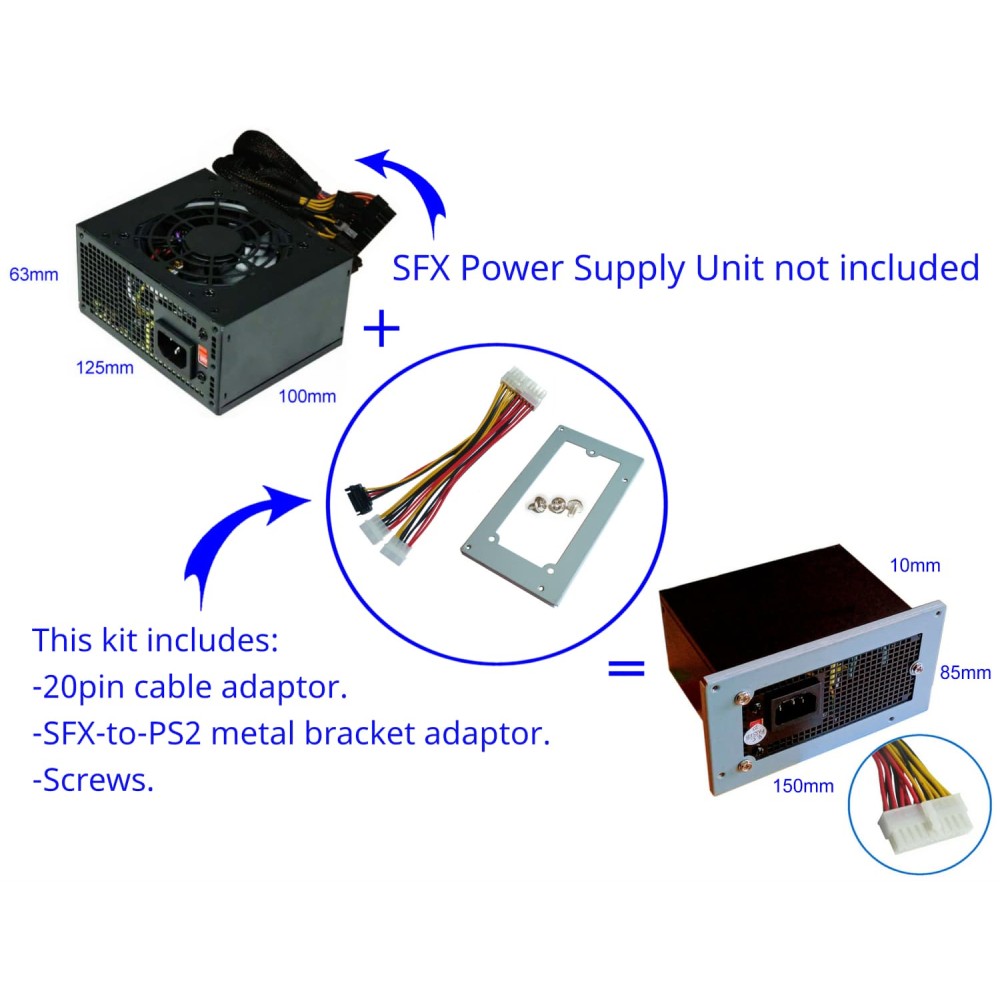

This kit does not include the Power Supply Unit. Converts a standard SFX PSU (63x125x100mm) into a PS2-format PSU (85x150x140mm) with the Synology 20-pin connector.
Not sure if this is the right kit? Use the Compatibility List tab to check your NAS model, or contact us with your model and a photo — we're happy to help find the right match.
Technical Specifications

Full specifications for this product, verified against manufacturer data.

Specification
Material UL1007, 18AWG.
Product size & weight 22cm long / 46gr.
Connectors

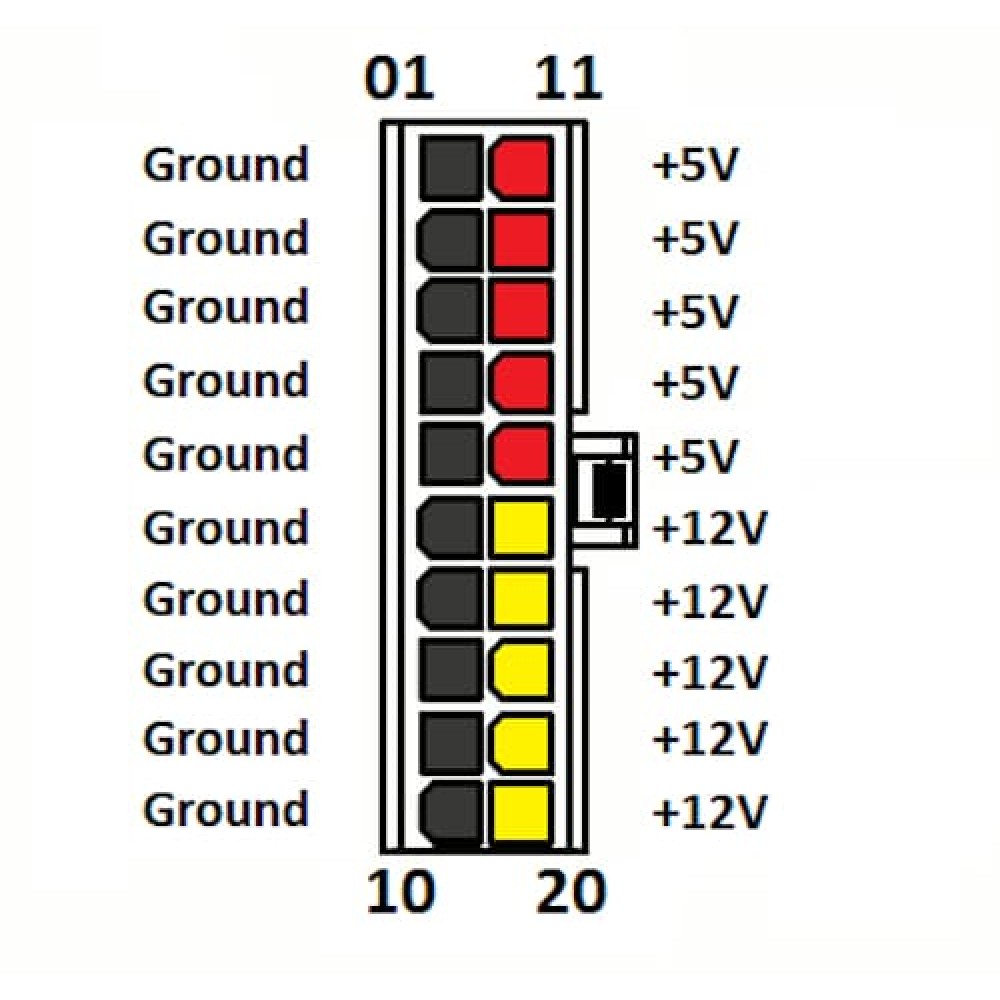

Other Connectors 20pin special Synology connector.
More Info
Package size & weight 25x20x2cm / 200gr.
Product Condition Brand new.
Return Return within 30 days if unwanted.
Made in China.
Shipped from United Kingdom.
Need help confirming this is the right product for your system? Contact us with your existing part number or a photo and we will advise.
Synology 20-Pin PSU Kit Compatibility List

Browse the PSU models this connector is found on, and the Synology and third-party machines this kit is suitable for. Use the search box to find your model instantly.

Found On These PSUs 3
  • PSU 400_1 (EAN: 4711174729234)
  • PSU 500_2 (EAN: 4711174729289)
  • PSU 500_4 (EAN: 4711174729166)
And more...
No matching PSUs found.
Compatible Machines 14
  • RS2416+
  • RX1217
  • DS2411+
  • DX1211
  • DS3612XS
  • DS3611XS
  • TS-H686
  • TS-1635AX
  • TL-D1600S
  • TS-H886
  • RS3618xs
  • RS2423+
  • RS2421+
  • RS2418+
And more...
No matching machines found.
Can't find your model? This list covers the most common compatible units but is not exhaustive. Used in conjunction with a standard SFX PSU, this kit fits a wider range of machines than listed. Contact us with your PSU or machine model number and a photo and we will confirm compatibility for you.
