Dell proprietary 20-pin and 6-pin PSU adaptor cable with coloured wired

Dell 20-pin and 6-pin PSU adaptor

0 reviews Write a review
Brand:Vanda Trading
Product Code: Dell 20-pin and 6-pin PSU converter
Product available in stock : 25

  • £25.00

  • 2 or more £23.00
rightbanner
2 year warranty
on all new Power Supply Units
  • Free UK shipping:
    On ALL products
  • Fast shipping:
    Usually within 1 day
  • Worldwide shipping:
    Order from anywhere
  • 24/7 support:
    Contact us by E-mail
  • 100% satisfaction:
    30-day return policy
  • 2-year warranty:
    On ALL PSUs
Exclusive to Vanda Trading — Not Available Anywhere Else
Dell 20-Pin + 6-Pin PSU Adaptor Cable 24-Pin to 20+6-Pin

This adaptor cable connects any standard ATX PSU with a 24-pin connector to Dell PCs requiring the proprietary 20-pin + 6-pin connector.

Compatible Systems
Dell Dimension Desktops
Dell OptiPlex Desktops
Dell PowerEdge Servers
Dell Precision Workstations
Any Standard 24-Pin ATX PSU
Desktop & Workstation Replacements
Key Features
24-Pin to Dell Proprietary AdaptorStandard 24-pin ATX connector on the PSU side, proprietary 20-pin + 6-pin on the Dell side
+3.3V 6-Pin OutputCorrect voltage matched to the original Dell wiring
Replaces PS-5201-8D2 / 0824KHDirect replacement for common Dell PSU references and many more
40cm LengthDirect plug-in fit, no soldering or modification required
UL1007 18AWG WireQuality-rated cable construction
LightweightJust 70g, minimal cable bulk inside your case
Exclusive to Vanda TradingNot sold by any other supplier — this proprietary Dell connector is unavailable elsewhere
Watch: Compatibility Video
Watch Dell 20-Pin 6-Pin PSU Adaptor compatibility video Watch Compatibility Video

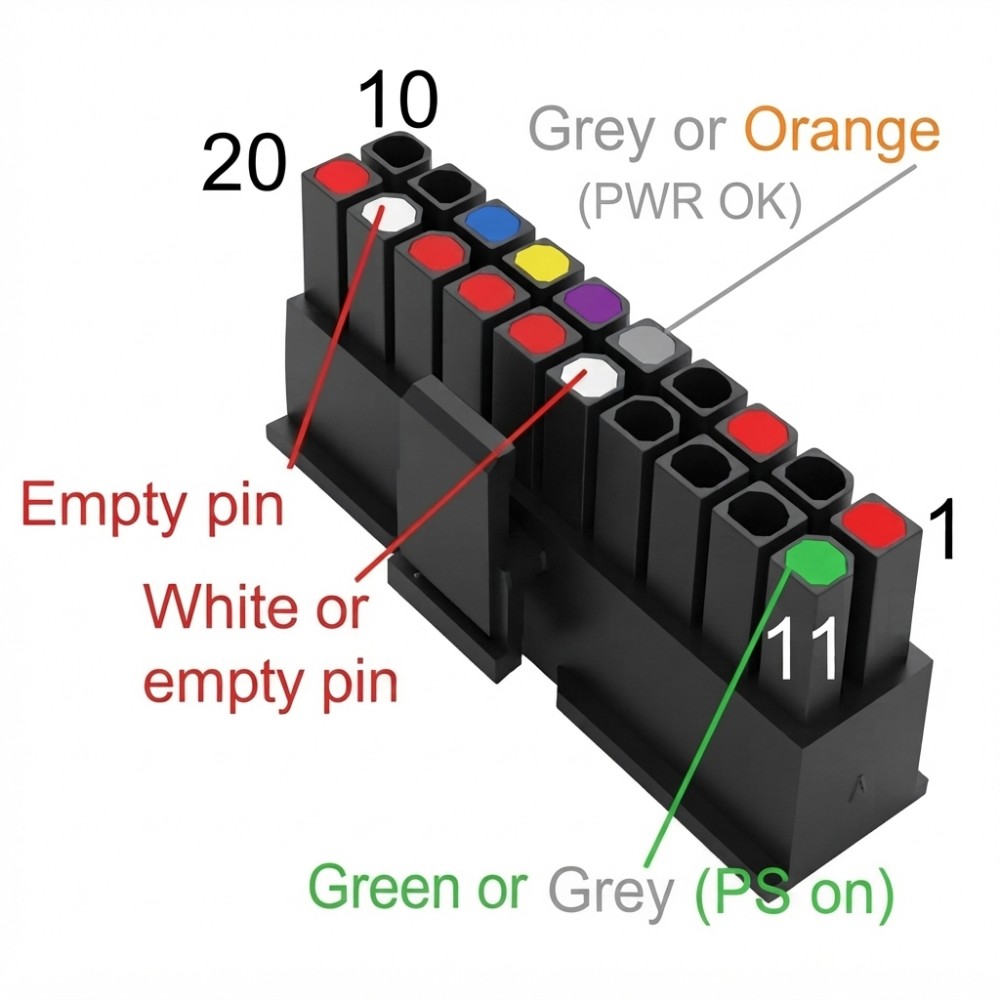

Wire colours may differ slightly from the original Dell PSU, but the voltage each wire carries is correct — check the pinout image in the gallery above to confirm.
Rare PSU variant: to match the original Dell proprietary PSU and fit some systems, your replacement PSU may need an 8cm fan, a power socket in a specific location, no ON/OFF switch, and a -5V white wire. This type is uncommon — if you need one, see our Dell Proprietary PSU.
Not sure if this is the right adaptor? Use the Compatibility List tab to search for your model, or contact us with your old PSU model number and a photo — we're happy to help find the right match.
Technical Specifications

Full specifications for this product, verified against manufacturer data.

Specification
Material UL1007, 18AWG.
Product size & weight 40cm / 70gr.
Connectors
Other Connectors Dell Proprietary 20pin connector + 6-pin flat connector with +3.3-volt output.
More Info
Package size & weight 25x20x2cm / 100gr.
Product Condition Brand new.
Return Return within 30 days if unwanted.
Made in China.
Shipped from United Kingdom.
Remarks - Some wire colors may be slightly different from the original PSU but the voltage they carry is correct. Check pinout picture. -In order to match the original Dell proprietary PSU and in order to fit your PC, Your PSU may require an 8cm fan, a power socket at a specific location, no ON/OFF switch and a -5Volt white wire. This type of PSU is rare. If required, click on the related PSU link below.
Need help confirming this is the right product for your system? Contact us with your existing part number or a photo and we will advise.
Dell 20-Pin + 6-Pin PSU Adaptor Compatibility List

Browse compatible original PSU part numbers and Dell computers. Use the search box to find your model instantly.

This 20-Pin Connector Is Found On 15
  • 00006081
  • 0009228C
  • 0824KH
  • 7668U
  • 824KH
  • Dell 87346
  • NPS-200PB-123A
  • PA-5201-7D
  • PS-5201-1D
  • PS-5201-1D1
  • PS-5201-1D1A
  • PS-5201-5D
  • PS-5201-7D
  • PS-5201-8D2
  • PS-5231-1
And more...
No matching PSUs found.
Compatible Computers 35
  • Dimension 2100
  • Dimension 4100
  • Dimension B1000R
  • Dimension LxxxC
  • Dimension LxxxCX
  • Dimension LxxxCXE
  • Dimension LxxxR
  • Dimension P90t
  • Dimension V350
  • Dimension V400
  • Dimension XPS B Series
  • Dimension XPS Dxxx
  • Dimension XPS Mxxx
  • Dimension XPS P133c MT
  • Dimension XPS Pro 180n
  • Dimension XPS Rxxx
  • Dimension XPS Txxx
  • OptiPlex E1
  • OptiPlex G1 tower
  • OptiPlex GN
  • OptiPlex GN+
  • OptiPlex GX1 tower
  • OptiPlex GX100
  • OptiPlex GX110
  • OptiPlex GX115
  • OptiPlex GX200
  • OptiPlex GX300
  • OptiPlex GXa
  • OptiPlex GXA-EM
  • OptiPlex GXi
  • OptiPlex K2 Small Mini-Tower Systems (SMT)
  • PowerEdge 2100
  • PowerEdge 2200
  • Precision Workstation 210
  • Precision Workstation 220
  • Precision Workstation 400
And more...
No matching computers found.
Can't find your model? This list covers the most common compatible units but is not exhaustive. Contact us with your PSU or computer model number and a photo and we will confirm compatibility for you.
