Dell Proprietary PSU with 20-pin & 6-pin connectors

Dell Proprietary PSU with 20-pin & 6-pin connectors

0 reviews Write a review
Brand:FSP
Product Code: Dell Proprietary PSU with 20-pin & 6-pin connectors
Product available in stock : 30

  • £68.00

  • 2 or more £66.00

Available Options

rightbanner
2 year warranty
on all new Power Supply Units
  • Free UK shipping:
    On ALL products
  • Fast shipping:
    Usually within 1 day
  • Worldwide shipping:
    Order from anywhere
  • 24/7 support:
    Contact us by E-mail
  • 100% satisfaction:
    30-day return policy
  • 2-year warranty:
    On ALL PSUs

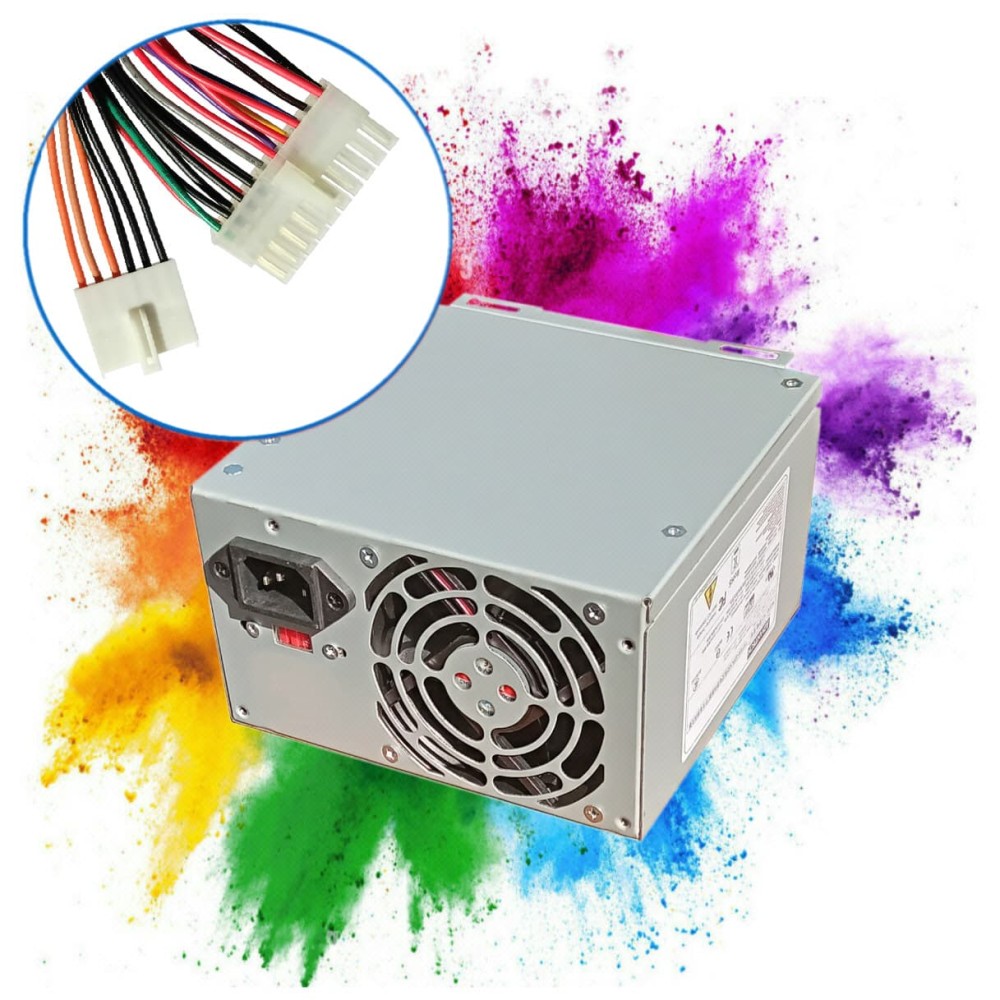

High-quality branded 300-watt Power Supply Unit (PSU) suitable for various Dell computers requiring a Dell proprietary 20-pin and 6-pin connectors, such as PS-5201-8D2, 824KH, PA-5201-7D and many more...

Check your connector requirements.


This alternative PSU is engineered to meet or exceed original equipment specifications, delivering superior performance compared to your outdated OEM unit while providing significant cost savings. Featuring cutting-edge technology, it transforms into a genuine upgrade for your PC, boosting both performance and reliability well beyond your system's original capabilities.



Key Benefits:

  • Effortless Installation: True plug-and-play design requires no technical expertise or modifications.
  • Guaranteed Compatibility: Engineered specifically for all listed models with perfect fitment.
  • Built to Last: Professional-grade components ensure years of reliable operation and extended lifespan.
  • Superior Performance: Matches or exceeds your original OEM unit's specifications while delivering enhanced efficiency.



Before making a Purchase, please verify your specific system model against the compatibility list to ensure a proper fit and optimal performance.




Press "CTRL + F" to find your PSU or PC in the lists below or contact us with your query or product picture.

This PSU replaces the following PSUs:
This PSU is compatible with the following computers:

00006081

0009228C

0824KH

7668U

824KH

Dell 87346

HP-233SD

NPS-200PB-123A

PA-5201-7D

PS-5201-1D

PS-5201-1D1

PS-5201-1D1A

PS-5201-5D

PS-5201-7D

PS5201-802

PS-5231-1

And more...

Precision Workstation 210

Precision Workstation 220

Precision Workstation 400

Dimension 2100

Dimension 4100

Dimension XPS

Dimension L500CX

Dimension P90t

OptiPlex E1

OptiPlex G1

OptiPlex GX1

OptiPlex GXA-EM

OptiPlex GX100

OptiPlex GX110

OptiPlex GX115

OptiPlex GX200

OptiPlex GX300

OptiPlex K2 Small Mini-Tower Systems (SMT)



And more…



Specification

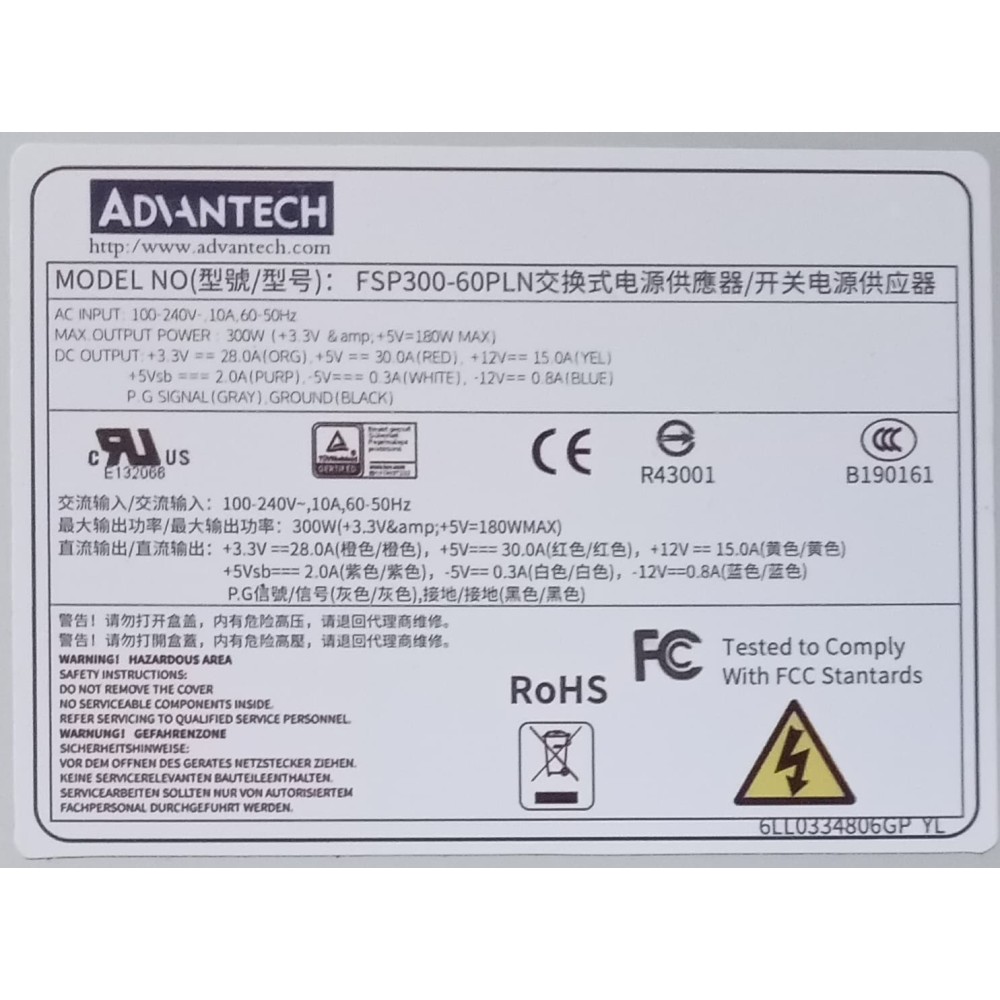

Model Number FSP300-60PLN (Dell)

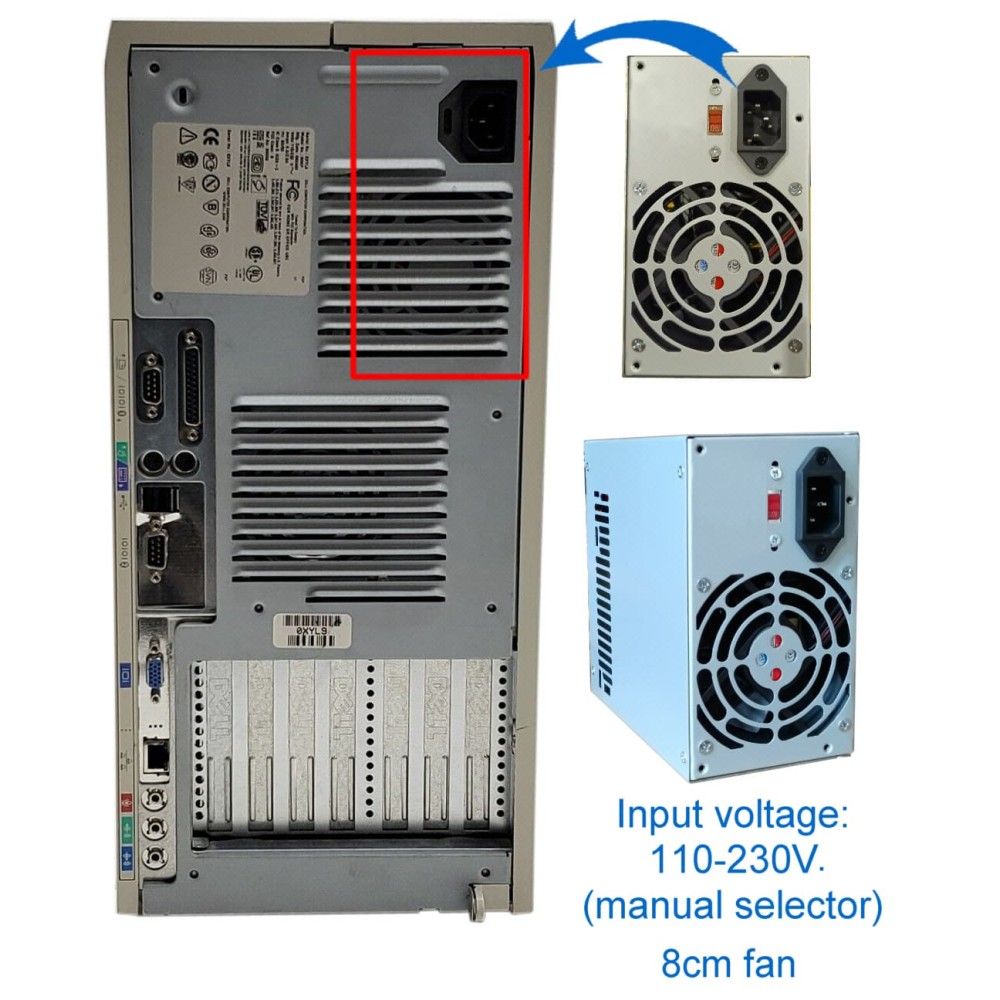

AC Input Full range 110-230V. Suitable worldwide with manual voltage selector. Do check settings before plugging the PSU into the Mains.
Power Output 300 Watt. The power output of our PSU may be higher than your original PSU. The higher the better. More power will guarantee a more stable system.
Form Factor Proprietary Dell. (This is NOT a standard ATX PSU)
Material Metal Casing
Colour Grey
Ventilation 1x 80mm fan.
Safety Standards RU, CSA, TUV, CE, BSMI, CCC, FCC

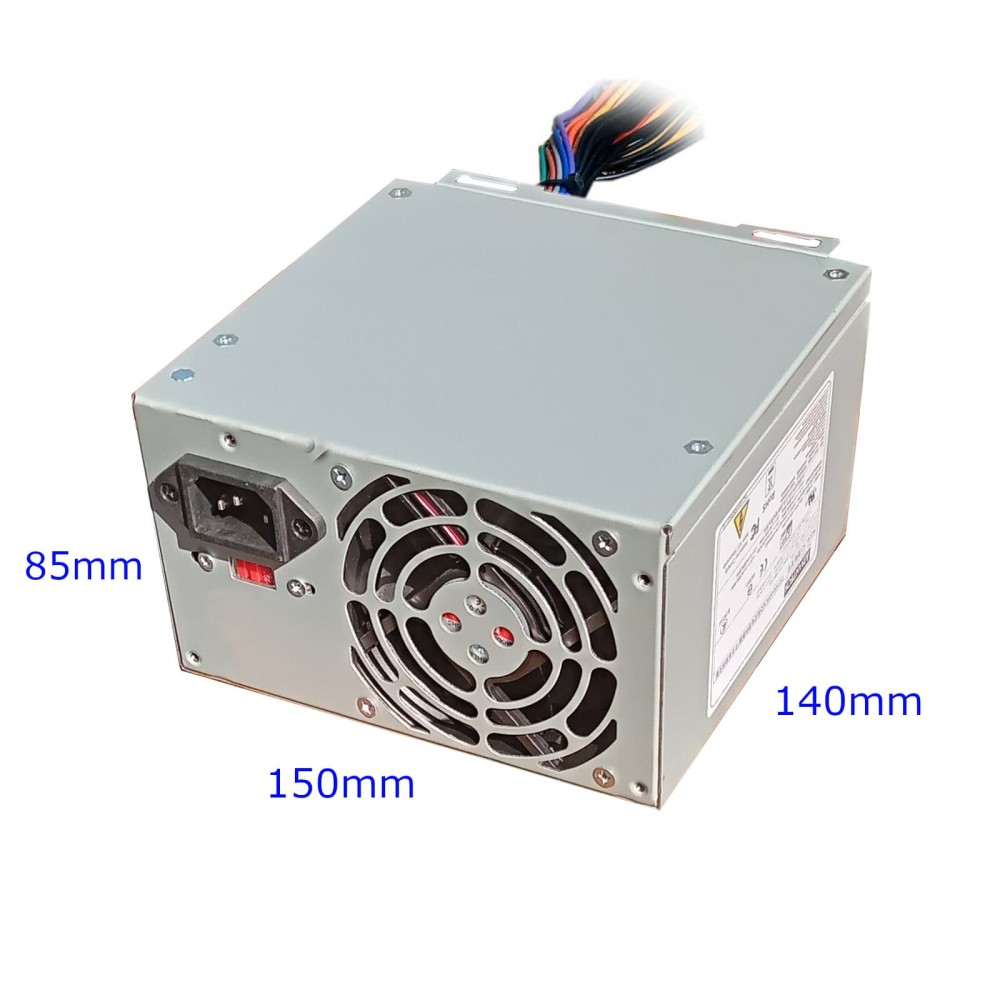

Product size & weight 8.5 x 14 x 15 cm / 3.35 x 5.51 x 5.9 inch / 1.3Kg

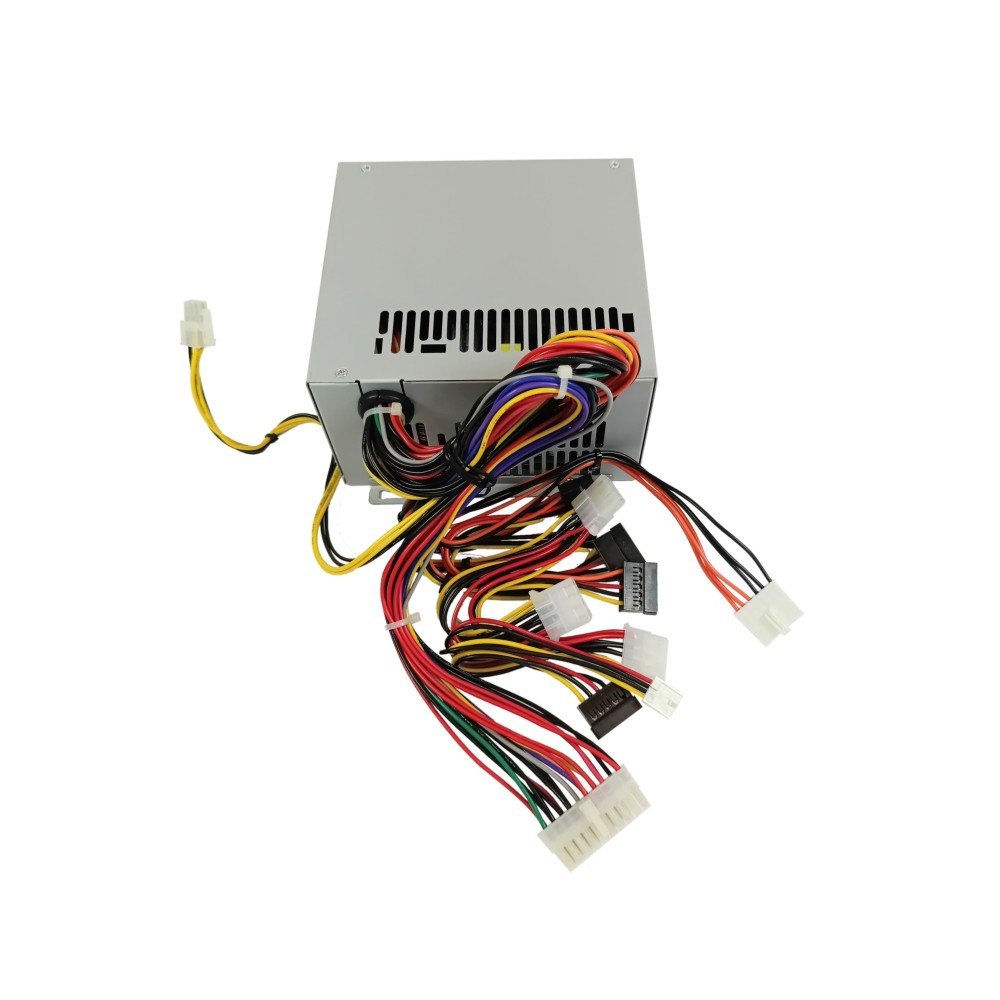

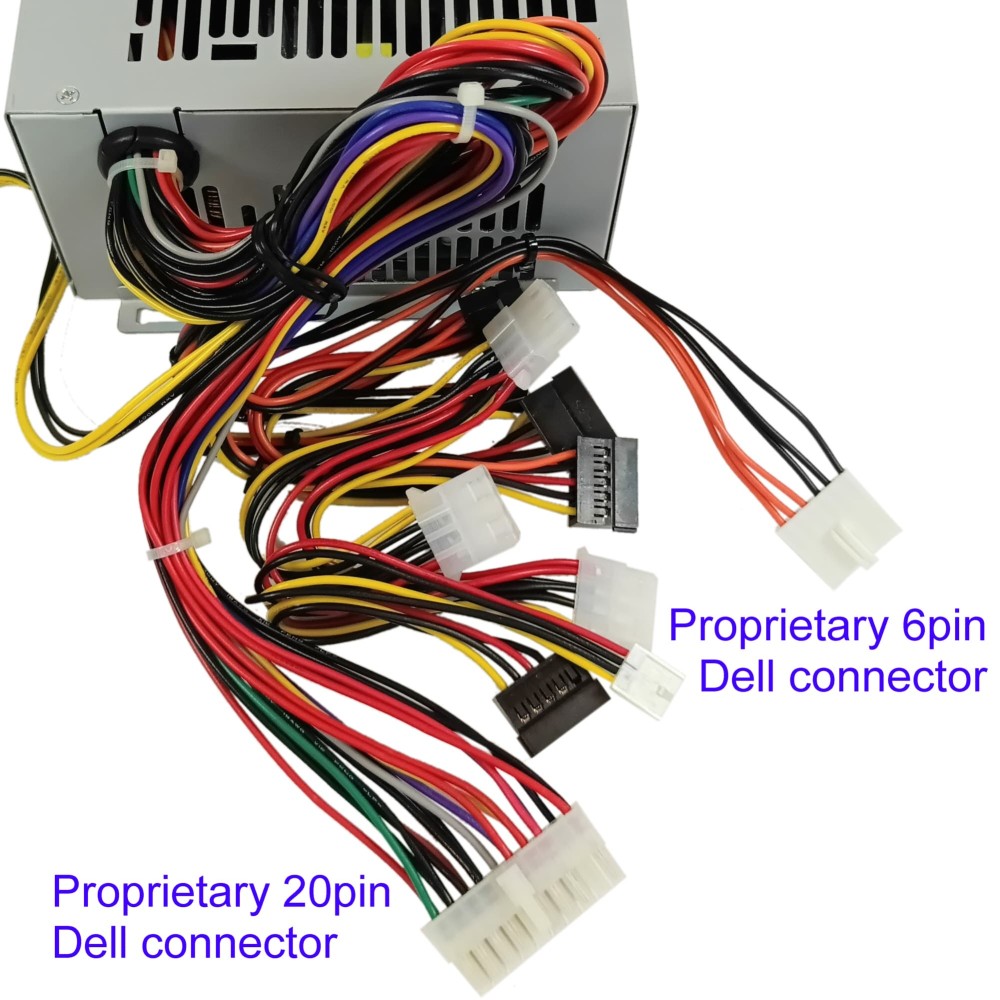

Connectors

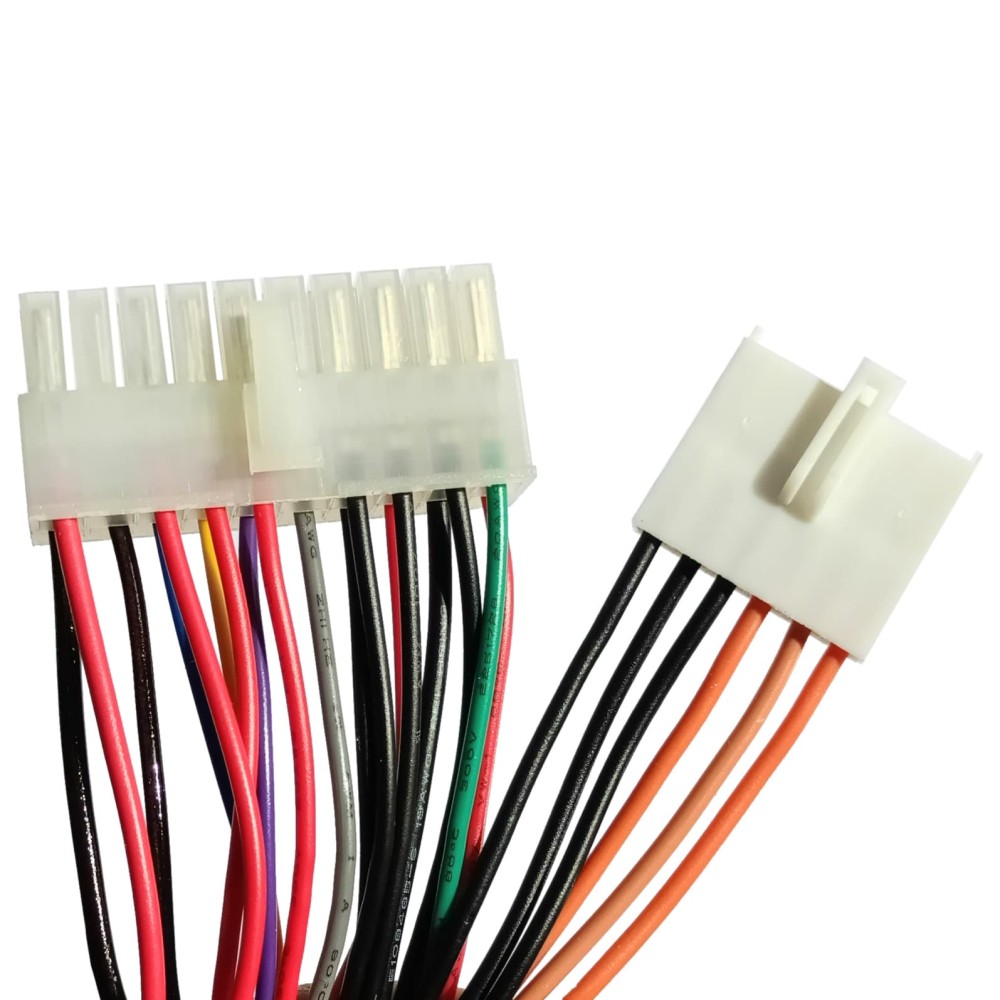

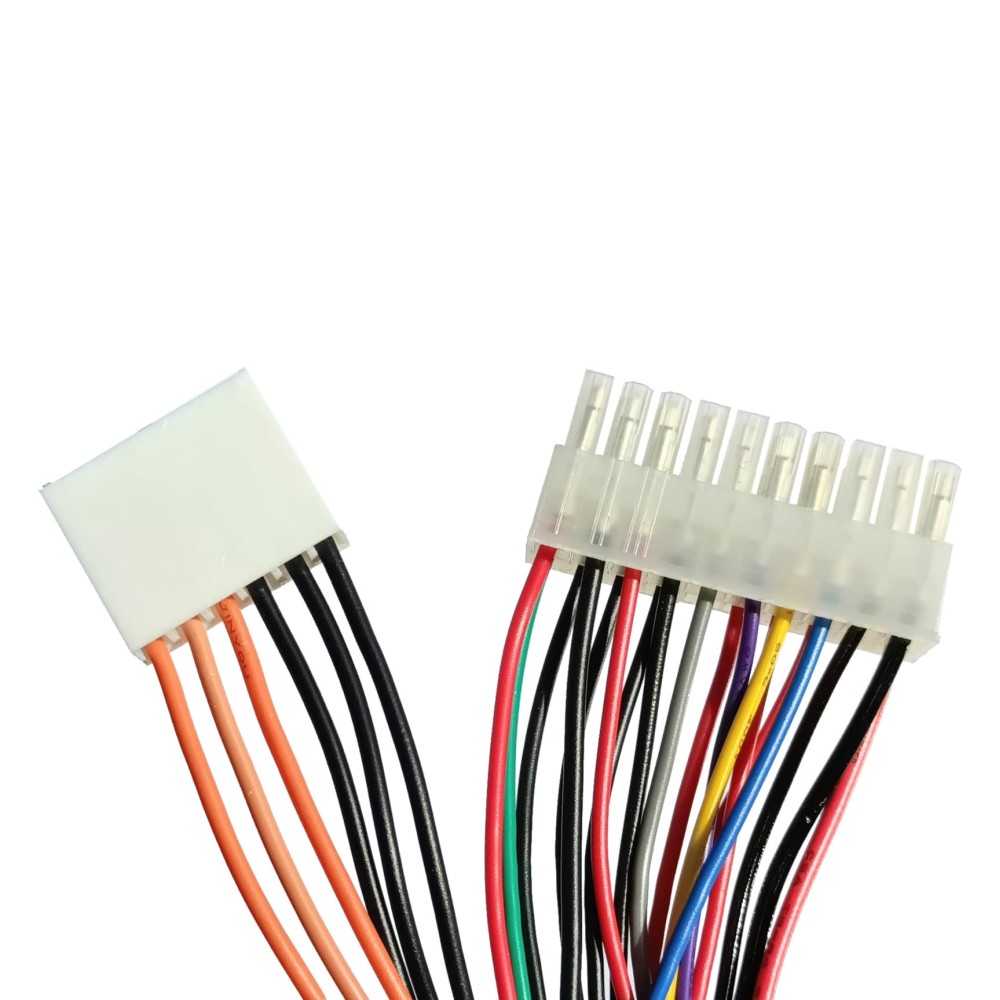

20/24-pin ATX 20-pin Dell Proprietary connector with unique pinout. Check your requirements, as this connector is NOT compatible with standard ATX systems.
Molex 4x Molex connectors. Order additional connectors if required.
SATA 4x SATA connectors. Order additional connectors if required.
Floppy (Berg) 1x Floppy Drive Berg connector.
4-pin CPU 1x 12volt 4pin Connector. Usually not required for the Dell systems listed, this connector can be ignored.
6 pin PCI-E Not included. Order this additional connector if required.
DC Output
+12V1 15A
+5V 30A
+3.3V 28A
+5Vsb 2A
-12V 0.8A
-5V 0.3A. This white wire is not present on all Dell PSUs. However, our PSU includes it in case your system requires it. If your system does not require it, leaving it is no harm.
More Info
Package size & weight 25 x 20 x 10 cm / 9.8 x 7.8 x 3.9 inch / 1.9g
Product Condition Brand new
Warranty 1 year standard warranty + 1 year FREE extended warranty = 2 year warranty.
Return Return accepted within 30 days if unwanted.
Made in China
Shipped from United Kingdom

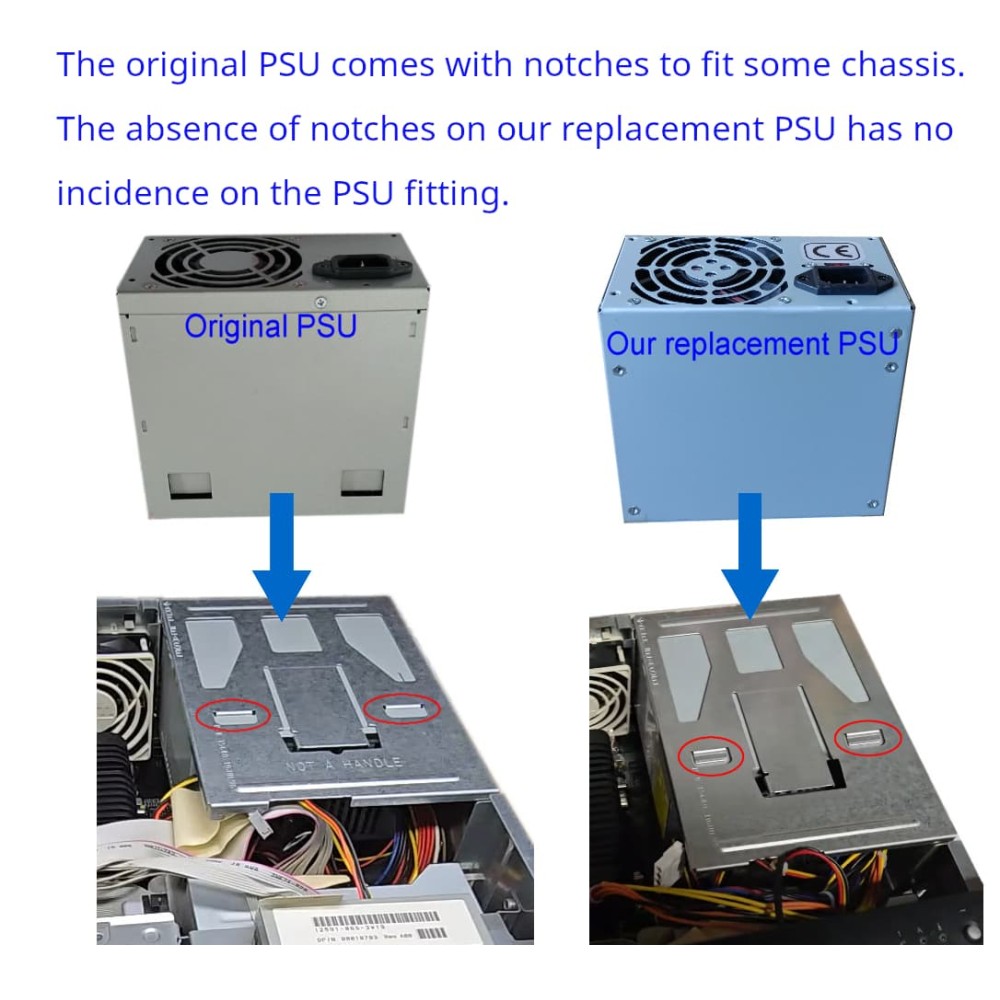

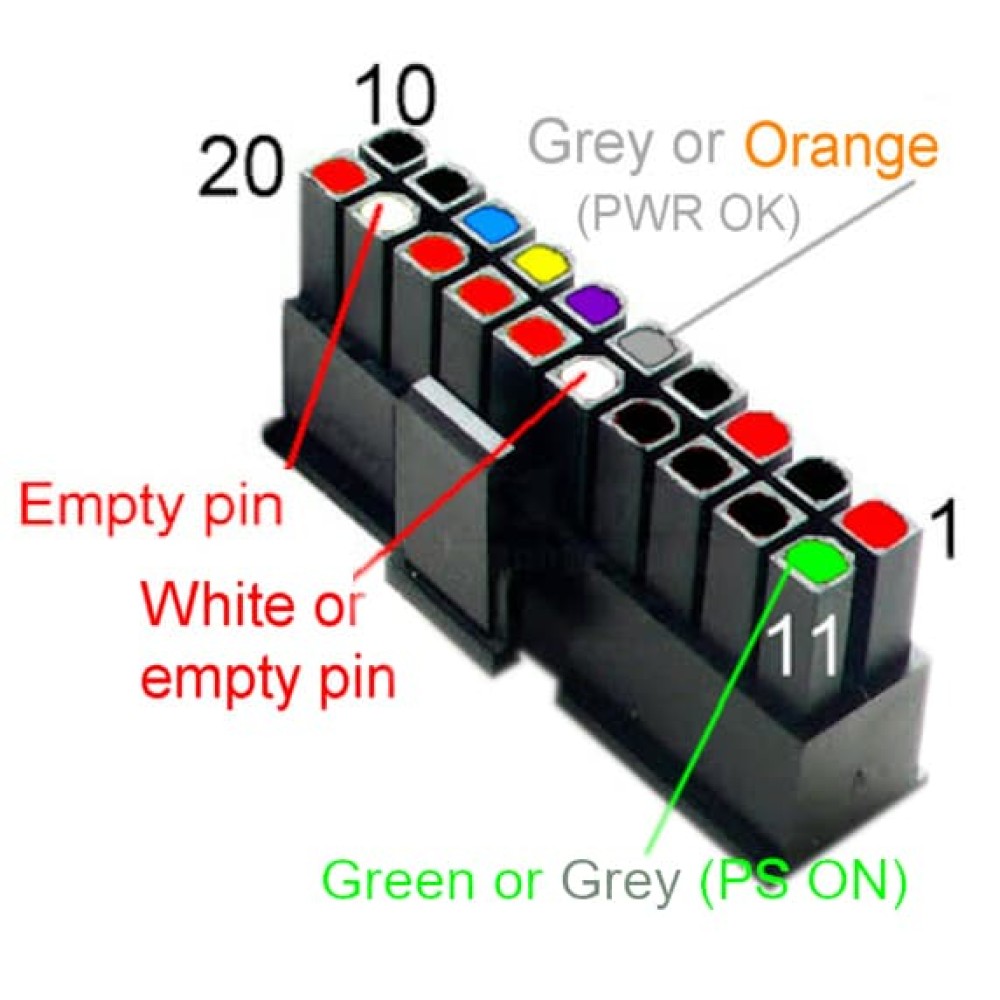

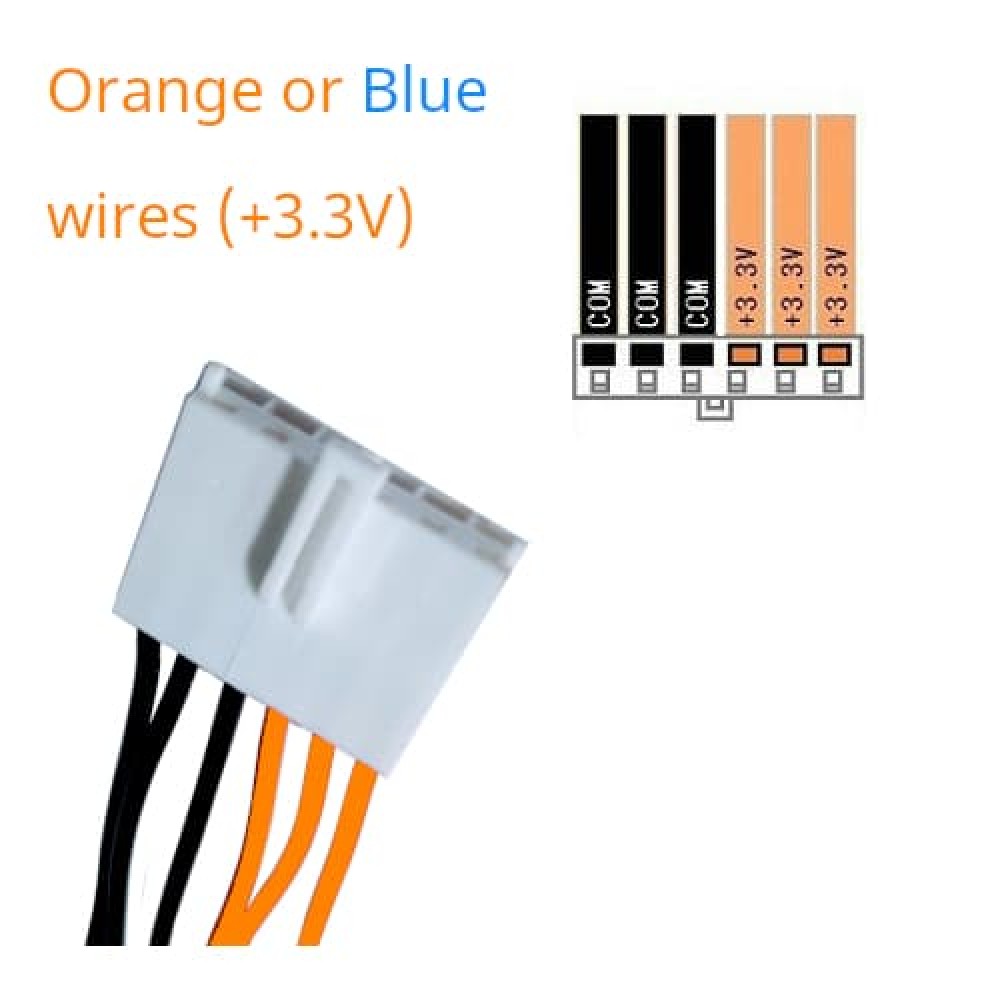

Remarks -The original PSU comes with 2 notches for fitting. Our PSU does not, but this does not affect the correct fitting of our PSU . -On the original PSU, 2 wires on the 20pin may have different colours. The “Power_OK” wire may be gray or orange and the “PC_ON” wire may be green or gray. This is fine as they carry the same current. On the 6pin flat connector, the +3.3V wires may be Orange or Blue.
