Proprietary 20-pin adaptor cable for Synology NAS

Synology 20-pin Adaptor

0 reviews Write a review
Brand:Vanda Trading
Product Code: 20-pin Synology Adaptor
Product available in stock : 12

  • £20.00

  • 2 or more £17.00
rightbanner
2 year warranty
on all new Power Supply Units
  • Free UK shipping:
    On ALL products
  • Fast shipping:
    Usually within 1 day
  • Worldwide shipping:
    Order from anywhere
  • 24/7 support:
    Contact us by E-mail
  • 100% satisfaction:
    30-day return policy
  • 2-year warranty:
    On ALL PSUs

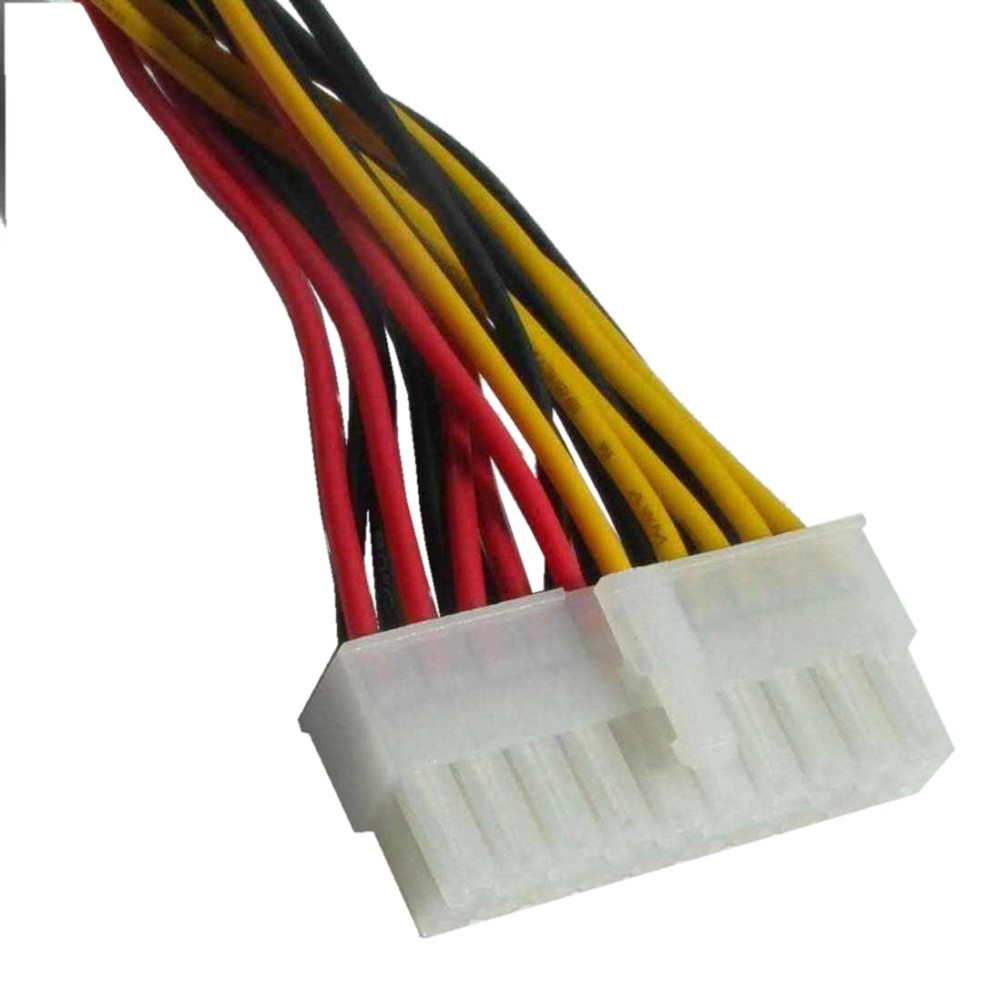

Synology 20-Pin Adaptor Cable SATA + 2x Molex to 20-Pin

This adaptor cable connects any standard ATX PSU to select Synology NAS systems that require a 20-pin proprietary power connector.

Compatible Systems
DS2411+ / DS3611xs
DS3612xs / DX1211
RS2211+ / RS2212+
RS2414+ / RS2416+*
RS3411XS / RS3412XS
RS3614XS / RS3617XS
RX1211 / RX1214
RX1217*
Any Standard PS2 ATX PSU

*RS2416+ and RX1217 do not take a PSU with a 12cm fan.

Key Features
SATA + 2x Molex to 20-PinStandard PSU connectors on one side, Synology's proprietary 20-pin on the other
22cm LengthDirect plug-in fit, no soldering or modification required
UL1007 18AWG WireQuality-rated cable construction
LightweightJust 46g, minimal cable bulk inside your case
Watch: Compatibility Video
Watch Synology 20-pin adaptor compatibility video Watch Compatibility Video
Check your connector requirements carefully. Some Synology NAS require a 12+8-pin connector instead of this 20-pin connector. If you're not sure which one your system needs, see our Synology 12-pin and 8-pin Adaptor or check the Compatibility List tab.
Not sure if this is the right adaptor? Use the Compatibility List tab to search for your model, or contact us with your old PSU model number and a photo — we're happy to help find the right match.
Technical Specifications

Full specifications for this product, verified against manufacturer data.

Specification
Material UL1007, 18AWG.
Product size & weight 22cm long / 46gr.
Connectors
Other Connectors 1x SATA & 2x Molex connector (PSU side), 20-pin connector (motherboard side).
More Info
Package size & weight 25x20x2cm / 90gr.
Product Condition Brand new.
Return Return within 30 days if unwanted.
Made in China.
Shipped from United Kingdom.
Remarks Check your Synology connector requirements. Some Synology NAS require a 12+8pin connectors instead of this 20pin connector. Check our store.
Need help confirming this is the right product for your system? Contact us with your existing part number or a photo and we will advise.
Synology 20-Pin Adaptor Compatibility List

Browse the PSU models this connector is found on, and the Synology machines this adaptor is suitable for. Use the search box to find your model instantly.

Found On These PSUs 4
  • PSU 400W_1
  • PSU 500W_1 (EAN: 4711174729272)
  • PSU 500W_2
  • PSU 500W_4
And more...
No matching PSUs found.
Compatible Synology Machines 14
  • DS2411+
  • DS3611xs
  • DS3612xs
  • DX1211
  • RS2211+
  • RS2212+
  • RS2414+
  • RS2416+ (does not take a PSU with a 12cm fan)
  • RS3411XS
  • RS3412XS
  • RS3614XS
  • RS3617XS
  • RX1211
  • RX1214
  • RX1217 (does not take a PSU with a 12cm fan)
And more...
No matching machines found.
Can't find your model? Used in conjunction with a standard PS2 ATX PSU. Some Synology NAS require a 12+8-pin connector instead of this 20-pin connector — check our Synology 12-pin and 8-pin Adaptor if unsure. Contact us with your PSU or NAS model number and a photo and we will confirm compatibility for you.
