| Brand: | Vanda Trading |
| Product Code: | Synology NAS PS2 500W PSU |

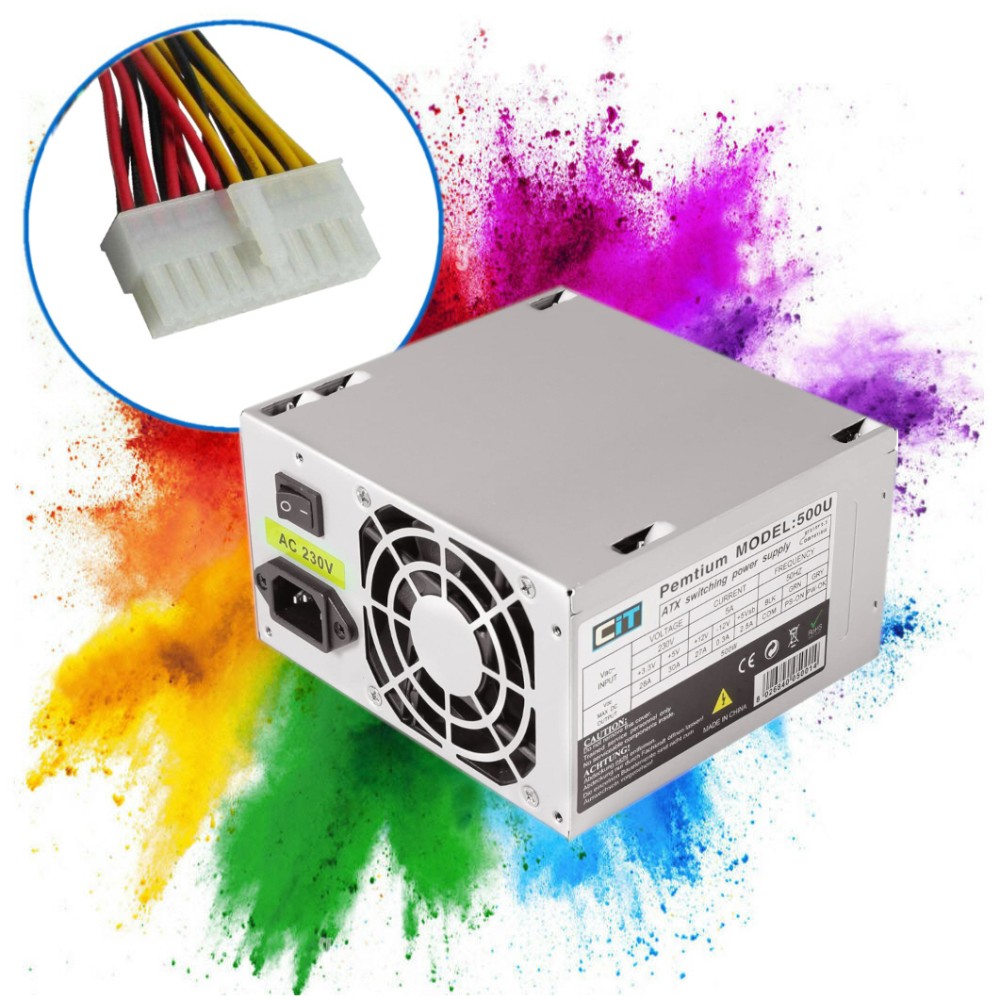

High-quality branded quiet 500W PSU suitable for a range of Synology NAS. Also suitable as a replacement for 400W units.
Full specifications for this product, verified against manufacturer data.
| Model Number | Synology NAS PS2 500W PSU |

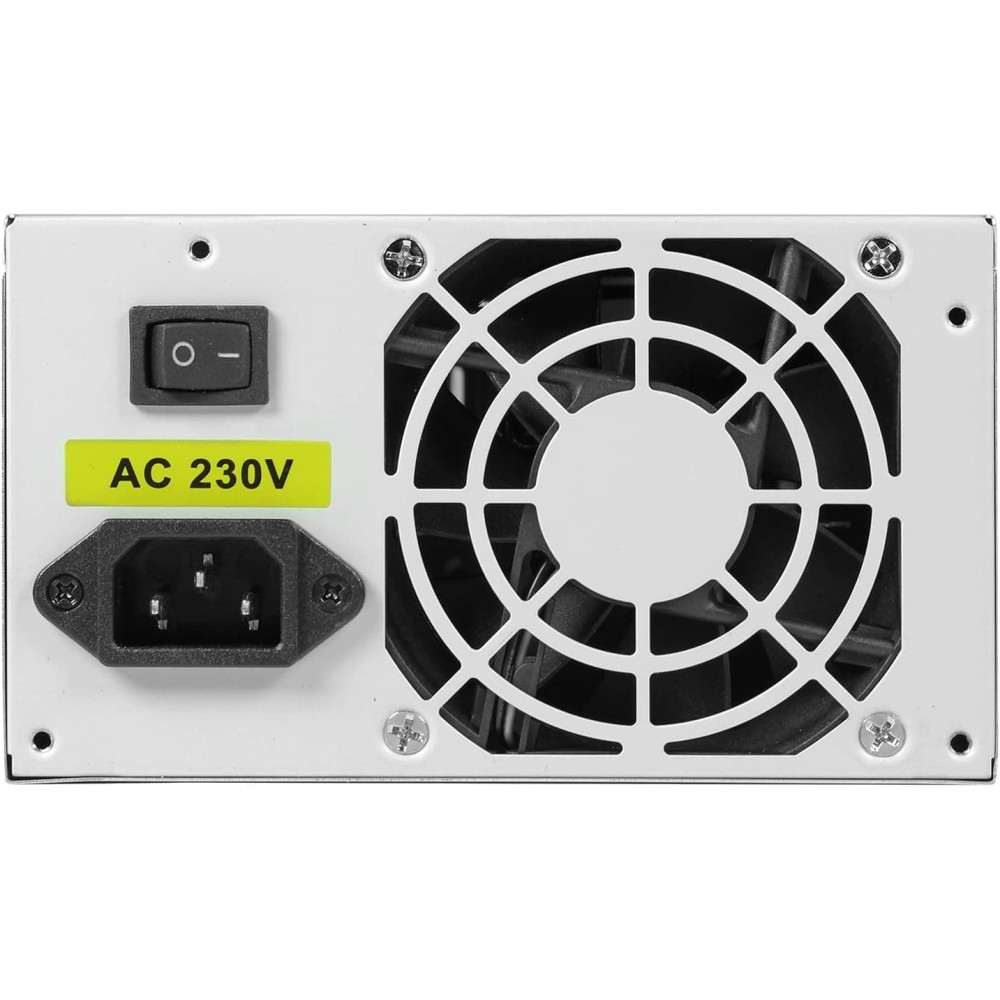

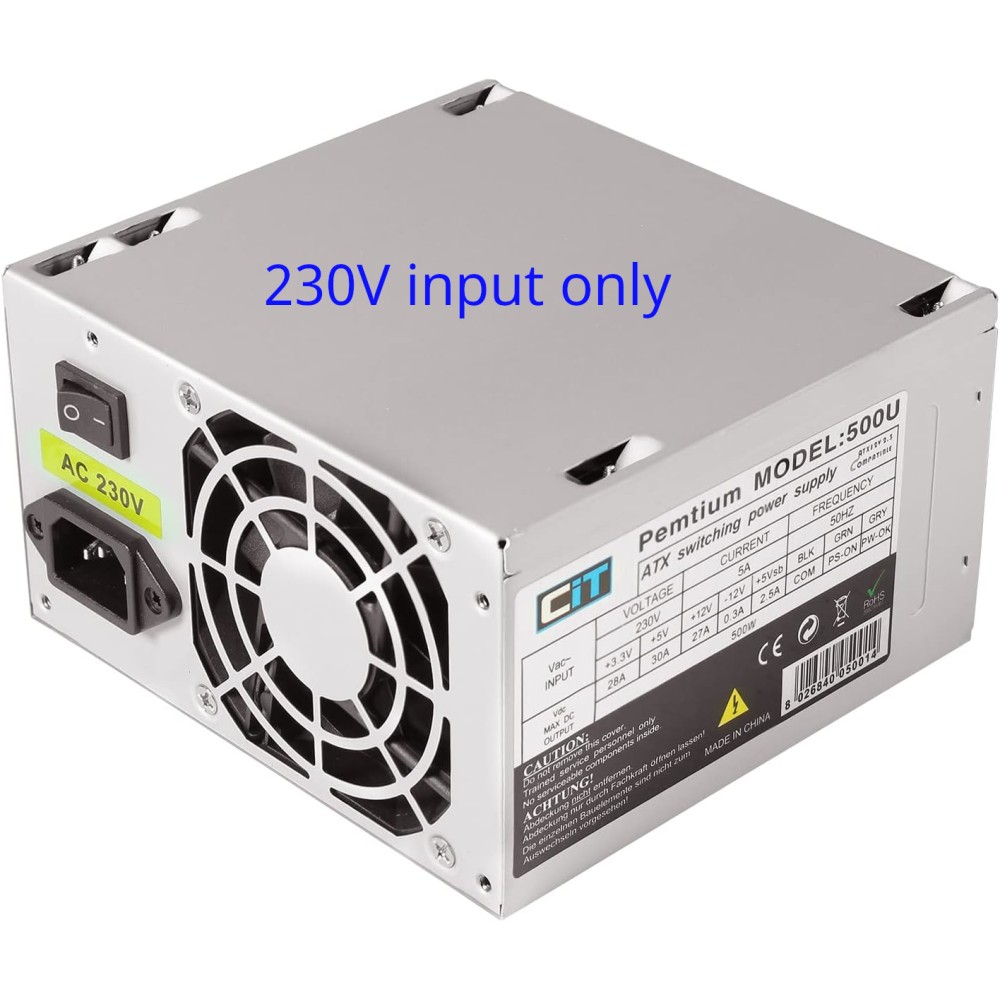

| AC Input | 230Volt. Only suitable in 230Volt input countries. |
| Power Output | 500 Watt |
| Form Factor | ATX |
| Material | Metal Casing |
| Colour | Silver |
| Ventilation | 1x 80mm fan. |

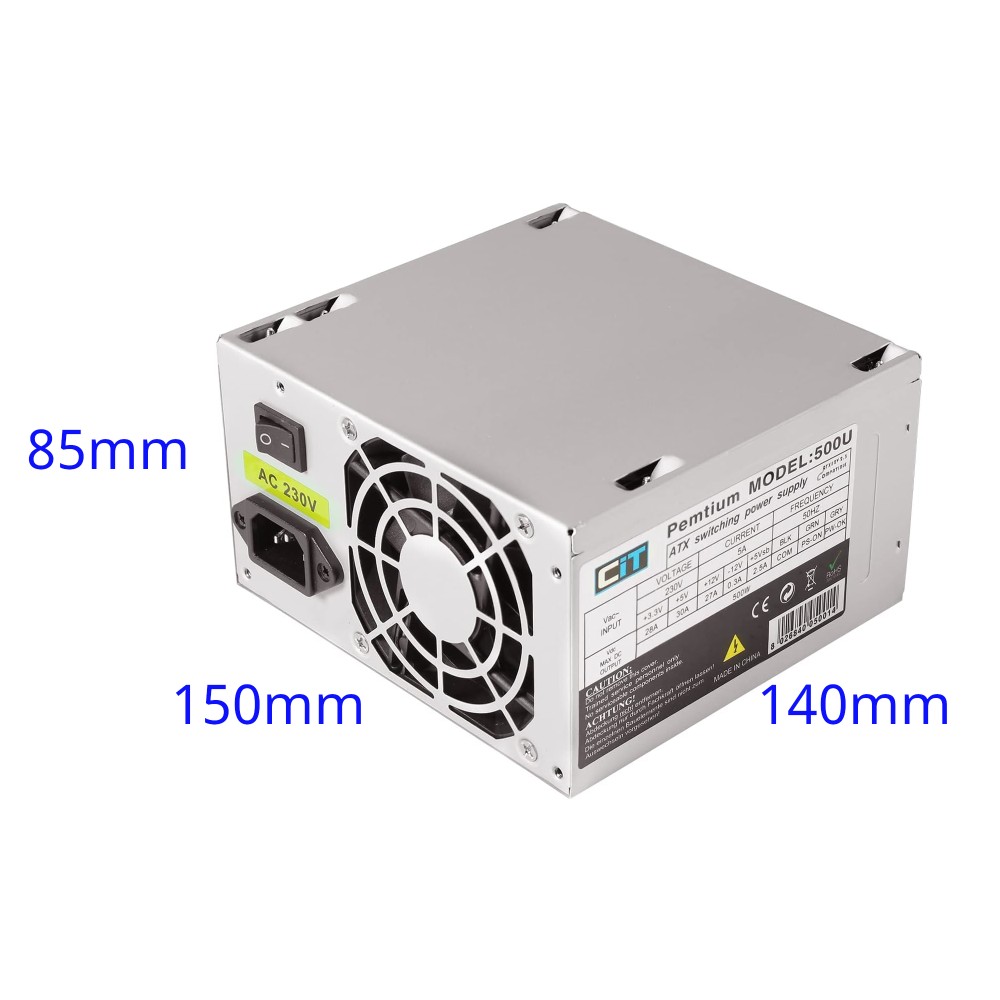

| Product size & weight | 8.5 x 15 x 14 cm / 3.3 x 5.9 x 5.5 inch / 0.8Kg |

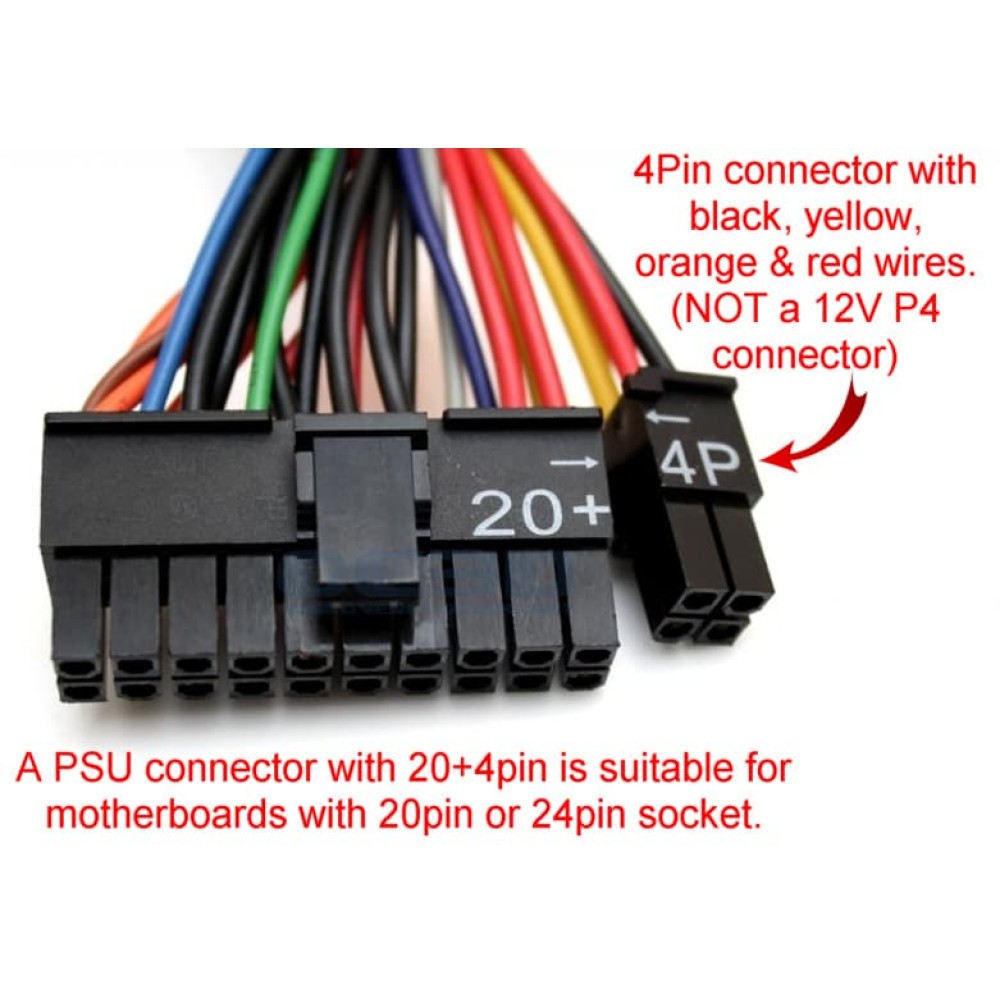

| 20/24-pin ATX | 20+4-pin main connector for the motherboard. |
| SATA | 2x SATA connectors. |
| Floppy (Berg) | 1x Floppy Drive Berg connector. (67cm long). |
| 8-pin (4+4) CPU | Order an 4-pin to 8-pin adaptor if required. |

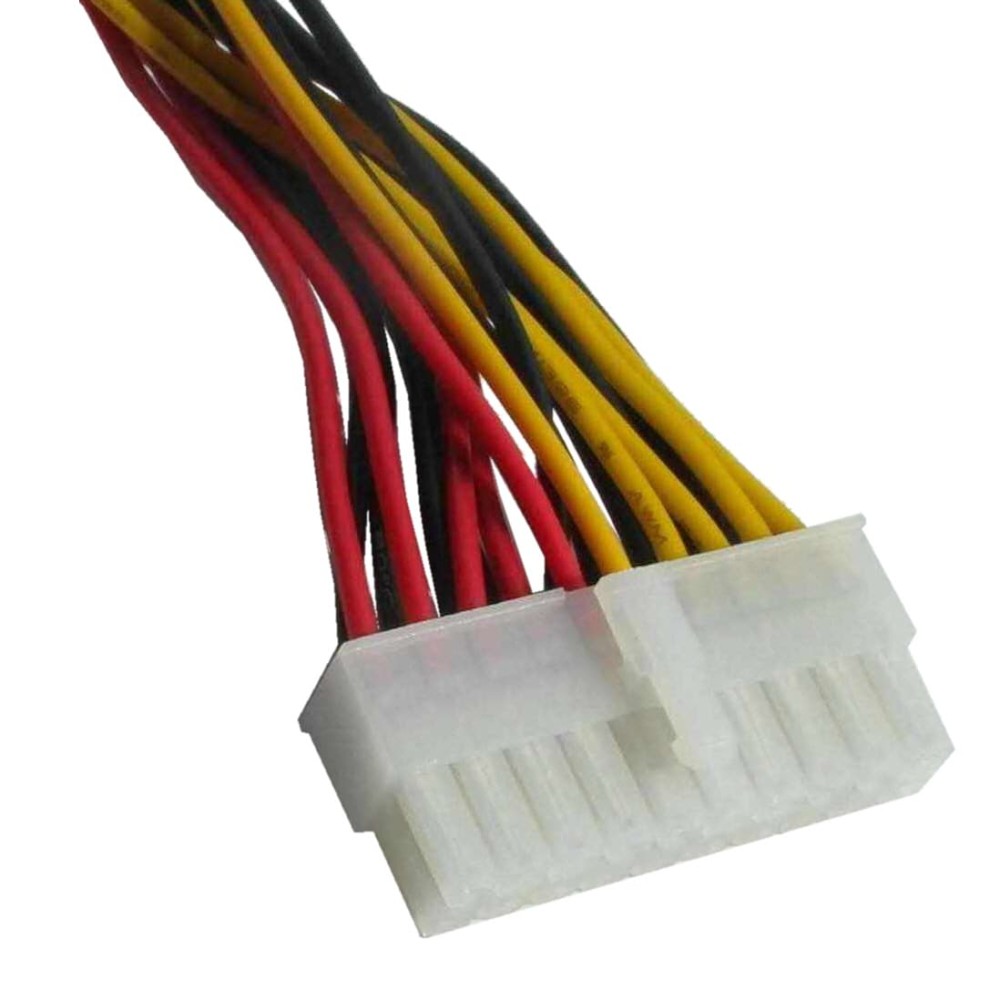

| Other Connectors | 1x 20 special Synology connector (Adapter) with yellow, red and black wires. |
| +12V1 | 27A |
| +5V | 30A |
| +3.3V | 28A |
| +5Vsb | 2.5A |
| -12V | 0.3A |
| Package size & weight | 30 x 20 x 10 cm / 11.8 x 7.8 c 3.9 inch / 1.2Kg |
| Product Condition | Brand new |
| Warranty | 1 year standard warranty + 1 year FREE extended warranty = 2 year warranty. |
| Return | Return accepted within 30 days if unwanted. |
| Made in | China |
| Shipped from | United Kingdom |
| Remarks | this 500Watt PSU is also suitable to replace 400W PSUs. |
Browse the PSU models this unit replaces, and the Synology NAS systems it is compatible with. Use the search box to find your model instantly.
